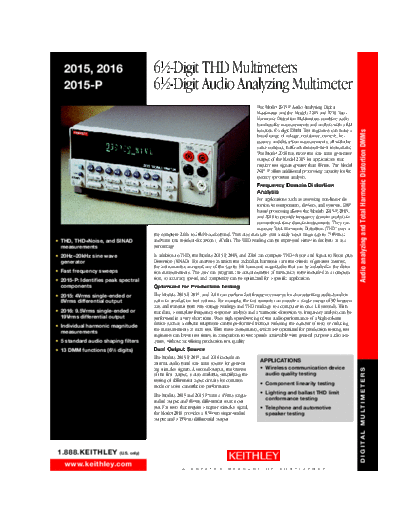

Image preview - the first page of the document
>> Download 363-3,0 documenatation <<
Text preview - extract from the document
2015, 2016 61/2-Digit THD Multimeters
2015-P 61/2-Digit Audio Analyzing Multimeter
The Model 2015-P Audio Analyzing Digital
Multimeter and the Models 2015 and 2016 Total
Harmonic Distortion Multimeters combine audio
band quality measurements and analysis with a full-
function 61/2-digit DMM. Test engineers can make a
Audio analyzing and Total Harmonic Distortion DMMs
broad range of voltage, resistance, current, fre-
quency, and distortion measurements, all with the
same compact, half-rack measurement instrument.
The Model 2016 has twice the sine wave generator
output of the Model 2015 for applications that
require test signals greater than 8Vrms. The Model
2015-P offers additional processing capacity for fre-
quency spectrum analysis.
Frequency Domain Distortion
Analysis
For applications such as assessing non-linear dis-
tortion in components, devices, and systems, DSP-
based processing allows the Models 2015-P, 2015,
and 2016 to provide frequency domain analysis in
conventional time domain instruments. They can
measure Total Harmonic Distortion (THD) over a
the complete 20Hz to 20kHz audio band. They also measure over a wide input range (up to 750Vrms)
