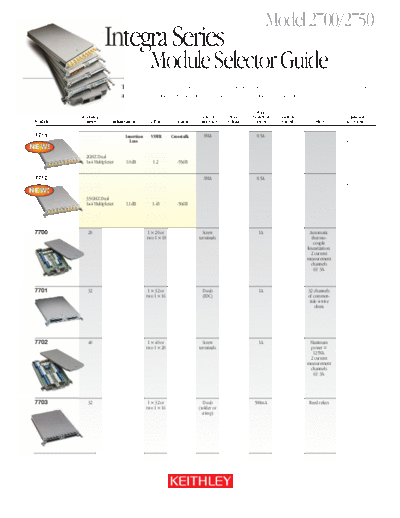

Image preview - the first page of the document
>> Download 6101-3,0 documenatation <<
Text preview - extract from the document
Model 2700/2750
Integra Series
Module Selector Guide
This selector guide may prove helpful in identifying the best module for a specific application. Install up to two modules
at a time in the Model 2700 mainframe or five at a time in the Model 2750 mainframe.
Max.
# Analog Type of Max. Switched Switch Optional
Module Inputs Configuration 2-Pole 4-pole Connector Voltage Current Speed Other Accessories
7711 Insertion VSWR Crosstalk SMA 60V 0.5A < 10 ms 7712-SMA-1
Loss S46-SMA-0.5, -1
NEW! 7712-SMA-N
7711-BNC-SMA
2GHZ Dual 7051-2, -5, -10
1x 4 Multiplexer 1.0dB 1.2 -55dB
7712 SMA 42V 0.5A < 10 ms 7712-SMA-1
S46-SMA-0.5, -1
NEW! 7712-SMA-N
3.5GHZ Dual
1x 4 Multiplexer 1.1dB 1.45 -50dB
