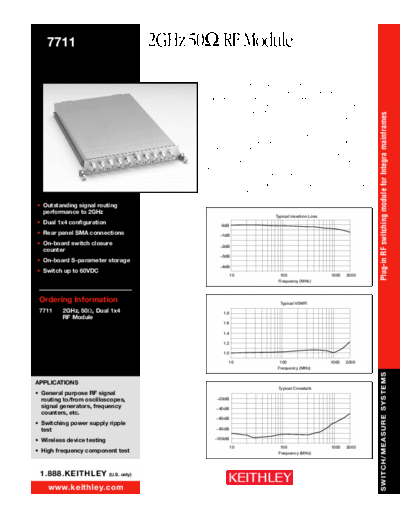

Image preview - the first page of the document
>> Download 9444-1,2 documenatation <<
Text preview - extract from the document
7711 2GHz 50 RF Module
The Model 7711 2GHz RF module is part of Keithley's Integra Series of flexible
measurement/control solutions. This new module is designed to plug into
either the two-slot Model 2700 or five-slot Model 2750 mainframe, adding RF
signal routing capability to the Integra Series' robust DC switch and measure-
ment performance. This module's outstanding low frequency performance
Plug-in RF switching module for Integra mainframes
and low cost make it useful for a wide variety of applications, including switch-
ing power supply ripple testing.
The Model 7711's outstanding high frequency performance and on-board
S-parameter storage make it ideal for routing RF signals to instrumentation
and devices with bandwidths up to 2GHz. Its addition to the Integra Series
allows users to build cost-effective, high performance hybrid DC/RF systems
simply and economically. Like every Integra Series module, the Model 7711
has on-board switch closure counters that can be used to track relay life, sim-
plifying preventative maintenance in production test applications.
For more information on other Integra Series products, including the Model
7712 3.5GHz RF Module, visit our web site at www.keithley.com.
