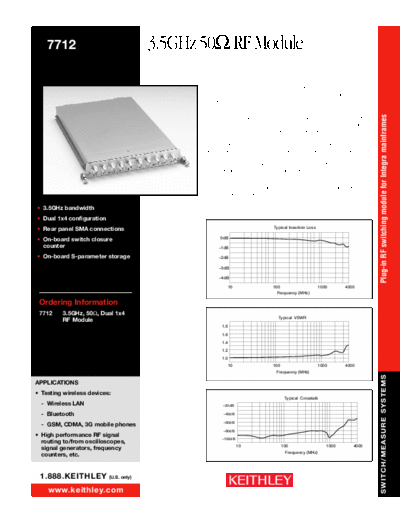

7712 3.5GHz 50 RF Module
The Model 7712 3.5GHz RF module is part of Keithley's Integra Series of flexi-
ble measurement/control solutions. It offers the industry's highest bandwidth
and best performance for RF signal routing in a tightly integrated switch/mea-
sure system.
Plug-in RF switching module for Integra mainframes
The Model 7712 module is compatible with either the two-slot Model 2700 or
five-slot Model 2750 mainframe, adding RF signal routing capability to the
Integra Series' robust DC switch and measurement performance. Its outstand-
ing high frequency signal routing performance allows users to build cost-effec-
tive, high performance hybrid DC/RF systems for testing the latest wireless
devices like wireless LANs, Bluetooth devices, and new mobile phone designs.
On-board switch closure counters track relay life to assist in preventive main-
tenance planning, while the on-board S-parameter storage simplifies calibra-
tion. Together, these features make the Model 7712 an ideal solution for pro-
duction test systems as well as R&D applications to 3.5GHz.
For more information on other Keithley products, including the Model 7711
2GHz RF Module or the System 46 RF/Microwave Switch (DC to 18GHz), visit
our web site at www.keithley.com.
