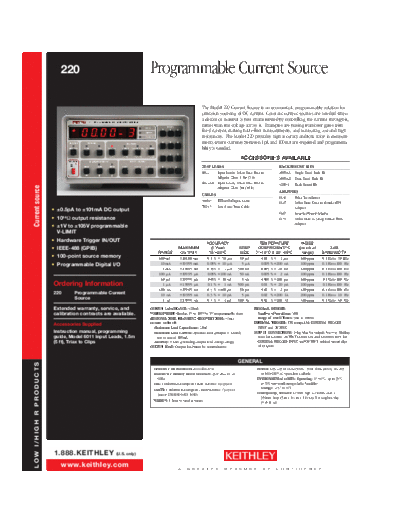

Image preview - the first page of the document
>> Download 220_DS documenatation <<
Text preview - extract from the document
220 Programmable Current Source
The Model 220 Current Source is an economical, programmable solution for
precision sourcing of DC current. Constant current sources are needed when
a device or material is best characterized by controlling the current through it,
rather than the voltage across it. Examples are biasing transistor gates with
fixed current, making hall effect measurements, and measuring low and high
resistances. The Model 220 provides high accuracy and low noise in measure-
ments where currents between 1pA and 100mA are required and programma-
bility is needed.
ACCESSORIES AVAILABLE
TEST LEADS RACK MOUNT KITS
6011 Input Leads, 2-Slot Male Triax to 1019A-1 Single Fixed Rack Kit
Alligator Clips, 1.5m (5 ft) 1019A-2 Dual Fixed Rack Kit
6011-10 Input Leads, 2-Slot Male Triax to 4288-4 Rack Mount Kit
Current source
Alligator Clips, 3m (10 ft)
ADAPTERS
CABLES 6146 Triax Tee Adapter
7008-* IEEE-488 Digital Cable
6147 2-Slot Male Triax to Female BNC
7024-* Low Noise Triax Cable Adapter
