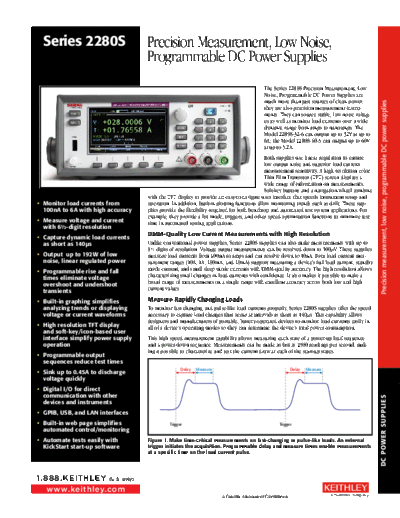

Image preview - the first page of the document
>> Download 2280S DataSheet documenatation <<
Text preview - extract from the document
Series 2280S Precision Measurement, Low Noise,
Programmable DC Power Supplies
The Series 2280S Precision Measurement, Low
Noise, Programmable DC Power Supplies are
much more than just sources of clean power;
Precision measurement, low noise, programmable DC power supplies
Precision measurement, low noise, programmable DC power supplies
they are also precision measurement instru-
ments. They can source stable, low noise voltag-
es as well as monitor load currents over a wide
dynamic range from amps to nanoamps. The
Model 2280S-32-6 can output up to 32V at up to
6A; the Model 2280S-60-3 can output up to 60V
at up to 3.2A.
Both supplies use linear regulation to ensure
low output noise and superior load current
measurement sensitivity. A high resolution color
Thin Film Transistor (TFT) screen displays a
wide range of information on measurements.
Soft-key buttons and a navigation wheel combine
with the TFT display to provide an easy-to-navigate user interface that speeds instrument setup and
