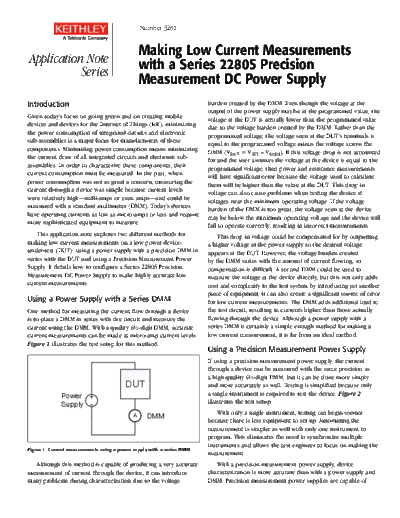

2280S Low Current AppNote


>> Download 2280S Low Current AppNote documenatation <<

Text preview - extract from the document
                                                Number 3281


                                                Making Low Current Measurements
Application Note                                with a Series 2280S Precision
           Series
                                                Measurement DC Power Supply
Introduction                                                            burden created by the DMM. Even though the voltage at the
                                                                        output of the power supply may be at the programmed value, the
Given today's focus on going green and on creating mobile               voltage at the DUT is actually lower than the programmed value
devices and devices for the Internet of Things (IoT), minimizing        due to the voltage burden created by the DMM. Rather than the
the power consumption of integrated circuits and electronic             programmed voltage, the voltage seen at the DUT's terminals is
sub-assemblies is a major focus for manufacturers of these              equal to the programmed voltage minus the voltage across the
components. Minimizing power consumption means minimizing               DMM (V DUT = VSET
