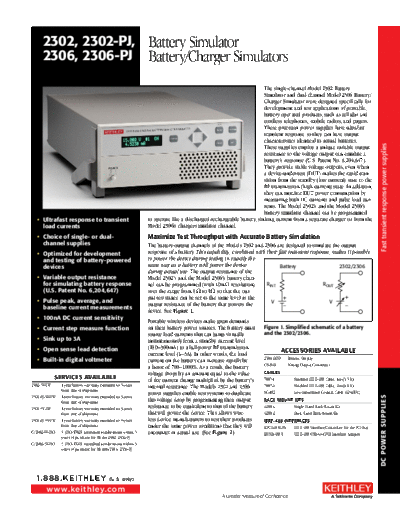

Image preview - the first page of the document
>> Download 2302-2306 documenatation <<
Text preview - extract from the document
2302, 2302-PJ, Battery Simulator
2306, 2306-PJ Battery/Charger Simulators
The single-channel Model 2302 Battery
Simulator and dual-channel Model 2306 Battery/
Charger Simulator were designed specifically for
development and test applications of portable,
battery-operated products, such as cellular and
cordless telephones, mobile radios, and pagers .
These precision power supplies have ultrafast
transient response so they can have output
characteristics identical to actual batteries .
Fast transient response power supplies
Fast transient response power supplies
These supplies employ a unique variable output
resistance so the voltage output can emulate a
battery's response (U .S . Patent No . 6,204,647) .
They provide stable voltage outputs, even when
a device-under-test (DUT) makes the rapid tran-
sition from the standby (low current) state to the
RF transmission (high current) state . In addition,
they can monitor DUT power consumption by
measuring both DC currents and pulse load cur-
rents . The Model 2302's and the Model 2306's
battery-simulator channel can be programmed
