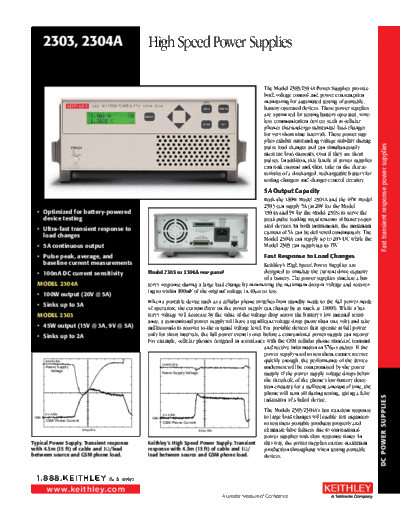

Image preview - the first page of the document
>> Download 2303-2304A documenatation <<
Text preview - extract from the document
2303, 2304a High Speed Power Supplies
The Model 2303/2304A Power Supplies provide
both voltage control and power consumption
monitoring for automated testing of portable,
battery-operated devices . These power supplies
are optimized for testing battery-operated, wire-
less communication devices such as cellular
phones that undergo substantial load changes
for very short time intervals . These power sup-
plies exhibit outstanding voltage stability during
Fast transient response power supplies
Fast transient response power supplies
pulse load changes and can simultaneously
measure load currents, even if they are short
pulses . In addition, this family of power supplies
can sink current and, thus, take on the charac-
teristics of a discharged, rechargeable battery for
testing chargers and charger-control circuitry .
5a output Capacity
Both the 100W Model 2304A and the 45W Model
2303 can supply 5A (at 20V for the Model
