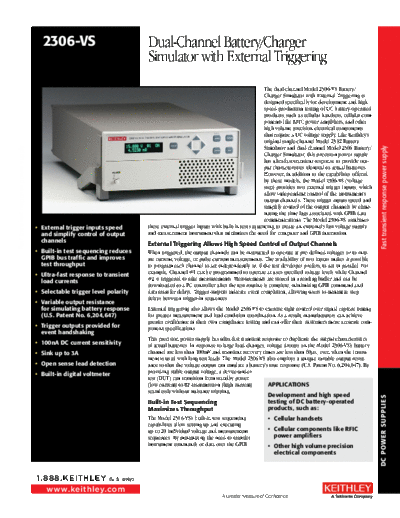

Image preview - the first page of the document
>> Download 2306-VS documenatation <<
Text preview - extract from the document
2306-Vs Dual-Channel Battery/Charger
Simulator with External Triggering
The dual-channel Model 2306-VS Battery/
Charger Simulator with External Triggering is
designed specifically for development and high
speed production testing of DC battery-operated
products, such as cellular handsets, cellular com-
ponents like RFIC power amplifiers, and other
high volume precision electrical components
that require a DC voltage supply . Like Keithley's
original single-channel Model 2302 Battery
Simulator and dual-channel Model 2306 Battery/
Fast transient response power supply
Fast transient response power supply
Charger Simulator, this precision power supply
has ultra-fast transient response to provide out-
put characteristics identical to actual batteries .
However, in addition to the capabilities offered
by these models, the Model 2306-VS (voltage
step) provides two external trigger inputs, which
allow independent control of the instrument's
output channels . These trigger inputs speed and
simplify control of the output channels by elimi-
nating the time lags associated with GPIB data
communications . The Model 2306-VS combines
