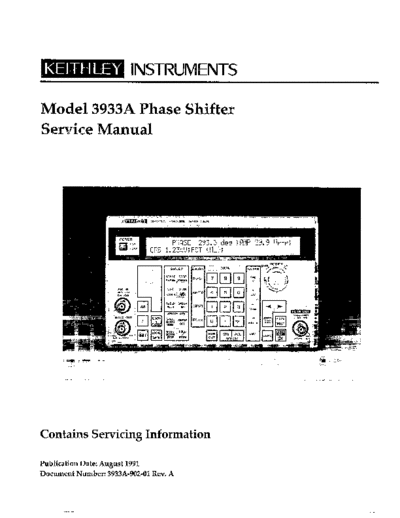

Image preview - the first page of the document
>> Download 3933A_902_01A documenatation <<
Text preview - extract from the document
ase ifte
ice
ontains Servicing Information
Publication Date: August 1991
Document Number: 3933A-902-01 Rev. A
WARRANTY
Keithley Instruments, Inc. warrants this product to be free from defects in material and workmanship for a
period of 1 year from date of shipment.
Keithley Instruments, Inc. warrants the following items for 90 days from the date of shipment: probes, cables,
rechargeable batteries, diskettes, and documentation.
During the warranty period, we will, at our option, either repair or replace any product that proves to be de-
fective.
To exercise this warranty, write or call your local Keithley representative, or contact Keithley headquarters in
Cleveland, Ohio. You will be given prompt assistance and return instructions. Send the product, transporta-
tion prepaid, to the indicated service facility. Repairs will be made and the product returned, transportation
prepaid. Repaired or replaced products are warranted for the balance of the original warranty period, or at
least 90 days.
LIMITATION OF WARRANTY
This warranty does not apply to defects resulting from product modification without Keithley's express writ-
ten consent, or misuse of any product or part. This warranty also does not apply to fuses, software, non-re-
chargeable batteries, damage from battery leakage, or problems arising from normal wear or failure to follow
instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANT IES, EXPRESSEDOR IMPLIED, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. THE
REMEDIES PROVIDED HEREIN ARE BUYERS SOLE AND EXCLUSIVE REMEDIES.
NEITHER KEITHLEY INSTRUMENTS, INC. NOR ANY OF ITS EMPLOYEES SHALL BE LIABLE FOR
ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF ITS INSTRUMENTS AND SOFTWARE EVEN IF KEITHLEY INSTRUMENTS, INC., HAS
BEEN ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH' DAMAGES. SUCH EXCLUDED DAM-
AGES SHALL INCLUDE, BUT ARE NOT LIMITED TO: COSTS OF REMOVAL AND INSTALLATION,
LOSSESSUSTAINED AS THE RESULT OF INJURY TO ANY PERSON, OR DAMAGE TO PROPERTY.
Instruments Division, Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 (216) 248-0400 Fax: 248-6168
l l l l
WEST GERMANY: Keithley Instruments GmbH l Heiglhofstr. 5 l Munchen 70 l OSY-7IOOZ-O l Telex 52-12160 l Fax: 089-7100259
GREAT BRITAIN: Keithley Instruments, Ltd. . The Miner l 58, Portman Road l Reading, Lkerkshire RG 3 IEA l 01144 734 575 666 l Fax: 01144 734 596 469
FRANCE Keitbley Instruments SARL l 3 Allee des Garays l B.P. 60 l 91lZ4 Palalseau/Z.L l 1-6-0115 155 l Telex: 600 933 l Fax I-6-0117726
NEIXERLANDS: Keithley Instruments BV . Avelingen West 49 l 4202 MS Gorinchem l P.O. Box 559 l 4200 AN Gorinchem .0X+30-35333 l Telex 24 684 l Fax 01830-30821
SWITZERLAND: Keitbley Instruments SA . Kriesbachstr. 4 l 8600 Dubendorf l 01-821-9444 l T&x 828 472. Fax: 0222-315366
AUSTRIA: Keitbley Instruments GesmbH . Rosenhugelshasse 12 l A-1120 Vienna l (027.2) 84 65 45. Telex: I31677 l Fax: (0222) 8403597
ITALY: Keithley Instruments SRL l Vi&S. Gimignano 4/A. 20146 Milano. 02-4120360 or 02-4156540 l Fax: 02-4121249
Service Manual
Model 3933A
Phase Shifter
01991, Keithley Instruments, Inc.
All Rights Reserved
Instruments Division
Cleveland, Ohio, U. S. A.
Document Number: 3933A-902-01
All Keithley product names are trademarks or registered trademarks qf Keithley Instruments, Inc.
Other brand and product names are trademarks or registeredLtrademarks of their respective holders.
r. . *
Safety Precautions
The following safety precautions should be observed before using the Model 3933A Phase Shifter and any associated
instruments.
This instrument is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety
precautions required to avoid possible injury. Read over this manual carefully before using the instrument.
Exercise extreme caution when a shock hazard is present at the test circuit. The American National Standards Institute
(ANSI) states that a shock hazard exists when voltage levels greater than 30V rms or 42.4V peak are present. A good
safety practice is to expect that hazardous voltage is present in any unknown circuit before measuring.
Inspect the connecting cables and test leads for possible wear, cracks, or breaks before each use.
For maximum safety, do not touch the test cables or any instruments while power is applied to the circuit under test.
Turn off the power and discharge any capacitors before connecting or disconnecting cables from the instrument.
Do not touch any object which could provide a current path to the common side of the circuit under test or power line
(earth) ground. Always make measurements with dry hands while standing on a dry, insulated surface capable of with-
standing the voltage being measured.
Instrumentation and accessories should not be connected to humans.
HOW TO USE THIS MANUAL
Details procedures to verify that the instrument meets
stated specifications.
SECTION 1
Performance Verification
Describes basic operating principles for the various circuits in
the Model 3933A.
SECTION 2
Principles of Operation
Covers fuse replacement, calibration and repair of the instru-
ment, and lists replacement parts.
SECTION 3
Service Information
WARNING
The information in this manual is intended for qualified serv-
ice personnel who can recognize possible shock hazards. Do
not attempt these procedures unless you are qualified to do so.
Table of Contents
SECTION 1 - Performance Verification
1.1 INTRODUCTION .............................................................. l-l
1.2 ENVIRONMENTAL CONDITIONS ................................................ l-l
1.3 INITIAL CONDITIONS ......................................................... l-l
1.4 LINEPOWER ................................................................. l-l
1.5 RECOMMENDED TEST EQUIPMENT .............................................. l-l
1.6 VERIFICATION PROCEDURES ................................................... 1-2
1.6.1 SynthesizerConnections ....................................................... 1-2
1.6.2 Frequency and Duty Cycle Accuracy .............................................. l-3
1.6.3 Amplitude Accuracy .......................................................... 1-4
1.6.4 FrequencyResponse(Sine) ..................................................... 1-6
1.6.5 Frequency Response (Triangle, Sawtooth, Square) .................................... 1-8
1.6.6 Total Harmonic Distortion ..................................................... 1-9
1.6.7. DCVoltageAccuracy ......................................................... l-10
1.6.8 DC Level (Square) and DC Offset Error (Sine) ....................................... l-10
1.6.9 RiseandFallTimes ........................................................... l-10
SECTION 2 - Principles of Operation
2.1 INTRODUCTION. ............................................................. 2-l
2.2 BLOCKDIAGRAM ............................................................ 2-l
2.2.1 Control Section .............................................................. 2-1
2.2.2 Display and Keyboard Section ................................................... 2-l
2.2.3 Phase Shift Section ........................................................... 2-l
2.2.4 Analog Section .............................................................. 2-1
2.2.5 PowerSupplySection ......................................................... 2-3
2.3 ANALOG CIRCUIT DESCRIPTION ................................................. 2-3
2.3.1 Analog Section Block Diagram .................................................. 2-3
2.3.2 D/A Converter .............................................................. 2-3
2.3.3 Square Wave Generator ....................................................... 2-3
2.3.4 AmplitudeModulation ........................................................ 2-3
2.3.5 Amplitude and DC Offset Control ................................................ 2-3
2.4 MULTIPHASE OSCILLATOR OPERATION .......................................... 2-3
SECTION 3 - Service Information
3.1 INTRODUCTION .............................................................. 3-1
3.2 LINE FUSE REPLACEMENT ..................................................... 3-1
3.3 CALIBRATION ............................................................... 3-1
3.3.1 Environmental Conditions ..................................................... 3-2
3.3.2 Initial Conditions ............................................................ 3-2
3.3.3 LinePower ................................................................. 3-2
3.3.4 Recommended Calibration Equipment ............................................ 3-2
s .I .,
3.3.5 CoverRemoval ........... ..; ......... ......................................... 3-3
3.3.6 CalibrationAdjustments ....................................................... 3-3
3.3.7 Function Synthesizer Connections ................................................ 3-5
3.3.8 CalibrationProcedures ........................................................ 3-5
3.3.9 Cover Replacement ........................................................... 3-8
3.4 FANFILTERCLEANING ........................................................ 3-9
3.5 FCTNOUTJUMPER ........................................................... 3-9
3.6 RECHARGEABLE BATTERY REPLACEMENT ........................................ 3-9
3.7 REPAIR ..................................................................... 3-9
3.7.1 Factory Service ............................................................... 3-9
3.7.2 Power Supply Test Points ...................................................... 3-10
3.7.3 Board-levelRepair ........................................................... 3-10
3.8 REPLACEABLEPARTS ......................................................... 3-10
3.8.1 PartsList .................................................................. 3-10
3.8.2 Ordering Parts .............................................................. 3-10
APPENDICES
A Typical Data
B Model 3933A Specifications
List of Illustrations
SECTION I- Performance Verification
Figure l-1 Connections Between Model 3933A and Model 3930A Multifunction Synthesizer ......... l-2
Figure l-2 Connections to Timer/Counter ............................................... l-3
Figure l-3 Connections to Model 197A DMM ............................................ 1-4
Figure l-4 Connections to Wideband AC DVM ........................................... 1-6
Figure l-5 Connections to Audio Analyzer .............................................. 1-9
SECTION 2 - Principles of Operation
Figure 2-1 Overall Block Diagram ..................................................... 2-2
Figure 2-2 Analog Section Block Diagram ............................................... 2-4
Figure 2-3 Multiphase Oscillator Block Diagram .......................................... 2-5
SECTION 3 - Service Information
Figure 3-l Cover Removal ........................................................... 3-3
Figure 3-2 Analog Board (NE-21022) Calibration Adjustments ................................ 3-4
Figure 3-3 Function Synthesizer Connections ............................................. 3-5
Figure 3-4 Connections to Model 197A DMM ............................................ 3-5
Figure 3-5 Second Model 3930A Connections ............................................. 3-6
Figure 3-6 Connections to PM6654C Counter ............................................. 3-7
Figure 3-7 Connections to Wideband AC DVM ........................................... 3-8
Figure 3-8 Power Supply Test Point Locations ............................................ 3-11
Figure 3-9 Model 3933A Exploded View ................................................ 3-12
List of Tables
SECTION 1 - Performance Verification
Table 1-l Verification Equipment ..................................................... l-2
Table 1-2 Limits for Frequency and Duty Cycle Accuracy ................................... l-3
Table 1-3 Limits for Amplitude Accuracy ............................................... l-5
Table l-4 Limits for Frequency Response (Sine) .......................................... 1-7
Table 1-5 Limits for Frequency Response (Triangle, Sawtooth, Square) ......................... l-8
Table l-6 Limits for Total Harmonic Distortion .......................................... 1-9
Table l-7 Limits for DC Voltage Accuracy .............................................. l-10
Table l-8 Limits for DC Level (Square) and DC Offset Error (Sine) ............................ l-10
Table l-9 Limits for Rise/Fall Times ................................................... l-11
SECTION 3 - Service Information
Table 3-1 Recommended Line Fuses ................................................... 3-1
Table 3-2 Recommended Test Equipment for Calibration ................................... 3-2
Table 3-3 Power Supply Test Point Summary ............................................ 3-10
Table 3-4 BoardLevelRepairSummary ................................................ 3-10
Table 3-5 Replaceable Parts ......................................................... 3-13
SECTION 1
Performance Verification
1 .I INTRODUCTION cation procedures. If the instrument has been subjected
to extremes of temperature (outside the range specified
The procedures outlined in this section may be used to in the previous paragraph), additional time should be al-
verify that the Model 3933A is operating within the limits lowed for internal temperatures to reach normal operat-
stated in the specifications. Performance verification may ing temperature. Typically, it takes one additional hour
be done when the instrument is first received to ensure to stabilize a tit that is 10◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
