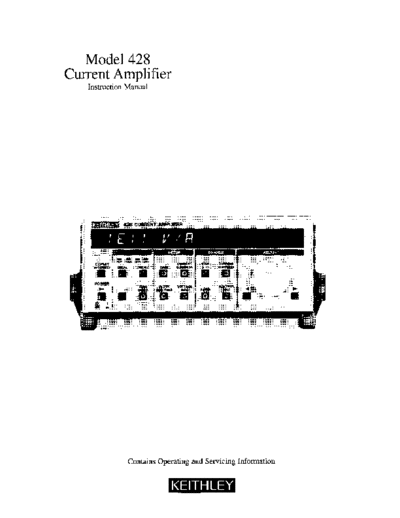

Image preview - the first page of the document
>> Download 428_901_01D documenatation <<
Text preview - extract from the document
Model 428 Digital Board, Parts List
Circuit Keithley
Desig. Description Part No.
CAl?,,O.47UF,20%,5OV CERAMIC C-237-.47
CAP,47UF,-20+100%,25V,ALUM ELEC c-314-47
CAP,.OlUF,20%,50V,CERAMIC C-365-.01
CAP,15l?F,10%,200V,CERAMIC C-406-15P
CAP,l5PF,lO%,200V,CERAMIC C-406-15P
CAI',.lUF,20%,50V,CERAMIC C-365-.1
CAP,10UF,lO%,20V,TANTALUM ELECTROLYTE C-204-10
CR5OOCR503 DIODE,SILICON,IN4148 (DO-351 RF-28
J1003* CONN,RIGHT ANGLE,24 PIN cs-501
J1004 CONN,STRAIGHT POST HEADER,3-PIN cs-533-3
J1005,J1007 CONN,HEADER STRAIGHT SOLDER PIN CS-368-20
J1006 CONNECTOR, HEADER CS-715-4
R5OO,R501 RES,18K,5%,1 /CW,COMPOSITION OR FILM R-76-l 8K
R502 RES NET, 3.3K,2%,.6W TF-101
R503,R507 RES NET,3.3K,5%,1.25W TF-140
R504,R506 RES,1OO,5%,1/4W,COMFOSITION OR FILM R-76-100
R505 RES,3.3K,5%,1/4W, COMFOSITION OR FILM R-76-3.3K
R508,R509 RES NET,3.3K,2%,.25W TF-77
u500 IC,+5V VOLTAGE REGULATOR,LM294OCT IC-576
U501,U502 IC,OCTAL TRI STATE BUFFER,74HCT240 IC-683
u503 IC,DUAL 4 BIT COUNTER,74HCT393 IC-462
u504 IC,VERSATILE INTERFACE ADAPTER,G65SC22 LSI-86
u505 IC,DUAL D FLIT' FLOP W/SET & RESE,74HCT74 IC-515
U506 IC,8-BIT PARALLEL TO SERIAL,74HCT165 IC-548
u507 IC, AND-OR-INVERT ARRAY,I'AL16L8H-15 IC-687A
U508 EPROM, PROGRAMMED 428-800A
u509 IC,8 BIT MICROPROCESSING UNlT,MC68BO9 LSI-65
u510 IC,I'ROG RAMMABLE E2ROM 2816B LSI-83
u511 IC,(8KX8)HI SPEED STATIC CMOS RAM,6264 LSI-66
U512 IC,QUAD 2-INPUT NOR GATE,74HCT02 IC-510
u513 IC,SUF'PLY VOLTAGE SUPERVISOR,TL7705AC IC-602
u514* IC,GPIB ADAl'TER,9914A LSI-49
u515* IC,OCTAL INTERFACE BUS TRANSCEIVER,75161 IC-299
U516* IC,OCTAL INTERFACE BUS,75160 IC-298
J-15
CRYSTAL,8.OOOOMHZ CR-24-l
*428-FROG ONLY
