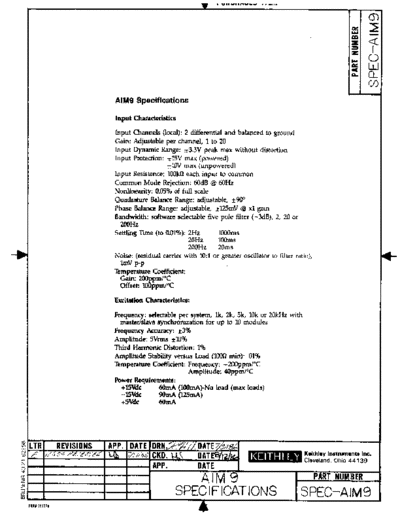

Image preview - the first page of the document
AIM9_500RevA_DocSpec


>> Download AIM9_500RevA_DocSpec documenatation <<

Text preview - extract from the document
AIM9 Specifications

Input Characteristics

Input   Channels (local): 2 differential and balanced to ground
Gain:   Adjustable per channel, 1 to 20
Input   Dynamic Range: *3.5V peak max without distortion
Input   Pmtection: kL5V mar (powered)
                   *XIV max (unpowered)
Input Resistance: 1OOkfleach input to common
Common Mode Rejection: 60dB @ 6OHz
Nonlinearity: 0.05% of full scale
Quadrature Balance Range: adjustable, @On
Phase Balance Range: adjustable, kl25mV @ xl gain
Bandwidth: software selectable five pole filter (-3dB), 2, 20 or
  2ooHz
settliig Tiie (to 0.01%): 2Hz           lC0Jms
                           2oHz         1COms
                           2OOHz 20ms
Noise: (residual carrier with lO:l or greater oscillator to filter ratio),                         f
  1s P-P
Temperature Coefficient:
  Gain: 2OOppmK
  Offset: lOOppInK

Excitation ctmracteristics:

Frequency: selectable per system, lk, 2k, 5k, 10k or 20kHz with
  master/slave synchronization for up to 10 modules
Frequency Accuracy: *3%
Amplitude: SVrms flO%
Third Harmonic Distortion: 1%
Amplihrde Stabii versus Load (IfNIlI min): .Ol%
Temperature Coefficient: Frequency: c2OOppmK
                         Amplitude: 4OppmK
Rower Requirements:
  +lSVdC       6OmA (lOOmA)-No load (max loads)
  -Evdc
  +5VdC




                                                                       Keithley Instruments Inc.
                                                                       Cleveland, Ohio 44139
    -         APP.
                           AIM 9                                             PART NUMBER

                        SPECIFICATIONS                                SPEC-AIM9
