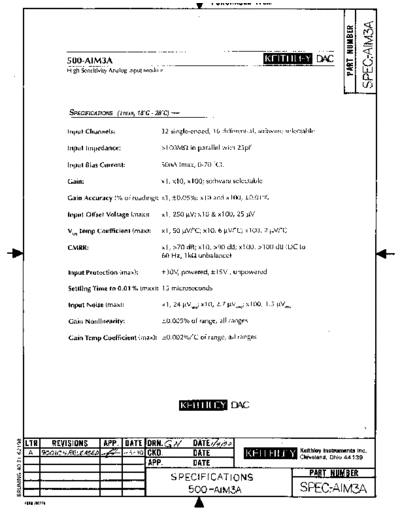

Image preview - the first page of the document



>> Download AIM3A_500RevA_DocSpec documenatation <<

Text preview - extract from the document

             500-AIM3A
             High Sensitivity Analog Input Module




             SPE~IFICAJIONS(~VEAR, - 28'Cj -
                                WC

             Input Channels:                            32 single-ended,    16 diiieremial,   sofware    selectable

             input   Impedance:                         YIOOMR     in parallel with 25pF

             Input Bias Current:                        50nA hnax, O-70 *C).

             Cain:                                      xl, xl 0, x100; software selectable

             Gain Accuracy      (% of reading):         xl, +0.05%;     x IO and xl 00, to.01 "A

             Input Offset Voltage (max):                x1,250~v;x10&x100,25~v

             V,,Temp    Coefficient      (max):         xl, 50 fiV/T;    xl 0, 6 pV/`C; xl 00, 2 ~V/`C

             CMRR:                                      xl, >70 dB; x10, >90 de; x100, >lOO dB (DC to
                                                        60 Hz, 1kR unbalance)

             Input Protection     (maxI:                i3OV, powered;     *15V , unpowered

             Settling Time to 0.01%            (max): 15 microseconds

             Input Noise (max):                         xl, 24 PV,~,; x10, 2.7 &IV,",,; x100, 1 .3 FV,~,

             Gain Nonlinearity:                         f0.005%    of range, all ranges

             Gain Temp Coefficient         (max):       rtO.O02%/`C of range, ail ranges




.TR     REVISIONS 1APP. OATE ORN.C;#                                  DATE&u
A     ~`OOICXRELEAS.FD &              1-4-90     CKD.                 OATE                                    Kelthley lnstrur
                                                                                                              Ckkland, Ohic
                                   -             APP.                 DATE
                                                           SPECIFICATIONS                                         PARTNIJI
                                                              500 -AIM3A                                      SPECTA
