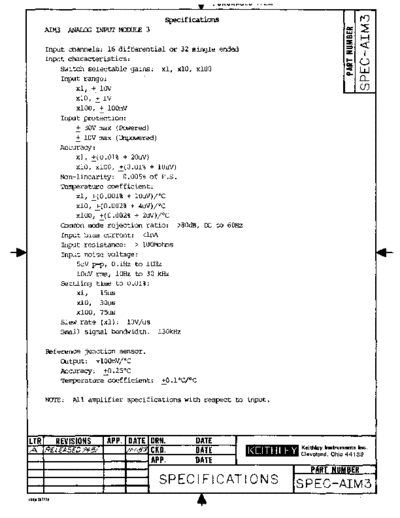

Image preview - the first page of the document
>> Download AIM3_500RevA_DocSpec documenatation <<
Text preview - extract from the document
, ".."..-"-I . . Mm..
specifications
AIM3 ANAL4xINEurmulL4E3
Input channels: 16 differential or 32 single ended
Input characteristics:
Switch selectable gains: xl, x10, xl00
Inpt range:
xl, + 1ov
x10, + 1v
x100,-+ 10omv
Input protection:
+ 30V nkax (Pcwered)
T 1OV aax (Unmred)
-
Accuracy:
xl, +(o.ol% + 2OuV)
x10,-x100, +(o.ol% + 1OUV)
Non-linearity: -0.005% of F.S.
lkqerature coefficient:
xl, +(o.ool% + lOuV)/~C
x10, +(0.002% + 4uV)/T
x100, 5(0.002% + ZuV)/T
&mnmn mde rejection ratio: XJOdE, IX to 60Hz
Input bias current: lOO!.mms
Input noise voltage:
5uv p-p, O.lHz to 1OHz
1OuV me, 1OHz to 30 ICHZ
Settling time to 0.01%:
Xl, 15us
do, 3ous
x100, 75us
Slew rate (xl): lOV/us
Small signal bandwidth; 13OlcHz
Fkaference junction sensor;
cutpt: +loOmv/"c
Accuracy: ~0.25"C
Temperature coefficient: +O.lT/'C
PUTS: R11 amplifier specifications with respect to input.
.TR REVISIONS APP. OATE ORN. DATE
Kelthley Instruments Inc.
4 RElEASZD9+3i /me'?I CKO. DATE Cleveland. Ohio 44139
- APP. DATE
PARTNUMBER
I t SPECIFICATIONS SPEC-AJ-M3
