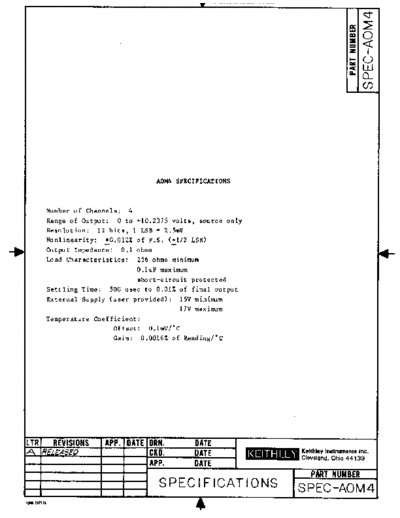

AOM4_500RevA_DocSpec


>> Download AOM4_500RevA_DocSpec documenatation <<

Text preview - extract from the document
                                             AOM4 SPECIFICATIONS



        Number    of Channels:          4
        Range of output:           0 to +10.2375 volts,        source only
        Resolution:         12 bits,      1 LSB = 2.5mV
        Nonlinearity:         +0.012X, of F.S. (+1/2 LSB)
        Outpt      Impedance:        0.1 ohms
        Load Characteristics:              256 ohms minimum
                                           O.luF maximum
                                           short-circuit    protected
        Settling      Time:     500 usec to 0.01% of final          output
        External      Supply (user provided):            15V minimum
                                                         17V maximm
        Temperature       Coefficient:
                                 Offset:       O.lmV/'C
                                 Gain:      0.0016% of Reading/"C




TRI       REVISIONS 1 APP. 1DATEIORN.                      DATE
                                                           -...-         I
                                                                             Keithley Instruments Inc.
\   RELEASED              I       I       I CKD.           DATE              Cleveland, Ohio 44139
    I                                     t APP.           DATE
                                          \
                                                                                PARTNUMBER
                                              SPECIFICATIONS                 SPEC-AOM4
