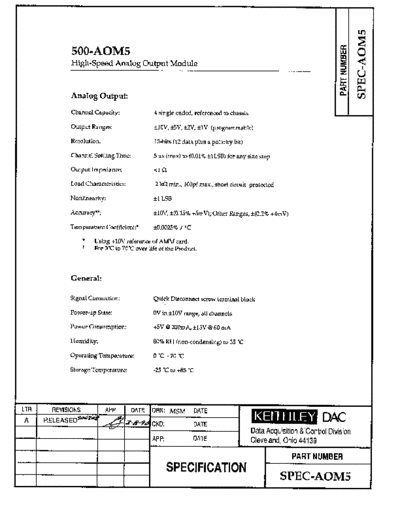

Image preview - the first page of the document



>> Download AOM5-500RevA_DocSpec documenatation <<

Text preview - extract from the document

                                                                                                               2
500-AOM5                                                                                               lz
High-Speed Analog Output Module
                                                                                                       2       (J

                                                                                                       $g
Analog Output:
Channel Capacity:                   4 single ended, referenced to chassis

Output Ranges:                      *lOV, f5V, i2V. flV    (programmable)

Resolution:                         13-bits (12 data plus a polarity bit)

Channel Settling Time:             5 PS(max) to (0.01%flLSB) for any size step

output Impedance:
