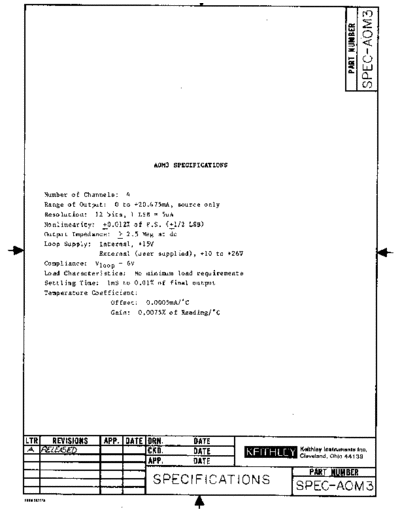

Image preview - the first page of the document
>> Download AOM3_500RevA_DocSpec documenatation <<
Text preview - extract from the document
AOM3 SPECIFICATIONS
Number of Channels: 4
Range of Output: 0 to +20.475mA, source only
Resolution: 12 bits, 1 LSB = 5uA
Nonlinearity: ~0.012% of F.S. (2112 LSB)
Output Impedance: L 2.5 Meg at dc
Loop Supply: Internal, +15v
External (user supplied), +lO to +26V c
Compliance: Vloop - 6V
Load Characteristics: No minimnn load requirements
Settling Time: 1116 to 0.01% of final output
Temperature Coefficient:
Offset: 0.0005mA/'c
Gain: 0.0075% of Reading/'C
L'TR REVISIONS APP. DATE DRN. DATE
/ 4 RELEASED CKD. DATE Keithley Instruments Inc.
Cleveland. Ohio 44 139
- APP. DATE
PARTNUMBER
I I SPECIFICATIONS SPEC-AOMC
