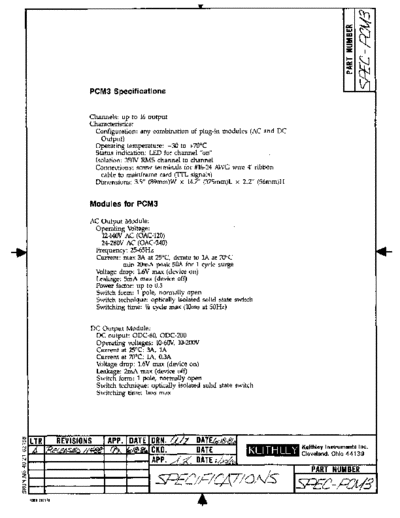

Image preview - the first page of the document



>> Download PCM3_500RevA_DocSpec documenatation <<

Text preview - extract from the document

PCM3 Specifications

Channels: UP to 16 output
Characteristi'cs:     .
 Configuration: any combination of plug-in modules (AC and DC
    Output)
 Operating temperature: -30 to +7O"C
 Status indication: LED for channel "on"
 Isolation: 350V RMS channel to channel
 Connections: screw terminals for #16-24 AWC wire 4' ribbon
    cable to mainframe card (`ITL signals)
  Dimensions: 3.5" (89mm)W x 14.7" (375mm)L x 2.2" (56mm)H


Modules for PCM3
AC Output Module:
 Operiting Voltage:
   l2-14OV AC (OAC-120)
   24-28OVAC (OAC-2401
 Frequency: 2565Hz         '                                                                t
  Current: max 3A at 25"C, derate to L4 at 70
