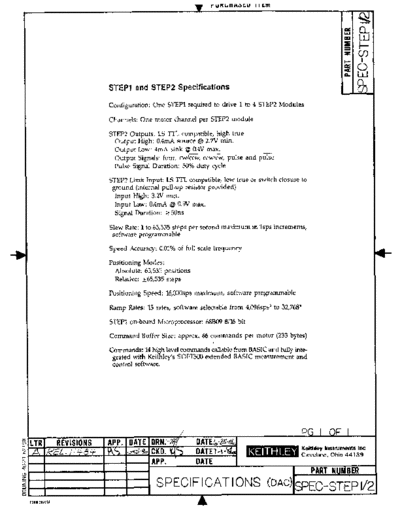

Image preview - the first page of the document



>> Download STEP1_252C2_500RevA_DocSpec documenatation <<

Text preview - extract from the document

                      STEP1 and STEP2 Specifications

                      Configuration: One STEI'l required to drive 1 to 4 STEP2 Modules

                      Channels: One motor channel per STEP2 module

                      STEP2 Outputs: LS TTL compatible, high true
                       Output High: 0.4mA source @ 2.7V min.
                       Output Low: 4mA sink @ 0.W max.
                       Output Signals: four; CW/=, ccwl~, pulse and pulse
                       rulse Signal Duration: 50% duty cycle

                      STEP2 Limit Input: LS 1TL compatible, low true or switch closure to
                       ground (internal pull-up resistor provided)
                        Input High: 3.2V min.
                        Input Low: 0.4mA @ 0.9V max.
                        Signal Duration: >jOns

                      Slew Rate: 1 to 65,535 steps per second maximum in lsps increments,
                       software programmable

                      Speed Accuracy: 0.01% of full scale frequency
-D                    Positioning Modes:
                                                                                                                    c
                       Absolute: 65,535 positions
                        Relative: f65.535 steps

                      Positioning Speed: 16,OOOsps
                                                 maximum, soft,.vare programmable

                      Ramp Rates: 15 rates, software selectable from 4,096sps' to 32,768'

                      STEI'Y on-board Microprocessor: 68809 8116bit
                      Command Buffer Size: approx. 66 commands per motor (233 bytes)

                      Commands: 14high level commands callable from BASIC and fully inte-
                       grated with Keithley's SOETSM)extended BASIC measurement and
                       control software.




                                              /
 E LTR    REVISIONS 1 APP. 1OATE ORN.`fl            OATEd-25s
 (D                                                                                       Keith@ Instruments Inc.
      I,G%L./IYA,G  I k\ 1~5% CKD. ti5              DATEI+&                               Cleveland, Ohio 44139
                    I      I
                           I    / APP. '            DATE
                           I                                                         I       I
                           I
                           I          SPECIFICATIn"`c
                                                   "I\12
                                                                                         -. --      -. -. ---
