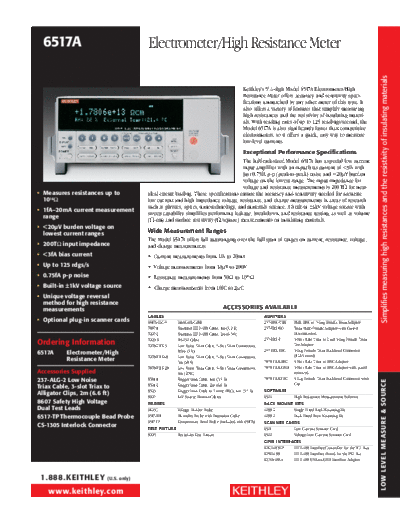

Image preview - the first page of the document
>> Download data documenatation <<Text preview - extract from the document 6517a Electrometer/High Resistance Meter
Simplifies measuring high resistances and the resistivity of insulating materials
Keithley's 51 /2-digit Model 6517A Electrometer/High
Resistance Meter offers accuracy and sensitivity speci-
fications unmatched by any other meter of this type. It
also offers a variety of features that simplify measuring
high resistances and the resistivity of insulating materi-
als. With reading rates of up to 125 readings/second, the
Model 6517A is also significantly faster than competitive
electrometers, so it offers a quick, easy way to measure
low-level currents.
Exceptional Performance Specifications
The half-rack-sized Model 6517A has a special low current
input amplifier with an input bias current of <3fA with
just 0.75fA p-p (peak-to-peak) noise and <20
