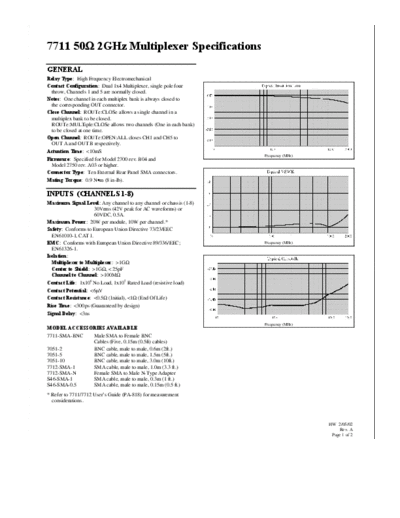

Image preview - the first page of the document



>> Download 7711_252C7712RevA_DocSpec documenatation <<

Text preview - extract from the document


7711 50 2GHz Multiplexer Specifications
GENERAL
Relay Type: High Frequency Electromechanical
Contact Configuration: Dual 1x4 Multiplexer, single pole four
  throw, Channels 1 and 5 are normally closed.
Notes: One channel in each multiplex bank is always closed to
  the corresponding OUT connector.
Close Channel: ROUTe:CLOSe allows a single channel in a
  multiplex bank to be closed.
  ROUTe:MULTiple:CLOSe allows two channels (One in each bank)
  to be closed at one time.
Open Channel: ROUTe:OPEN:ALL closes CH1 and CH5 to
  OUT A and OUT B respectively.
Actuation Time: <10mS
                                                                    Frequency (MHz)
Firmware: Specified for Model 2700 rev. B04 and
  Model 2750 rev. A03 or higher.
Connector Type: Ten External Rear Panel SMA connectors.
Mating Torque: 0.9 N
