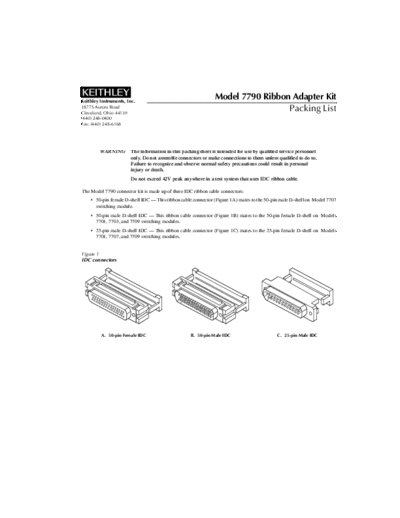

Image preview - the first page of the document
pa773a(Model7790)


>> Download pa773a(Model7790) documenatation <<

Text preview - extract from the document
Keithley Instruments, Inc.
                                                               Model 7790 Ribbon Adapter Kit
28775 Aurora Road
Cleveland, Ohio 44139
                                                                                Packing List
(440) 248-0400
Fax: (440) 248-6168




           WARNING      The information in this packing sheet is intended for use by qualified service personnel
                        only. Do not assemble connectors or make connections to them unless qualified to do so.
                        Failure to recognize and observe normal safety precautions could result in personal
                        injury or death.
                        Do not exceed 42V peak anywhere in a test system that uses IDC ribbon cable.

The Model 7790 connector kit is made up of three IDC ribbon cable connectors:
