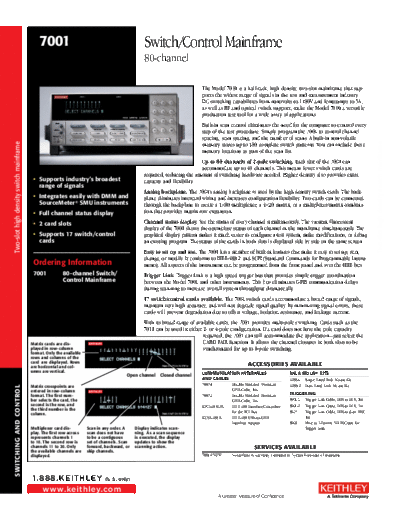

Image preview - the first page of the document
>> Download 7001 documenatation <<
Text preview - extract from the document
7001 Switch/Control Mainframe
80-channel
The Model 7001 is a half-rack, high density, two-slot mainframe that sup-
ports the widest range of signals in the test and measurement industry .
DC switching capabilities from nanovolts to 1100V and femtoamps to 5A,
as well as RF and optical switch support, make the Model 7001 a versatile
production test tool for a wide array of applications .
Built-in scan control eliminates the need for the computer to control every
step of the test procedure . Simply program the 7001 to control channel
spacing, scan spacing, and the number of scans . A built-in non-volatile
memory stores up to 100 complete switch patterns . You can include these
Two-slot high density switch mainframe
Two-slot high density switch mainframe
memory locations as part of the scan list .
Up to 80 channels of 2-pole switching. Each slot of the 7001 can
accommodate up to 40 channels . This means fewer switch cards are
required, reducing the amount of switching hardware needed . Higher density also provides extra
