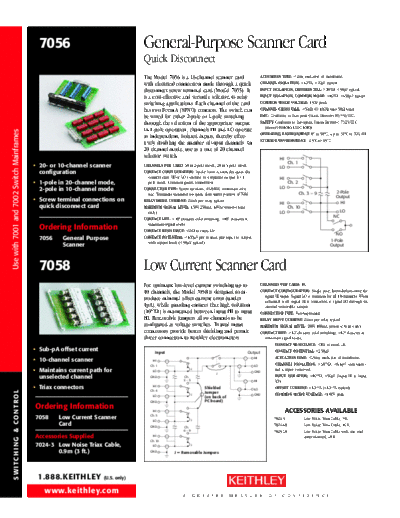

Image preview - the first page of the document
>> Download 7054_7056_DS documenatation <<Text preview - extract from the document 7056 General-Purpose Scanner Card
Quick Disconnect
The Model 7056 is a 10-channel scanner card ACTUATION TIME: <2ms, exclusive of mainframe.
with electrical connection made through a quick CHANNEL ISOLATION: >109, <20pF typical.
disconnect screw terminal card (Model 7055). It INPUT ISOLATION, DIFFERENTIAL: >109, <50pF typical.
is a cost-effective and versatile solution to relay INPUT ISOLATION, COMMON MODE: >109, <150pF typical.
switching applications. Each channel of the card COMMON MODE VOLTAGE: 150V peak.
has two Form A (SPNO) contacts. The switch can CHANNEL CROSSTALK: <50dB @ 1MHz into 50 load.
be wired for either 2-pole or 1-pole switching EMC: Conforms to European Union Directive 89/336/EEC.
through the selection of the appropriate output. SAFETY: Conforms to European Union Directive 73/23/EEC
(meets EN61010-1/IEC 1010).
In 1-pole operation, channels HI and LO operate
Use with 7001 and 7002 Switch Mainframes
OPERATING ENVIRONMENT: 0
