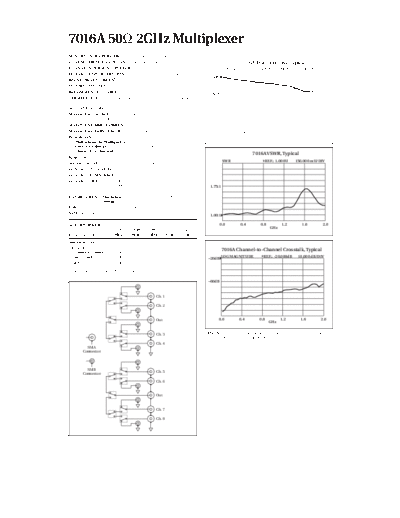

Image preview - the first page of the document



>> Download 7016A_DocSpec documenatation <<

Text preview - extract from the document

7016A 50 2GHz Multiplexer
MULTIPLEXERS PER CARD: 2 (with isolated ground).
CHARACTERISTIC IMPEDANCE: 50 nominal.                                                    7016A Insertion Loss, Typical
CHANNELS PER MULTIPLEXER: 4.                                                     LOG MAGNITUDE       REF= 0.000dB        0.500 dB/DIV
CONTACT CONFIGURATION: 1 pole Form A common shield.
                                                                       0.0dB
RELAY DRIVE CURRENT: 120mA.
CONNECTOR TYPE: SMA.
RECOMMENDED CABLE: RG-223/U.
