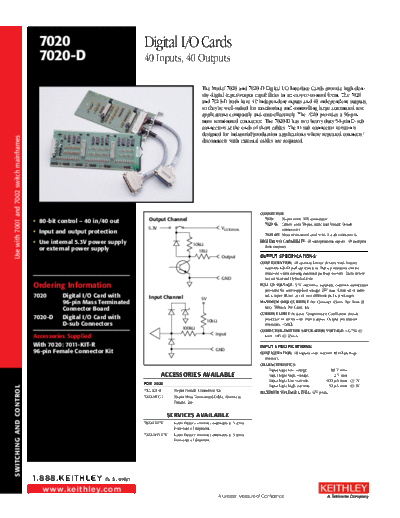

Image preview - the first page of the document
>> Download 7020 documenatation <<
Text preview - extract from the document
7020 Digital I/O Cards
7020-D 40 Inputs, 40 Outputs
The Model 7020 and 7020-D Digital I/O Interface Cards provide high-den-
sity digital input/output capabilities in an easy-to-control form . The 7020
and 7020-D both have 40 independent inputs and 40 independent outputs,
so they're well-suited for monitoring and controlling large automated test
applications compactly and cost-effectively . The 7020 provides a 96-pin
mass terminated connector . The 7020-D has two heavy duty 50-pin D-sub
connectors at the ends of short cables . The D-sub connector version is
designed for industrial/production applications where repeated connects/
Use with 7001 and 7002 switch mainframes
disconnects with external cables are required .
Parametric test systems
CONNECTOR:
output Channel 7020: 96-pin male DIN connector .
