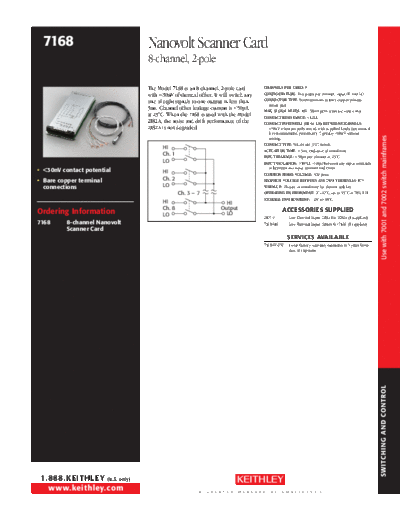

Image preview - the first page of the document



>> Download 7168 documenatation <<

Text preview - extract from the document

                                            7168                         Nanovolt Scanner Card
                                                                         8-channel, 2-pole

                                                                         The Model 7168 is an 8-channel, 2-pole card            CHANNELS PER CARD: 8.
                                                                         with <30nV of thermal offset. It will switch any       CONFIGURATION: Two poles per channel, input HI and LO.
                                                                         one of eight signals to one output in less than        CONNECTOR TYPE: Screw terminal to bare copper printed
                                                                                                                                  circuit pad.
                                                                         3ms. Channel offset leakage current is <50pA           MAX. SIGNAL LEVEL: 10V, 50mA peak (resistive load only).
                                                                         at 23
