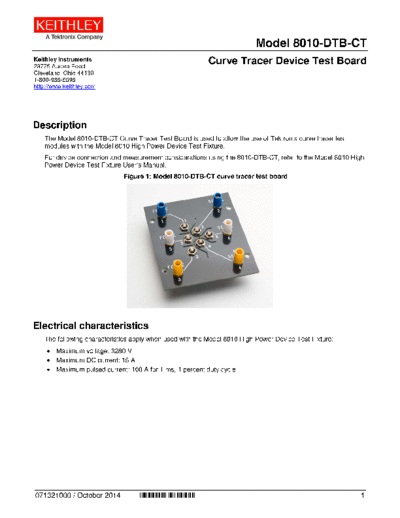

>> Download 071321000 (Oct 2014)(8010-DTB-CT) documenatation <<Text preview - extract from the document Model 8010-DTB-CT
Keithley Instruments
28775 Aurora Road
Curve Tracer Device Test Board
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Model 8010-DTB-CT Curve Tracer Test Board is used to allow the use of Tektronix curve tracer test
modules with the Model 8010 High Power Device Test Fixture.
For device connection and measurement considerations using the 8010-DTB-CT, refer to the Model 8010 High
Power Device Test Fixture User's Manual.
Figure 1: Model 8010-DTB-CT curve tracer test board
Electrical characteristics
The following characteristics apply when used with the Model 8010 High Power Device Test Fixture:
