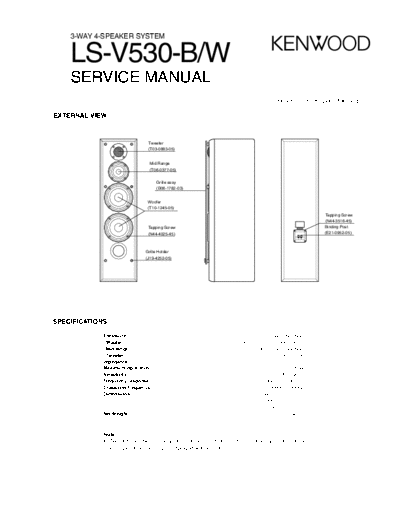

Image preview - the first page of the document
>> Download LS-V530B documenatation <<
Text preview - extract from the document
3-WAY 4-SPEAKER SYSTEM
LS-V530-B/W
SERVICE MANUAL
2003-10/B51-5884-00 (Z/K) 334
EXTERNAL VIEW
Tweeter
(T03-0883-05)
Mid Range
(T06-0377-05)
Grille assy
(B06-1782-03)
Woofer
(T10-1245-05)
Tapping Screw
(N44-3516-45)
Tapping Screw Binding Post
(N44-4025-45) (E21-0952-05)
Grille Holder
(J19-4252-05)
SPECIFICATIONS
Enclosure .............................................................................................................Bass-reflex type
Woofer .........................................................................................160 mm (6-1/12") cone type x2
Mid-range .................................................................................................100 mm (4") cone type
Tweeter......................................................................................................25 mm (1") dome type
Impedance ................................................................................................................................8
Maximum input level...........................................................................................................120 W
Sensitivity.................................................................................................................85dB/W at1m
Frequency response ........................................................................................36Hz ~ 25,000 Hz
Crossover frequency...........................................................................................600Hz, 3,000Hz
Dimensions ......................................................................................................W: 225mm (8-7/8")
H: 900mm (35-7/16")
D: 313mm (12-5/16")
Net Weight ...............................................................................................15.6 kg (34.4 lb / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
LS-V530-B/W
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
E1 J1
W4 W1
GRN BLK
(WHT TUBE)
0.56mH
R1 C1
L1
4.7 3.9u50 SP3
BLK 10W
RED
R2 C2 L2
10 5.6u50 2.2mH W2
BLK
(WHT TUBE)
3.9u50
2.2mH
10W
C3
SP2
L2
YEL
L3
2.5mH W3 (WHT TUBE)
BLU
SP1
BLK
8.2u50
C4
W3 (WHT TUBE)
BLU
SP1
BLK
PARTS LIST
New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
New Desti- Re-
Ref. No. Address Parts No. Description
Parts nation marks
LS-V530-B/W
- B06-1782-03 GRILLE ASSY
- B61-1204-00 INSTRUCTION MANUAL
E1 * E21-0952-05 TERMINAL
- E30-5505-05 SPEAKER CORD
- H10-6513-08 POLYSTYRENE FOAMED FIXTURE
- H10-6522-08 POLYSTYRENE FOAMED FIXTURE
- * H21-1393-08 PROTECTION SHEET
- * H51-2039-08 ITEM CARTON CASE B
- * H51-2042-08 ITEM CARTON CASE W
- J19-4252-05 GRILLE HOLDER
SP1 T10-1245-05 WOOFER
SP2 * T06-0377-05 MID-RANGE
SP3 T03-0883-05 TWEETER
DIVIDING NETWORK UNIT(X21-8260-20)
C1 C90-2253-05 NP-ELEC 3.9UF 50WV
C2 C90-2255-05 NP-ELEC 5.6UF 50WV
C3 C90-5114-05 NP-ELEC 3.9UF 50WV
C4 C90-5118-05 NP-ELEC 8.2UF 50WV
- J31-0329-05 COLLAR
L1 L38-0519-05 COIL 0.56mH
L2 L38-0619-05 COIL 2.2mH
L3 L38-0452-05 COIL 2.5mH
R1 R92-0896-05 CEMENT 4.7 K 10W
R2 R92-0900-05 CEMENT 10 K 10W
