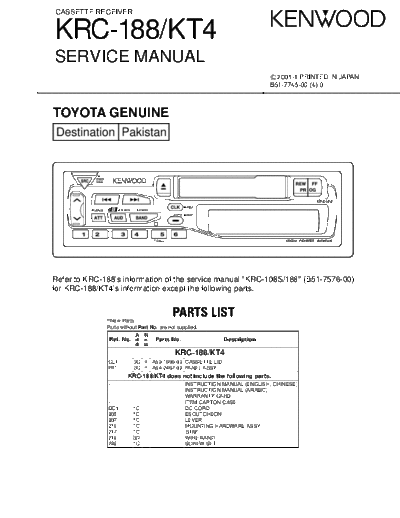

Image preview - the first page of the document
>> Download KRC-188 & KT4 documenatation <<
Text preview - extract from the document
CASSETTE RECEIVER
KRC-188/KT4
SERVICE MANUAL
C 2001-1 PRINTED IN JAPAN
B51-7745-00 (4) 0
TOYOTA GENUINE
Destination Pakistan
KRC-188
Refer to KRC-188's information of the service manual "KRC-108S/188" (B51-7576-00)
for KRC-188/KT4's information except the following parts.
New Parts
PARTS LIST
Parts without Part No. are not supplied.
A N
Ref. No. d e Parts No. Description
d w
KRC-188/KT4
CL1 3C A53-1696-03 CASSETTE LID
PA1 3C A64-2467-02 PANEL ASSY
KRC-188/KT4 does not include the following parts.
- INSTRUCTION MANUAL (ENGLISH, CHINESE)
- INSTRUCTION MANUAL (ARABIC)
- WARRANTY CARD
- ITEM CARTON CASE
DC1 1C DC CORD
205 1C ESCUTCHEON
207 1C LEVER
216 1C MOUNTING HARDWARE ASSY
217 1C STAY
218 3D WIRE BAND
228 1C SCREW SET
