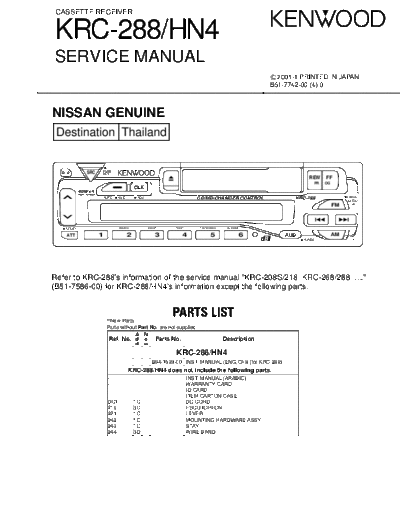

Image preview - the first page of the document
>> Download KRC-288 & HN4 documenatation <<
Text preview - extract from the document
CASSETTE RECEIVER
KRC-288/HN4
SERVICE MANUAL
C 2001-1 PRINTED IN JAPAN
B51-7742-00 (4) 0
NISSAN GENUINE
Destination Thailand
PWR
SRC OFF
REW FF
PR OG
CLK
AUTO AME ADJ CD/MD-CHANGER CONTROL CRSC
KRC-288
DISC
FM
LOUD SCAN RDM REP T.C/D.SCN M.RDM
ATT 1 2 3 4 5 6 AUD AM
A.ADJ
Refer to KRC-288's information of the service manual "KRC-208S/218_KRC-268/288_...."
(B51-7586-00) for KRC-288/HN4's information except the following parts.
New Parts
PARTS LIST
Parts without Part No. are not supplied.
A N
Ref. No. d e Parts No. Description
d w
KRC-288/HN4
- B64-1539-00 INST. MANUAL (ENG,CHI) (for KRC-288)
KRC-288/HN4 does not include the following parts.
- INST. MANUAL (ARABIC)
- WARRANTY CARD
- ID CARD
- ITEM CARTON CASE
DC1 1C DC CORD
216 3C ESCUTCHEON
221 1C LEVER
242 1C MOUNTING HARDWARE ASSY
243 1C STAY
244 3D WIRE BAND
