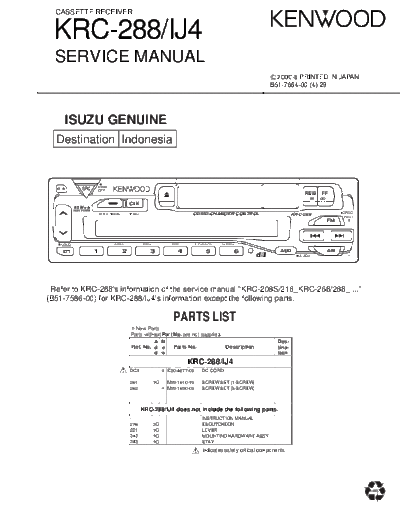

Image preview - the first page of the document
>> Download KRC-288 & IJ4 documenatation <<
Text preview - extract from the document
CASSETTE RECEIVER
KRC-288/IJ4
SERVICE MANUAL
C 2000-8 PRINTED IN JAPAN
B51-7664-00 (4) 29
ISUZU GENUINE
Destination Indonesia
PWR
SRC OFF
REW FF
PR OG
CLK
AUTO AME ADJ CD/MD-CHANGER CONTROL CRSC
KRC-288
DISC
FM
LOUD SCAN RDM REP T.C/D.SCN M.RDM
ATT 1 2 3 4 5 6 AUD AM
A.ADJ
Refer to KRC-288's information of the service manual "KRC-208S/218_KRC-268/288_...."
(B51-7586-00) for KRC-288/IJ4's information except the following parts.
PARTS LIST
New Parts
Parts without Part No. are not supplied.
A N Des-
Ref. No. d e Parts No. Description tina-
d w tion
KRC-288/IJ4
DC1 E30-4877-05 DC CORD
261 1C N99-1610-15 SCREW SET (1-SCREW)
262 N99-1690-05 SCREW SET (5-SCREW)
KRC-288/IJ4 does not include the following parts.
- INSTRUCTION MANUAL
216 3C ESCUTCHEON
221 1C LEVER
242 1C MOUNTING HARDWARE ASSY
243 1C STAY
indicates safety critical components.
