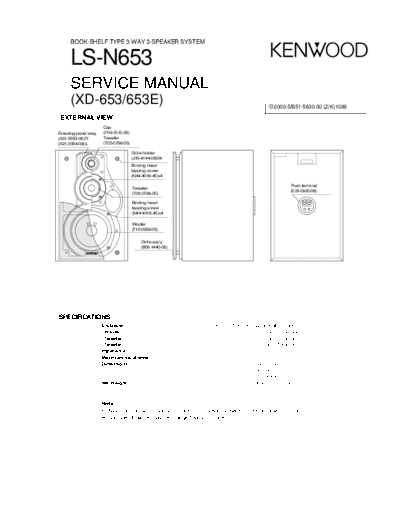

Image preview - the first page of the document
>> Download LS-N653 documenatation <<Text preview - extract from the document BOOK-SHELF TYPE 3-WAY 3-SPEAKER SYSTEM
LS-N653
SERVICE MANUAL
(XD-653/653E) 2000-5/B51-5630-00 (Z/K)1086
EXTERNAL VIEW
Cap
Dressing panel assy (F09-1515-08)
(A21-3353-08):R Tweeter
(A21-3354-08):L (T03-0796-05)
Grille holder
(J19-4144-08)X4
Binding head
tapping screw
(N44-4016-45)x4
Push terminal
Tweeter
(E29-0920-08)
(T03-0784-05)
Binding head
tapping screw
(N44-4016-45)x4
Woofer
(T10-0938-05)
Grille ass'y
(B06-1440-08)
SPECIFICATIONS
Enclosure.........................................................................Bass-reflex type (magnetically shielded)
Woofer..........................................................................................................130 mm, cone type
Tweeter ..........................................................................................................50 mm, cone type
Tweeter .........................................................................................................25 mm, dome type
Impedance ................................................................................................................................6
Maximum input level............................................................................................................70 W
Dimensions ....................................................................................................W: 215mm (8-1/2")
H: 330.5mm (13")
D: 240mm (9-1/2")
Net Weight ....................................................................................................4.0kg (8.8 lb / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
LS-N653
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
BLU +
SP3
WHT -
W1
C1 R1
+ RED +
1.8
