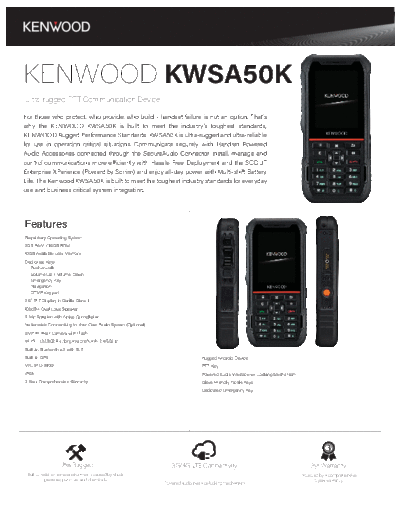

Image preview - the first page of the document
>> Download KWSA50KS_Brochure documenatation <<
Text preview - extract from the document
KENWOOD KWSA50K
Ultra-rugged PTT Communication Device
For those who protect, who provide, who build - handset failure is not an option. That's
why the KENWOOD KWSA50K is built to meet the industry's toughest standards,
KENWOOD Rugged Performance Standards. KWSA50K is ultra-rugged and ultra-reliable
for use in operation critical situations. Communicate securely with Handset Powered
Audio Accessories connected through the SecureAudio Connector. Install, manage and
control communications more efficiently with Hassle-Free Deployment and the SCOUT
Enterprise XPerience (Powerd by Sonim) and enjoy all-day power with Multi-shift Battery
Life. The Kenwood KWSA50K is built to meet the toughest industry standards for everyday
use and business critical system integration.
Features
Proprietary Operating System
2GB RAM / 16GB ROM
10GB Available User Memory
Dedicated Keys:
Push-to-talk
Volume Up / Volume Down
Emergency Key
Navigation
DTMF Keypad
2.6" TFT Display in Gorilla Glass 1
100dB+ Dual Loud Speaker
3 Mic Solution with Noise Cancellation
Nationwide Connectivity to Your Core Radio System (Optional)
5MP FF Rear Camera with Flash
Wi-Fi : IEEE802.11 a/b/g/n/ac/e/k/r/h 2.4/5GHz
Built-in Bluetooth 4.2 with BLE
Built-in GPS Rugged Android Device
MIL-STD-810G PTT Key
IP68 Powered Audio Interface w/ Locking Mechanism
3 Year Comprehensive Warranty Glove Friendly Tactile Keys
Dedicated Emergency Key
Ultra Rugged 3G/4G LTE Connectivity 3yr Warranty
Built to resisit extreme environments caused by shock, . Protected by a comprehensive
pressure, puncture, and chemicals. 3 year warranty.
Powered audio interface locking mechanism.
KWSA50K Communication Device
Specifications
KWSA50K KWSA50K
Core Platform/Funtions Physical Characteristics
Operating System Proprietary OS Size (W x H x D) 141mm x 66mm x 23mm
Chipset MSM8920 Quad core 1.4GHz (Exclude protrusion)
Weight 270g
Band LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/
B25/B26/B28/B30/B38/B41/B66 Dedicated Buttons PTT, Volume Up/Down, Emergency
UMTS: B1/B2/B4/B5/B8 Ports Optional connector(for future options),
CDMA/EVDO1: BC0/BC1/BC10 USB-C, Secure Audio Connector,
GSM: 850/900/1800/1900MHz Charging Pins, Dual Nano SIM Slots
Antenna MIMO antenna for LTE Rugged Certifications Class I, Div 2, Groups A, B, C, D;
Wi-Fi IEEE802.11 a/b/g/n/ac/e/k/r/h 2.4/5GHz Class II & III, Div 2, Groups F, G;,
Memory 2GB RAM/16GB ROM MIL-STD / IP Rating MIL-STD-810G / IP68
10GB available user memory
Supports up to 128GB MicroSD external memory
Preloaded Applications SCOUT(Powered by Sonim) Audio
Microphone 3 mic solution with noise cancellation
Speaker Dual front-facing loud speakers; output 100dB+
Connectivity
HAC M3/T4 Hearing Aid Compatible
Bluetooth BT4.2 with BLE
Messaging SMS, MMS (Text, Image, Audio, Video)
GPS GPS, GLONASS Multimedia
Sensors Accelerometer, Barometer Audio Formats AMR-NB, AMR-WB, AAC, AAC+, AAC+V2, MP3
Languages Supported English, Spanish, Canadian French3 Video Formats 3GP, MP4, WMV, AVI, MOV, MPEG-2, MPEG-4, H.263, H.264
Graphic JPEG, PNG, BMP
Media Player Yes
Battery
FM Radio Yes
Capacity 3180mAh Li-ion
Camera 5MP FF Rear Camera with Flash
LED Torch Light Yes
Display
Size/Type 2.64in TFT Gorilla Glass 1
Resolution 320 x 432 Inbox Accessories
Battery, Wall Charger, USB-C Cable, Screwdriver, Quick Start Guide
Colors 262K
1 CDMA/EVDO available for certain carriers only.
2 Please check with your service provider for availability.
3 Language availability based on region.
SD and microSD are trademarks of SD-3C, LLC in the United States, and/or other countries.
All other trademarks are the property of their respective holders.
JVCKENWOOD USA Corporation JVCKENWOOD Canada Inc.
Communications Sector Headquarters Canadian Headquarters and Distribution
1440 Corporate Drive | Irving, TX 75038 6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8
Order Administration/Distribution www.kenwood.com/ca
P.O. BOX 22745, 2201 East Dominguez St., Long Beach, CA 90801-5745
www.kenwood.com/usa
ADS#24018 Print in U.S.A.
