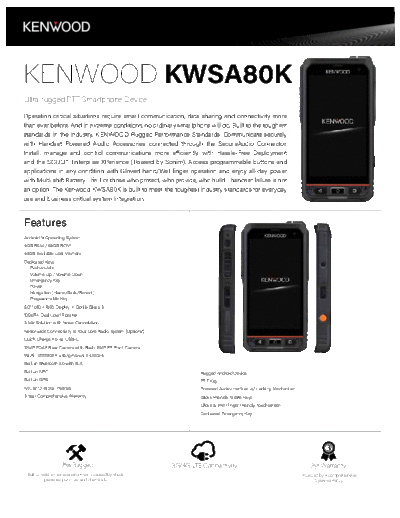

Image preview - the first page of the document
>> Download KWSA80K_Brochure documenatation <<
Text preview - extract from the document
KENWOOD KWSA80K
Ultra-rugged PTT Smartphone Device
Operation critical situations require smart communication, data sharing and connectivity more
than ever before. And in extreme conditions, no ordinary smartphone will do. Built to the toughest
standards in the industry, KENWOOD Rugged Performance Standards. Communicate securely
with Handset Powered Audio Accessories connected through the SecureAudio Connector.
Install, manage and control communications more efficiently with Hassle-Free Deployment
and the SCOUT Enterprise XPerience (Powerd by Sonim). Access programmable buttons and
applications in any condition with Gloved hand/Wet finger operation and enjoy all-day power
with Multi-shift Battery Life. For those who protect, who provide, who build - handset failure is not
an option. The Kenwood KWSA80K is built to meet the toughest industry standards for everyday
use and business critical system integration.
Features
Android N Operating System
4GB RAM / 64GB ROM
45GB Available User Memory
Dedicated Keys:
Push-to-talk
Volume Up / Volume Down
Emergency Key
Power
Navigation (Home/Back/Recent)
Programmable Key
5.0" 1080 x 1920 Display in Gorilla Glass 3
100dB+ Dual Loud Speaker
3 Mic Solution with Noise Cancellation
Nationwide Connectivity to Your Core Radio System (Optional)
Quick Charge 4.0 via USB-C
12MP PDAF Rear Camera with Flash, 8MP FF Front Camera
Wi-Fi : IEEE802.11 a/b/g/n/ac/r 2.4/5GHz
Built-in Bluetooth 5.0 with BLE
Built-in NFC Rugged Android Device
Built-in GPS PTT Key
MIL-STD-810G, IP68/69 Powered Audio Interface w/ Locking Mechanism
3 Year Comprehensive Warranty Glove Friendly Tactile Keys
Glove & Wet Finger Friendly Touchscreen
Dedicated Emergency Key
Ultra Rugged 3G/4G LTE Connectivity 3yr Warranty
.
Built to resisit extreme environments caused by shock, Protected by a comprehensive
pressure, puncture, and chemicals. 3 year warranty.
KWSA80K Communication Device
Specifications
KWSA80K KWSA80K
Core Platform/Funtions Physical Characteristics
Operating System Android N Size (W x H x D) 157.9mm x 79.1mm x 18mm
Chipset Snapdragon 630 OctaCore @ 2.2GHz 64bit (Exclude protrusion)
Band LTE: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B14/ Weight 350g
B20/B25/B26/B27/B28/ B29/B30/B38/B39/ Dedicated Buttons PTT, Volume Up/Down, Emergency, Power On/Off,
B40/B41/B66 Navigation (Home/Back/Recent), Programmable Button
UMTS: B1/B2/B4/B5/B8
Ports Optional connector(for future options),
CDMA/EVDO1: BC0/BC1/BC10
USB-C, Secure Audio Connector, Charging Pins, Dual Nano SIM Slots
GSM: 850/900/1800/1900MHz
Antenna MIMO antenna for LTE ATEX/IECEx Certified Ex II 3G Ex ic IIC T4 Gc IP64
Ex II 3D Ex ic IIIC T135◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
