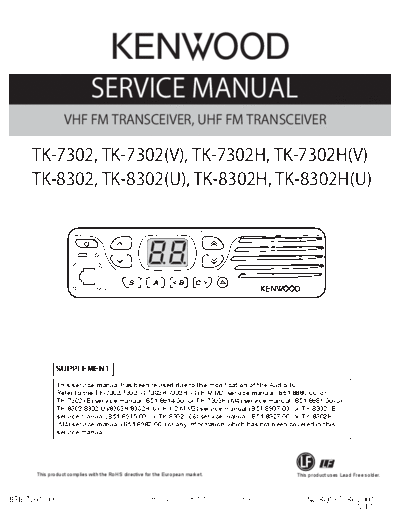

Image preview - the first page of the document
>> Download TK-7302HV_RQ185_B5B-7261-00 documenatation <<
Text preview - extract from the document
SUPPLEMENT
This service manual has been revised due to the modification of the Audio IC.
Refer to the TK-7302/7302(V)/7302H/7302H(V) (K,M,M2) service manual (B51-8886-00) or
TK-7302 (E) service manual (B51-8914-00) or TK-7302H (M4) service manual (B51-8981-00) or
TK-8302/8302(U)/8302H/8302H(U) (K,K2,M,M2) service manual (B51-8907-00) or TK-8302 (E)
service manual (B51-8915-00) or TK-8302 (C6) service manual (B51-8927-00) or TK-8302H
(M4) service manual (B51-8982-00) for any information which has not been covered in this
service manual.
This product complies with the RoHS directive for the European market. This product uses Lead Free solder.
5
TK-7302/7302(V)/7302H/7302H(V), TK-8302/8302(U)/8302H/8302H(U)
CONTENTS
SERVICE MANUAL LIST ........................................ 3
PARTS LIST
TK-7302 / 7302(V) / 7302H / 7302H(V) .....................4
TK-8302 / 8302(U) / 8302H / 8302H(U) ....................16
EXPLODED VIEW ................................................... 29
APPENDIX
PC BOARD (Complete View)
TX-RX UNIT (XC1-167X-XX)
SCHEMATIC DIAGRAM (Complete View)
2
TK-7302/7302(V)/7302H/7302H(V), TK-8302/8302(U)/8302H/8302H(U)
3
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
TK-7302/7302(V)/7302H/7302H(V)
DISPLAY UNIT (X54-3890-21)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C16 CK73HBB1E103K CHIP C 0.01UF K
TK-7302/7302(V)/7302H/7302H(V) C27 CC73HCH1H101J CHIP C 100PF J
1 1B A02-4073-41 PLASTIC CABINET C28 CK73HBB1H102K CHIP C 1000PF K
2 3A A62-1171-03 PANEL ASSY C29 CK73HBB1H102K CHIP C 1000PF K
3 2B A1A-0091-00 CHASSIS C30 CK73HBB1H102K CHIP C 1000PF K
4 2B B09-0732-03 CAP(D-SUB)
5 3A B10-2794-03 FRONT GLASS C31 CK73HBB1H102K CHIP C 1000PF K
C32 CK73HBB1H102K CHIP C 1000PF K
6 3A B43-1629-04 BADGE C33 CK73HBB1H102K CHIP C 1000PF K
7 2D B62-2150-30 INSTRUCTION MANUAL D,E,F C34 CK73HBB1H102K CHIP C 1000PF K
7 2D B62-2167-20 INSTRUCTION MANUAL A,B,C C35 CK73HBB1H102K CHIP C 1000PF K
7 2D B62-2169-30 INSTRUCTION MANUAL G
9 2B E04-0167-15 RF COAXIAL RECEPTACLE (M) A,B,C,D,E,F C36 CK73HBB1H102K CHIP C 1000PF K
C38 CK73HBB1H102K CHIP C 1000PF K
9 2B E04-0454-15 RF COAXIAL RECEPTACLE (BNC) G C39 CC73HCH1H101J CHIP C 100PF J
10 1C E30-7523-65 DC CORD ASSY ACCESSORY C40 CK73HBB1H102K CHIP C 1000PF K
38 2B E30-7684-35 DC CORD C41 CC73HCH1H101J CHIP C 100PF J
39 2A E37-1461-05 FLAT CABLE (30P PANEL)
36 2A E2D-0084-00 GROUND TERMINAL(AF AMP) C43 CK73HBB1H471K CHIP C 470PF K
C44 CK73HBB1H471K CHIP C 470PF K
37 2B E23-1346-04 GROUND TERMINAL (CLIP) A,D,G C45 CK73HBB1H471K CHIP C 470PF K
41 2B F10-3140-13 SHIELDING COVER (POWER MODULE) A,D,G C46 CK73HBB1H471K CHIP C 470PF K
14 1C F52-0024-05 FUSE (BLADE TYPE) 15A ACCESSORY B,C,E,F C47 CK73HBB1H102K CHIP C 1000PF K
14 1C FZB10AU-100 FUSE (BLADE TYPE) 10A ACCESSORY A,D,G
43 1A G10-1365-05 FIBROUS SHEET C48 CK73HBB1H102K CHIP C 1000PF K
C49 CK73HBB1H102K CHIP C 1000PF K
44 2B G53-1643-04 PACKING (DC CORD) C50 CC73HCH1H101J CHIP C 100PF J
45 2B G53-1662-04 PACKING (RECEPTACLE) CN1 E40-6851-05 FLAT CABLE CONNECTOR
46 1B G53-1819-21 PACKING (CHASSIS) CN2 E23-1262-05 TERMINAL
47 3A G53-1820-03 PACKING (PANEL)
21 1C,1D H12-3178-05 PACKING FIXTURE CP1 RK74HB1J102J CHIP-COM 1.0K J 1/16W
D1 B30-2337-05 LED (YELLOW)
22 2D H52-2674-22 ITEM CARTON CASE D2 B30-2337-05 LED (YELLOW)
24 3D J19-1584-15 HOLDER (MIC HANGER) A,B,C D3 B30-2337-05 LED (YELLOW)
49 3B J19-5528-03 HOLDER (SPEAKER) D4 B30-2337-05 LED (YELLOW)
26 1C J29-0726-03 BRACKET ACCESSORY
51 3A K29-9448-01 KEY TOP D5 B30-2337-05 LED (YELLOW)
D20 DA221 DIODE ARRAY
A 1A,1B N35-2604-43 BINDING HEAD MACHINE SCREW D22 3A B30-2321-05 LED (BLUE LED)
B 1A,2A,2B N67-3008-48 PAN HEAD SEMS SCREW D23 3A B30-2151-05 LED (RED/GREEN)
C 3A,3B N80-2008-48 BRAZIER HEAD TAPTITE SCREW D33 DZ2J062(M) ZENER DIODE
D 2A,2B N87-2608-48 BRAZIER HEAD TAPTITE SCREW
E 1A N67-3010-48 PAN HEAD SEMS SCREW D37 3A HDSP-521A LED
IC1 TC62D748CFNAG MOS-IC
30 3D N99-2039-05 SCREW SET ACCESSORY J1 3A E58-0535-05 MODULAR JACK(MIC)
53 3A T07-0785-15 SPEAKER L1 LB73G0BD-005 CHIP FERRITE
33 2C T91-0624-95 MICROPHONE (KMC-30) ACCESSORY B Q1 LTC044EEBFS8 DIGI TRANSISTOR
34 2C T91-0639-75 MICROPHONE (KMC-35) ACCESSORY A,C
- X54-3890-21 DISPLAY UNIT Q2 LTC044EEBFS8 DIGI TRANSISTOR
Q3 KRA225S TRANSISTOR
- XCA-024E-01 SERVICE TX-RX UNIT G Q4 KRC102S-P TRANSISTOR
- XCA-024K-01 SERVICE TX-RX UNIT A Q5 2SC3928A TRANSISTOR
- XCA-024K-02 SERVICE TX-RX UNIT B Q6 2SC3928A TRANSISTOR
- XCA-024K-03 SERVICE TX-RX UNIT C
- XCA-024M-00 SERVICE TX-RX UNIT D Q7 LTA014EEBFS8 DIGI TRANSISTOR
- XCA-024M-01 SERVICE TX-RX UNIT E Q8 LTA014EEBFS8 DIGI TRANSISTOR
- XCA-024M-02 SERVICE TX-RX UNIT F Q9 2SC3928A TRANSISTOR
R1 RK73HB1J101J CHIP R 100 J 1/16W
R2 RK73FB2B000J CHIP R 0.0 J 1/8W
DISPLAY UNIT (X54-3890-21) R3 RK73HB1J102J CHIP R 1.0K J 1/16W
101 J31-0565-15 COLLAR R4 RK73HB1J102J CHIP R 1.0K J 1/16W
C1 CK73HBB1E103K CHIP C 0.01UF K R5 RK73HB1J102J CHIP R 1.0K J 1/16W
C8 CC73HCH1H101J CHIP C 100PF J R6 RK73HB1J102J CHIP R 1.0K J 1/16W
C9 CK73HBB1H102K CHIP C 1000PF K R7 RK73HB1J102J CHIP R 1.0K J 1/16W
C10 CK73HBB1E103K CHIP C 0.01UF K
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K,
4 D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
DISPLAY UNIT (X54-3890-21)
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
R8 RK73HB1J102J CHIP R 1.0K J 1/16W C46 CK73HBB1H102K CHIP C 1000PF K
R10 RK73HB1J562J CHIP R 5.6K J 1/16W C48 CC730AD1H104J CHIP C 0.1UF J
R11 RK73HB1J562J CHIP R 5.6K J 1/16W C49 C93-1906-05 CHIP C 0.047UH J
R12 RK73HB1J682J CHIP R 6.8K J 1/16W C54 CC73HCH1H470J CHIP C 47PF J
R21 RK73HB1J222J CHIP R 2.2K J 1/16W C56 CC73HCH1H101J CHIP C 100PF J
R22 RK73HB1J820J CHIP R 82 J 1/16W C57 CK73HBB1H102K CHIP C 1000PF K
R23 RK73HB1J121J CHIP R 120 J 1/16W C58 CK73HBB1H102K CHIP C 1000PF K
R26 RK73HB1J000J CHIP R 0.0 J 1/16W C59 CK73FBB0J106K CHIP C 10UF K
R27 RK73HB1J000J CHIP R 0.0 J 1/16W C61 CC73HCH1H101J CHIP C 100PF J
R28 RK73HB1J103J CHIP R 10K J 1/16W C62 CC73HCH1H330J CHIP C 33PF J
R29 RK73HB1J103J CHIP R 10K J 1/16W C63 CC73HCH1H101J CHIP C 100PF J
R34 RK73HB1J102J CHIP R 1.0K J 1/16W C64 CC73HCH1HR75B CHIP C 0.75PF B
R35 RK73HB1J123J CHIP R 12K J 1/16W C65 CK73HBB1H102K CHIP C 1000PF K
R36 RK73HB1J472J CHIP R 4.7K J 1/16W C66 CK73HBB1H102K CHIP C 1000PF K
R37 RK73HB1J000J CHIP R 0.0 J 1/16W C67 CK73GBB1H102K CHIP C 1000PF K
R38 RK73HB1J100J CHIP R 10 J 1/16W C68 CK73GBB1H102K CHIP C 1000PF K
R39 RK73HB1J150J CHIP R 15 J 1/16W C69 CC73HCH1H3R5B CHIP C 3.5PF B
R40 RK73HB1J100J CHIP R 10 J 1/16W C70 CC73HCH1H040B CHIP C 4.0PF B
R41 RK73HB1J222J CHIP R 2.2K J 1/16W C71 CK73GBB1H102K CHIP C 1000PF K
R42 RK73HB1J102J CHIP R 1.0K J 1/16W C72 CK73GBB1H102K CHIP C 1000PF K
R43 RK73GB2A101J CHIP R 100 J 1/10W C73 CC73HCH1H060B CHIP C 6.0PF B
R45 RK73HB1J000J CHIP R 0.0 J 1/16W C74 CC73HCH1H080B CHIP C 8.0PF B
C75 CC73HCH1H040B CHIP C 4.0PF B
C76 CC73HCH1H060B CHIP C 6.0PF B
C77 CK73HBB1H471K CHIP C 470PF K
C78 CC73HCH1H010B CHIP C 1.0PF B
C79 CC73HCH1H010B CHIP C 1.0PF B
C80 CS77BB21C100M CHIP TNTL 10UF 16WV
C81 CK73HBB1H102K CHIP C 1000PF K
C82 CK73HBB1H471K CHIP C 470PF K
TX-RX UNIT (XC1-167X-XX) E-01:G K-01:A K-02:B K-06:C M-00:D M-01:E,F
201 2B E23-1353-04 GROUND TERMINAL G C83 CK73HBB1H102K CHIP C 1000PF K
C2 CC73HCH1H101J CHIP C 100PF J C84 CC73HCH1H180J CHIP C 18PF J
C4 CC73HCH1H101J CHIP C 100PF J C85 CC73HCH1H050B CHIP C 5.0PF B
C5 CK73HBB1H471K CHIP C 470PF K C86 CC73GCH1H050B CHIP C 5.0PF B
C7 CC73HCH1H101J CHIP C 100PF J C87 CK73HBB1H102K CHIP C 1000PF K
C8 CC73GCH1H101J CHIP C 100PF J C88 CK73HBB1H102K CHIP C 1000PF K
C10 CK73HBB1A104K CHIP C 0.1UF K C89 CK73HBB1H102K CHIP C 1000PF K
C11 CC73HCH1H101J CHIP C 100PF J C90 CC73GCH1H150J CHIP C 15PF J
C14 CC73HCH1H101J CHIP C 100PF J C91 CK73HBB1H102K CHIP C 1000PF K
C15 CC73HCH1H080B CHIP C 8.0PF B C92 CK73HB1C103K CHIP C 0.01UF K
C16 CK73HXR0J105K CHIP C 1.0UF K C94 CK73HBB1H102K CHIP C 1000PF K
C17 CK73HBB1A104K CHIP C 0.1UF K C95 CK73HBB1A104K CHIP C 0.1UF K
C18 CK73HBB1A104K CHIP C 0.1UF K C98 CK73GBB1H102K CHIP C 1000PF K
C19 CK73HBB1E103K CHIP C 0.01UF K C99 CK73HBB1H471K CHIP C 470PF K
C20 CK73HBB1E103K CHIP C 0.01UF K C102 CC73HCH1H270J CHIP C 27PF J
C22 CK73FBB0J106K CHIP C 10UF K C103 CC73HCH1H390J CHIP C 39PF J
C23 CK73HBB1A104K CHIP C 0.1UF K C104 CC73HCH1H060B CHIP C 6.0PF B
C24 CK73FBB0J106K CHIP C 10UF K C105 CC73HCH1H040B CHIP C 4.0PF B
C26 CK73HB1C103K CHIP C 0.01UF K C106 CC73HCH1H470J CHIP C 47PF J
C27 CK73HBB1A104K CHIP C 0.1UF K C300 CC73GCH1H101J CHIP C 100PF J A,B,C,D,E,F
C29 C93-1906-05 CHIP C 0.047UH J G C300 CC73GCH1H151J CHIP C 150PF J G
C32 CK73HBB1H471K CHIP C 470PF K C301 CC73HCH1H080B CHIP C 8.0PF B
C34 CK73HBB1H471K CHIP C 470PF K C302 CC73HCH1H070B CHIP C 7.0PF B
C35 CC73HCH1H060B CHIP C 6.0PF B C303 CC73HCH1H090B CHIP C 9.0PF B A,B,C,D,E,F
C36 CC73GCH1H080B CHIP C 8.0PF B C303 CC73HCH1H120J CHIP C 12PF J G
C37 CK73HBB1H471K CHIP C 470PF K C305 CK73HBB1H471K CHIP C 470PF K
C40 CC73HCH1H390J CHIP C 39PF J C307 CK73HBB1H102K CHIP C 1000PF K
C41 CC73HCH1H330J CHIP C 33PF J C313 CK73HBB1H102K CHIP C 1000PF K
C43 CS77MA1V0R1M CHIP TNTL 0.1UF 35WV C314 CC73HCH1H080B CHIP C 8.0PF B
C45 CS77BA1E010M CHIP TNTL 1.0UF 25WV C315 CK73HB1C223K CHIP C 0.022UF K
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K,
D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E 5
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C316 CC73HCH1H030B CHIP C 3.0PF B A,D,G C515 CK73HB1A105K CHIP C 1.0UF K A,B,C,D,E,F
C316 CC73HCH1H060B CHIP C 6.0PF B B,C,E,F C515 CK73HBB1A104K CHIP C 0.1UF K G
C317 CS77BA1A4R7M CHIP TNTL 4.7UF 10WV C516 CK73HBB1H102K CHIP C 1000PF K
C317 CS77MA1A4R7M CHIP TNTL 4.7UF 10WV C517 CK73HBB1E103K CHIP C 0.01UF K
C320 CK73GBB1H102K CHIP C 1000PF K C518 CK73HB1H391K CHIP C 390PF K
C322 CC73GCH1H151J CHIP C 150PF J G C519 CK73FBB0J106K CHIP C 10UF K
C322 CK73GB1H271K CHIP C 270PF K A,B,C,D,E,F C520 CK73HB1H391K CHIP C 390PF K
C333 CK73HBB1H471K CHIP C 470PF K C521 CK73HBB1A104K CHIP C 0.1UF K
C336 CC73GCH1H040B CHIP C 4.0PF B G C522 CK73HBB1A104K CHIP C 0.1UF K
C336 CK73GB1H221K CHIP C 220PF K A,B,C,D,E,F C523 CK73GBB1C104K CHIP C 0.1UF K
C338 CC73GCH1H220J CHIP C 22PF J A,B,C,D,E,F C524 CK73HBB1H102K CHIP C 1000PF K
C339 CK73GB1H221K CHIP C 220PF K G C525 CK73GXR0J475K CHIP C 4.7UF K
C339 CK73GBB1H102K CHIP C 1000PF K A,B,C,D,E,F C526 CK73HBB1H102K CHIP C 1000PF K
C340 CC73GCH1H101J CHIP C 100PF J A,B,C,D,E,F C527 CC73HCH1H101J CHIP C 100PF J G
C340 CC73GCH1H121J CHIP C 120PF J G C527 CC73HCH1H680J CHIP C 68PF J A,B,C,D,E,F
C341 CC73GCH1H101J CHIP C 100PF J A,B,C,D,E,F C528 CC73GCH1H330J CHIP C 33PF J
C342 CK73HBB1A104K CHIP C 0.1UF K C529 CK73HBB1E103K CHIP C 0.01UF K
C344 CK73GBB1H102K CHIP C 1000PF K C530 CK73HBB1A104K CHIP C 0.1UF K
C348 CC73GCH1H470J CHIP C 47PF J A,B,C,D,E,F C531 CK73HBB1H471K CHIP C 470PF K
C350 CC73GCH1H220J CHIP C 22PF J A,B,C,D,E,F C535 CK73HBB1H102K CHIP C 1000PF K
C351 C93-0555-05 CHIP C 5PF C A,D,G C538 CK73HBB1E103K CHIP C 0.01UF K
C351 C93-0559-05 CHIP C 9PF D B,C,E,F C541 CK73HBB1E103K CHIP C 0.01UF K
C354 CK73HBB1A104K CHIP C 0.1UF K C543 CC73HCH1H010B CHIP C 1.0PF B
C355 CK73GBB1H102K CHIP C 1000PF K C545 CC73HCH1H180J CHIP C 18PF J
C360 CK73GBB1H102K CHIP C 1000PF K C546 CC73HCH1H070B CHIP C 7.0PF B
C361 CK73GBB1H103K CHIP C 0.01UF K C550 CK73HBB1E103K CHIP C 0.01UF K
C362 CK73GBB1H103K CHIP C 0.01UF K C551 CK73GBB1A334K CHIP C 0.33UF K
C363 CC73GCH1H050B CHIP C 5.0PF B C553 CK73HBB1A104K CHIP C 0.1UF K
C364 C93-1877-05 CHIP C 12PF J C554 CC73HCH1H080B CHIP C 8.0PF B
C365 C93-1900-05 CHIP C 1000PF J C555 CK73HBB1H102K CHIP C 1000PF K
C366 C93-1900-05 CHIP C 1000PF J C556 CC73HCH1H150G CHIP C 15PF G
C367 CC73GCH1H020B CHIP C 2.0PF B B,C,E,F C557 CK73HBB1E103K CHIP C 0.01UF K
C367 CC73GCH1H080B CHIP C 8.0PF B A,D,G C558 CK73HBB1H102K CHIP C 1000PF K
C368 CC73GCH1H390J CHIP C 39PF J G C559 CK73GB1H471K CHIP C 470PF K
C368 CC73GCH1H430J CHIP C 43PF J A,B,C,D,E,F C560 CK73HBB1H102K CHIP C 1000PF K
C372 C93-1878-05 CHIP C 15PF J A,B,C,D,E,F C561 CK73HBB1H471K CHIP C 470PF K
C372 C93-1879-05 CHIP C 18PF J G C562 CK73HBB1E103K CHIP C 0.01UF K
C373 C93-0552-05 CHIP C 2PF C C563 CK73HBB1H102K CHIP C 1000PF K
C374 CM73F2H180J CHIP C 18PF J A,D,G C564 CK73HBB1H102K CHIP C 1000PF K
C374 CM73F2H200J CHIP C 20PF J B,C,E,F C565 CK73HBB1H471K CHIP C 470PF K
C376 CK73GBB1H102K CHIP C 1000PF K C573 CC73HCH1H010B CHIP C 1.0PF B
C381 C93-0554-05 CHIP C 4PF C C574 CC73HCH1H560J CHIP C 56PF J
C383 C93-1878-05 CHIP C 15PF J A,B,C,D,E,F C575 CC73HCH1H040B CHIP C 4.0PF B
C383 C93-1879-05 CHIP C 18PF J G C576 CK73HBB1H102K CHIP C 1000PF K
C384 CK73GBB1H102K CHIP C 1000PF K C577 CC73HCH1H010B CHIP C 1.0PF B
C391 CK73HBB1H102K CHIP C 1000PF K C578 CC73HCH1H270J CHIP C 27PF J G
C392 CK73HBB1H102K CHIP C 1000PF K C578 CC73HCH1H560J CHIP C 56PF J A,B,C,D,E,F
C500 CC73HCH1H470J CHIP C 47PF J C581 CC73HCH1H1R5B CHIP C 1.5PF B A,B,C,D,E,F
C501 CC73HCH1H180J CHIP C 18PF J C581 CC73HCH1H2R5B CHIP C 2.5PF B G
C504 CK73HB1C103K CHIP C 0.01UF K C582 CK73HBB1H102K CHIP C 1000PF K
C505 CC73HCH1H300J CHIP C 30PF J C583 CK73HBB1H471K CHIP C 470PF K
C506 CC73HCH1H100B CHIP C 10PF B C585 CK73HBB1A104K CHIP C 0.1UF K
C508 CC73HCH1H270J CHIP C 27PF J C586 CK73HBB1H102K CHIP C 1000PF K
C509 CK73HB1C103K CHIP C 0.01UF K C587 CK73GBB1A105K CHIP C 1.0UF K
C510 CK73HB1A105K CHIP C 1.0UF K A,B,C,D,E,F C588 CK73HBB1H102K CHIP C 1000PF K
C510 CK73HBB1A104K CHIP C 0.1UF K G C589 CK73HBB1H471K CHIP C 470PF K
C511 CK73HBB1A104K CHIP C 0.1UF K C590 CK73HBB1H102K CHIP C 1000PF K
C512 CK73HBB1A104K CHIP C 0.1UF K C591 CK73HBB1H471K CHIP C 470PF K
C513 CK73HBB1A104K CHIP C 0.1UF K C592 CK73GBB1A105K CHIP C 1.0UF K
C514 CK73HBB1A104K CHIP C 0.1UF K C593 CC73HCH1H020B CHIP C 2.0PF B G
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K,
6 D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C593 CC73HCH1H030B CHIP C 3.0PF B A,B,C,D,E,F C770 CK73FBB0J106K CHIP C 10UF K
C594 CC73HCH1H560J CHIP C 56PF J C771 CC73HCH1H101J CHIP C 100PF J
C595 CC73HCH1H030B CHIP C 3.0PF B C772 CK73HXR0J105K CHIP C 1.0UF K
C596 CK73HBB1H102K CHIP C 1000PF K C773 CC73HCH1H101J CHIP C 100PF J
C597 CC73HCH1H030B CHIP C 3.0PF B C774 CK73HXR0J105K CHIP C 1.0UF K
C598 CC73HCH1H470J CHIP C 47PF J G C775 CC73HCH1H391J CHIP C 390PF J
C598 CC73HCH1H560J CHIP C 56PF J A,B,C,D,E,F C777 CK73HXR0J105K CHIP C 1.0UF K
C599 CC73HCH1H020B CHIP C 2.0PF B A,B,C,D,E,F C778 CK73HB1E562K CHIP C 5600PF K
C599 CC73HCH1H030B CHIP C 3.0PF B G C779 CK73HBB1E103K CHIP C 0.01UF K
C601 CC73HCH1H040B CHIP C 4.0PF B C780 CK73HBB1A683K CHIP C 0.068UF K
C602 CC73HCH1H070B CHIP C 7.0PF B C784 CK73GB0J106K CHIP C 10UF K
C603 CC73HCH1H180J CHIP C 18PF J C785 CK73HBB1H332K CHIP C 3300PF K
C606 CK73HBB1H471K CHIP C 470PF K C787 CK73HBB1H332K CHIP C 3300PF K
C700 CK73HBB1H471K CHIP C 470PF K C788 CK73HBB1A683K CHIP C 0.068UF K
C701 CK73HBB1H471K CHIP C 470PF K C790 CK73GBB1H102K CHIP C 1000PF K
C702 CK73HBB1H471K CHIP C 470PF K C792 CK73HBB1H102K CHIP C 1000PF K G
C703 CK73HBB1H471K CHIP C 470PF K C793 CK73HBB1H102K CHIP C 1000PF K G
C704 CK73HBB1H102K CHIP C 1000PF K C794 CK73HBB1H471K CHIP C 470PF K
C705 CK73HBB1H471K CHIP C 470PF K C795 CK73GBB1H102K CHIP C 1000PF K
C706 CK73HBB1H102K CHIP C 1000PF K C796 CK73HXR0J105K CHIP C 1.0UF K
C707 CK73HBB1H471K CHIP C 470PF K C797 CK73HBB1H102K CHIP C 1000PF K
C708 CK73HBB1H102K CHIP C 1000PF K C807 CK73HBB1H102K CHIP C 1000PF K
C709 CK73HBB1H471K CHIP C 470PF K C808 CK73HBB1A104K CHIP C 0.1UF K
C711 CK73HBB1H471K CHIP C 470PF K C809 CK73GBB1C104K CHIP C 0.1UF K
C713 CK73HBB1H471K CHIP C 470PF K C810 CK73GBB1H102K CHIP C 1000PF K
C715 CK73HBB1H471K CHIP C 470PF K C813 CK73HBB1H102K CHIP C 1000PF K
C717 CK73HBB1H471K CHIP C 470PF K C814 CK73HBB1H102K CHIP C 1000PF K
C719 CK73HBB1H471K CHIP C 470PF K C816 CK73HBB1A104K CHIP C 0.1UF K
C721 CK73HBB1H471K CHIP C 470PF K C817 CK73HBB1E103K CHIP C 0.01UF K
C723 CK73HBB1H471K CHIP C 470PF K C819 CS77BB21C220M CHIP TNTL 22UF 16WV
C725 CK73HBB1H471K CHIP C 470PF K C820 CK73HBB1H102K CHIP C 1000PF K
C727 CK73HBB1H471K CHIP C 470PF K C821 CK73GBB1A105K CHIP C 1.0UF K
C729 CK73HBB1H471K CHIP C 470PF K C822 CK73HXR0J105K CHIP C 1.0UF K
C731 CK73HBB1H471K CHIP C 470PF K C824 CS77BB21C220M CHIP TNTL 22UF 16WV
C732 CK73HBB1H471K CHIP C 470PF K C825 CK73HBB1A104K CHIP C 0.1UF K
C735 CK73HBB1A104K CHIP C 0.1UF K C828 CK73HBB1A104K CHIP C 0.1UF K
C736 CK73GXR0J475K CHIP C 4.7UF K C829 CK73HBB1A104K CHIP C 0.1UF K
C739 CK73GBB1C104K CHIP C 0.1UF K C831 CK73HBB1A104K CHIP C 0.1UF K
C740 CK73HBB1A104K CHIP C 0.1UF K C832 CK73GB1A224K CHIP C 0.22UF K
C743 CK73HBB1C333K CHIP C 0.033UF K C833 CK73HBB1H102K CHIP C 1000PF K
C744 CK73HBB1H471K CHIP C 470PF K C835 CK73GBB1H102K CHIP C 1000PF K
C745 CK73HB1A473J CHIP C 0.047UF K C837 CK73HBB1H102K CHIP C 1000PF K
C746 CK73FBB0J106K CHIP C 10UF K C838 CK73HBB1H102K CHIP C 1000PF K
C747 CK73HBB1A104K CHIP C 0.1UF K C839 CS77MB21D4R7M CHIP TNTL 4.7UF 20WV
C748 CC73HCH1H390J CHIP C 39PF J C840 CK73GBB1H102K CHIP C 1000PF K
C749 CK73HBB1A104K CHIP C 0.1UF K C841 CK73GBB1A105K CHIP C 1.0UF K
C750 CK73HBB1A104K CHIP C 0.1UF K C842 CS77BA1A100M CHIP TNTL 10UF 10WV
C753 CK73GB0J106K CHIP C 10UF K C843 CE32CL1C470M ELECTRO 47UF 16WV
C754 CK73HBB1A104K CHIP C 0.1UF K C844 CK73HBB1H102K CHIP C 1000PF K
C755 CK73HBB1A104K CHIP C 0.1UF K C845 CK73HBB1E103K CHIP C 0.01UF K
C756 CC73HCH1H391J CHIP C 390PF J C846 CK73GBB1H102K CHIP C 1000PF K
C758 CK73HBB1H471K CHIP C 470PF K C847 CK73HBB1H102K CHIP C 1000PF K
C760 CK73HXR0J105K CHIP C 1.0UF K C849 CE32BM1C471M ELECTRO 470UF 16WV
C762 CK73HBB1A104K CHIP C 0.1UF K C850 CK73GBB1H102K CHIP C 1000PF K
C763 CK73HBB1A104K CHIP C 0.1UF K C851 CK73GBB1A105K CHIP C 1.0UF K
C764 CK73HBB1E103K CHIP C 0.01UF K C852 CK73HBB1E103K CHIP C 0.01UF K
C765 CK73GB0J106K CHIP C 10UF K C853 CK73HBB1H102K CHIP C 1000PF K
C767 CK73GBB1C104K CHIP C 0.1UF K C854 CK73HBB1H102K CHIP C 1000PF K
C768 CK73GB1H471K CHIP C 470PF K C855 CK73GBB1H102K CHIP C 1000PF K
C769 CK73HXR0J105K CHIP C 1.0UF K C856 CK73HBB1A104K CHIP C 0.1UF K
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K,
D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E 7
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C857 CC73HCH1H220J CHIP C 22PF J C941 CK73HBB1H471K CHIP C 470PF K
C858 CK73GB1H221K CHIP C 220PF K C942 CC73HCH1H120J CHIP C 12PF J
C859 CC73HCH1H470J CHIP C 47PF J C945 CC73GCH1H220J CHIP C 22PF J G
C860 CC73HCH1H101J CHIP C 100PF J C945 CK73GB1H471K CHIP C 470PF K A,B,C,D,E,F
C861 CK73GB1H471K CHIP C 470PF K C946 CC73GCH1H240J CHIP C 24PF J
C862 CK73HBB1H102K CHIP C 1000PF K C947 CK73HBB1H102K CHIP C 1000PF K
C863 CC73HCH1H220J CHIP C 22PF J C948 CK73GB0J106K CHIP C 10UF K
C864 CC73GCH1H470J CHIP C 47PF J C949 CC73HCH1H120J CHIP C 12PF J
C865 CC73HCH1H220J CHIP C 22PF J C950 CC73HCH1H101J CHIP C 100PF J
C866 CK73GBB1H102K CHIP C 1000PF K C952 CC73GCH1H220J CHIP C 22PF J
C867 CK73GB1H471K CHIP C 470PF K C953 CK73FB1E225K CHIP C 2.2UF K
C868 CK73HB1A334K CHIP C 0.33UF K C956 CK73HBB1H102K CHIP C 1000PF K
C869 CK73GB1H221K CHIP C 220PF K C957 CK73EB1E106K CHIP C 10UF K
C870 CK73HBB1H102K CHIP C 1000PF K C958 CK73HXR0J105K CHIP C 1.0UF K
C874 CK73GB0J105K CHIP C 1.0UF K C959 CK73HBB1H471K CHIP C 470PF K
C875 CK73HXR0J105K CHIP C 1.0UF K C960 CK73HBB1H471K CHIP C 470PF K
C876 CK73HXR0J105K CHIP C 1.0UF K C961 CK73HBB1H471K CHIP C 470PF K
C877 CK73HXR0J105K CHIP C 1.0UF K C962 CC73GCH1H101J CHIP C 100PF J G
C878 CC73HCH1H150J CHIP C 15PF J C962 CK73GB1H471K CHIP C 470PF K A,D
C879 CC73HCH1H220J CHIP C 22PF J C963 CC73GCH1H101J CHIP C 100PF J A,D
C880 CK73HBB1H102K CHIP C 1000PF K C963 CC73GCH1H820J CHIP C 82PF J G
C881 CK73HXR0J105K CHIP C 1.0UF K C964 CC73GCH1H470J CHIP C 47PF J A,D
C882 CK73GBB1A105K CHIP C 1.0UF K C964 CK73GBB1H102K CHIP C 1000PF K G
C883 CK73HB1A224K CHIP C 0.22UF K C965 CC73GCH1H270J CHIP C 27PF J G
C884 CE32BM1C471M ELECTRO 470UF 16WV C967 CC73HCH1H470J CHIP C 47PF J G
C885 CK73GBB1H102K CHIP C 1000PF K C968 CC73HCH1H470J CHIP C 47PF J G
C886 CK73GBB1H102K CHIP C 1000PF K C969 CC73GCH1H101J CHIP C 100PF J A,D
C887 CK73HBB1H102K CHIP C 1000PF K C969 CC73GCH1H470J CHIP C 47PF J G
C889 CK73HBB1H102K CHIP C 1000PF K C970 CK73GBB1H102K CHIP C 1000PF K G
C890 CC73HCH1H220J CHIP C 22PF J B,C,E,F C971 CK73HB1C105K CHIP C 1.0UF K
C890 CK73HBB1H471K CHIP C 470PF K A,D,G C972 CK73HB1C105K CHIP C 1.0UF K
C891 CC73HCH1H220J CHIP C 22PF J B,C,E,F C973 CK73HBB1C104K CHIP C 0.1UF K
C891 CK73HBB1H471K CHIP C 470PF K A,D,G C974 CC73HCH1H331J CHIP C 330PF J
C894 C93-0552-05 CHIP C 2PF C A,B,C,D,E,F C975 CC73HCH1H100B CHIP C 10PF B
C894 C93-0554-05 CHIP C 4PF C G C976 CK73HB1C103K CHIP C 0.01UF K
C898 CK73HBB1H102K CHIP C 1000PF K C977 CC73HCH1H101J CHIP C 100PF J
C915 CK73HBB1H102K CHIP C 1000PF K C978 CK73HBB1H102K CHIP C 1000PF K
C917 CC73HCH1H200J CHIP C 20PF J C981 CK73HBB1H102K CHIP C 1000PF K
C918 CC73HCH1H150J CHIP C 15PF J C982 CK73HBB1H471K CHIP C 470PF K G
C919 CC73HCH1H150J CHIP C 15PF J C990 CK73HBB1A104K CHIP C 0.1UF K
C920 CK73HBB1E103K CHIP C 0.01UF K C991 CE32BM1C471M ELECTRO 470UF 16WV
C921 CK73GBB1A105K CHIP C 1.0UF K C992 CK73HB1A393K CHIP C 0.039UF K
C922 CK73HBB1H102K CHIP C 1000PF K C993 CC73GCH1H121J CHIP C 120PF J G
C923 CK73HBB1A104K CHIP C 0.1UF K C999 CK73HB1E472K CHIP C 4700PF K B,C,E,F
C924 CK73HXR0J105K CHIP C 1.0UF K CD500 L79-1866-05 DIGI TRANSISTOR
C925 CK73HXR0J105K CHIP C 1.0UF K CF500 L72-0993-05 CERAMIC FILTER (450KHZ/WIDE)
C926 CK73HBB1H102K CHIP C 1000PF K CF501 L72-0999-05 CERAMIC FILTER (450KHZ/NARROW)
C927 CK73HBB1H102K CHIP C 1000PF K CN702 E40-5932-05 SOCKET FOR PIN ASSY
C928 CK73HBB1A104K CHIP C 0.1UF K CN724 E40-6847-05 FLAT CABLE CONNECTOR
C929 CK73HBB1H102K CHIP C 1000PF K CN751 E23-1262-05 TERMINAL A,D
C930 CK73HBB1A104K CHIP C 0.1UF K CP700 RK74HA1J102J CHIP R 1K J 1/16W
C931 CK73HBB1H102K CHIP C 1000PF K CP701 RK74HA1J102J CHIP R 1K J 1/16W
C932 CK73HBB1A104K CHIP C 0.1UF K CP702 RK74HA1J102J CHIP R 1K J 1/16W
C933 CK73HBB1H102K CHIP C 1000PF K CP704 RK74HA1J102J CHIP R 1K J 1/16W
C934 CC73HCH1H3R5B CHIP C 3.5PF B CP705 RK74HA1J102J CHIP R 1K J 1/16W
C935 CK73HBB1H102K CHIP C 1000PF K CP706 RK74HA1J102J CHIP R 1K J 1/16W
C937 CK73HBB1E103K CHIP C 0.01UF K D1 1SS389-F DIODE
C938 CK73HBB1H471K CHIP C 470PF K D1 KDR367E-P SCHOTTKY DIODE
C939 CK73HBB1A104K CHIP C 0.1UF K D4 HVC376B VARI CAP DIODE
C940 CK73FBB0J106K CHIP C 10UF K D5 HVC376B VARI CAP DIODE
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K,
8 D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
D6 1SV325F VARI CAP DIODE IC301 2B RA60H1317M1A MOS-IC B,C,E,F
D7 1SV325F VARI CAP DIODE IC500 NJM2591V BIPOLAR IC G
D8 1SV325F VARI CAP DIODE IC500 TA31136FNG MOS-IC A,B,C,D,E,F
D9 1SV325F VARI CAP DIODE IC501 BA10358F MOS-IC
D10 1SV325F VARI CAP DIODE IC700 NJM2100V-ZB BIPOLAR IC
D11 1SV325F VARI CAP DIODE IC701 CD686Q3 MOS-IC
D12 1SV278F VARI CAP DIODE IC702 F364AEDFBKCUF MCU IC
D13 HVC376B VARI CAP DIODE
D14 HVC376B VARI CAP DIODE IC703 EX24064ASAS0I ROM IC
D15 1SS390 DIODE IC704 TA4809BF ANALOG IC
D16 1SS390 DIODE IC705 2A LA4631VC-XE ANALOG IC
D17 1SS390 DIODE IC706 XC6221B332N-G MOS-IC
D300 UDZW5.1B ZENER DIODE IC707 TA7805F-NQ MOS-IC
D301 1SS355 DIODE IC708 BD4740G MOS-IC
D302 L407CDB DIODE IC709 XC6120N302N-G MOS-IC
D303 L407CDB DIODE IC710 XC6221B332N-G MOS-IC
D304 L8103R DIODE G IC712 BD7542FVM MOS-IC
D304 RKP351KW-1P2 DIODE A,B,C,D,E,F J700 1B E58-0567-05 SUB SOCKET D
D305 L8103R DIODE G J701 2A E1B-0001-00 3.5D PHONE JACK(EXT SP)
D305 RKP351KW-1P2 DIODE A,B,C,D,E,F L2 L41-4791-08 SMALL FIXED INDUCTOR (4.7NH)
D310 UDZW3.3(B) DIODE L3 L92-0442-05 CHIP FERRITE
D311 UDZW3.3(B) DIODE L4 LB73G0BV-001 CHIP FERRITE
D312 1SS390 DIODE G L7 LB73H0AV-003 CHIP FERRITE
D312 HSC277 DIODE A,B,C,D,E,F L9 LB73H0AV-003 CHIP FERRITE
D313 HSB88AS-E DIODE A,D L17 LB73G0BV-001 CHIP FERRITE
D313 MA3J742 DIODE B,C,E,F L18 L41-1588-14 SMALL FIXED INDUCTOR (150NH)
D313 RB706F-40 DIODE G L19 L41-1288-14 SMALL FIXED INDUCTOR (120NH)
D314 HSB88AS-E DIODE A,D L20 L40-2702-86 SMALL FIXED INDUCTOR (27UH)
D314 MA3J742 DIODE B,C,E,F L21 L40-2702-86 SMALL FIXED INDUCTOR (27UH)
D314 RB706F-40 DIODE G L24 LB73G0BV-001 CHIP FERRITE
D500 MC2858-T111 DIODE L25 L40-1085-71 SMALL FIXED INDUCTOR (100NH)
D501 MC2858-T111 DIODE L26 L40-1085-71 SMALL FIXED INDUCTOR (100NH)
D506 1SV305F VARI CAP DIODE L27 LK73H0AM10NJ MULTILAYER CHIP INDUCTOR(10NH)
D508 1SV305F VARI CAP DIODE L28 LK73H0AM22NJ MULTILAYER CHIP INDUCTOR(22NH)
D509 1SV305F VARI CAP DIODE L29 LK73G0AQ100K MULTILAYER CHIP INDUCTOR(10UH)
D510 1SV305F VARI CAP DIODE L30 LK73G0AQ4R7K MULTILAYER CHIP INDUCTOR(4.7UH)
D700 DA221 DIODE ARRAY L31 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH)
D701 DA221 DIODE ARRAY L32 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH)
D702 DA221 DIODE ARRAY L33 LK73G0AQ100K MULTILAYER CHIP INDUCTOR(10UH)
D703 DA221 DIODE ARRAY L34 L40-2702-86 SMALL FIXED INDUCTOR (27UH)
D704 DA221 DIODE ARRAY L35 LK73G0AQ4R7K MULTILAYER CHIP INDUCTOR(4.7UH)
D705 DA221 DIODE ARRAY L36 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH)
D706 DA221 DIODE ARRAY L37 L40-2702-86 SMALL FIXED INDUCTOR (27UH)
D707 DA221 DIODE ARRAY L38 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH)
D708 DA221 DIODE ARRAY L39 L40-6875-71 SMALL FIXED INDUCTOR (68NH)
D709 DA221 DIODE ARRAY L300 LK73H0AM18NJ MULTILAYER CHIP INDUCTOR(18UH) A,B,C,D,E,F
D710 DA221 DIODE ARRAY L300 LK73H0AM6N8J MULTILAYER CHIP INDUCTOR(6.8UH) G
D711 MC2858-T111 DIODE L301 LK73H0AM10NJ MULTILAYER CHIP INDUCTOR(10NH) A,B,C,D,E,F
D712 1SS372F SCHOTTKY DIODE L301 LK73H0AM6N8J MULTILAYER CHIP INDUCTOR(6.8UH) G
D715 UDZW18(B) ZENER DIODE L302 LK73G0AF18NJ MULTILAYER CHIP INDUCTOR(18NH) A,D,G
D717 Z5W27V SURGE ABSORBER L302 LK73G0AF22NJ MULTILAYER CHIP INDUCTOR(22NH) B,C,E,F
D718 DA2S101 DIODE L303 LK73G0AF12NJ MULTILAYER CHIP INDUCTOR(12NH)
D719 RN141S DIODE L304 LK73G0AF15NJ MULTILAYER CHIP INDUCTOR(15NH)
D720 RN141S DIODE L305 LK73G0AFR12J MULTILAYER CHIP INDUCTOR(120NH)
D721 GN1G DIODE L308 LB73Z0AF-001 CHIP FERRITE
F700 F53-0327-15 FUSE (4A) L309 LB73Z0AF-001 CHIP FERRITE
IC1 MB15E03SL-E1 MOS-IC L310 LB73Z0AF-001 CHIP FERRITE
IC2 BD7542FVM MOS-IC L311 L34-1039-05 AIR-CORE COIL (1.5T)
IC300 BA10358F MOS-IC L312 L34-4902-05 AIR-CORE COIL (9.5T)
IC301 2B RA30H1317M123 MOS-IC A,D,G L313 L34-4903-05 AIR-CORE COIL (5T)
A:TK-7302(V) K, B:TK-7302H K, C:TK-7302H(V) K, If a part reference number is listed in a shaded box,
D:TK-7302 M, E:TK-7302H M, F:TK-7302H M4, G:TK-7302 E 9
that part does not come with the PCB.
TK-7302/7302(V)/7302H/7302H(V)
PARTS LIST
TX-RX UNIT (XC1-167X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
L314 L34-4903-05 AIR-CORE COIL (5T) Q721 LTC044EEBFS8 DIGI TRANSISTOR
L315 L34-4903-05 AIR-CORE COIL (5T) Q722 KTC4075E(Y,GR) TRANSISTOR
L316 L34-4902-05 AIR-CORE COIL (9.5T) Q723 RE1C001UN FET
L501 LK73G0AQR47K MULTILAYER CHIP INDUCTOR(470NH) Q724 2SJ645 FET
L503 L40-5681-86 SMALL FIXED INDUCTOR (0.56UH) Q725 KTC4075E(Y,GR) TRANSISTOR
L504 LK73H0AM27NJ MULTILAYER CHIP INDUCTOR(27NH) Q728 2SC4116(Y)F TRANSISTOR
L505 L41-4785-39 SMALL FIXED INDUCTOR (0.47UH) Q728 KTC4075-P TRANSISTOR
L506 L41-4785-39 SMALL FIXED INDUCTOR (0.47UH) Q729 KTC4075E(Y,GR) TRANSISTOR
L512 L41-5678-14 SMALL FIXED INDUCTOR (56NH) Q730 2SC5108F/Y/ TRANSISTOR
L514 L41-6878-45 SMALL FIXED INDUCTOR (68NH) Q731 2SC5108F/Y/ TRANSISTOR
L515 LK73G0AF22NJ MULTILAYER CHIP INDUCTOR(22NH) Q732 2SC5108F/Y/ TRANSISTOR
L517 L41-5678-14 SMALL FIXED INDUCTOR (56NH) Q733 LTC044EEBFS8 DIGI TRANSISTOR
L518 L41-5678-14 SMALL FIXED INDUCTOR (56NH) R3 RK73HB1J334J CHIP R 330K J 1/16W
L700 LB73G0BV-001 CHIP FERRITE R5 RK73HB1J102J CHIP R 1.0K J 1/16W
L702 LB73G0BV-001 CHIP FERRITE R6 RK73HB1J102J CHIP R 1.0K J 1/16W
L704 LK73H0AM27NJ MULTILAYER CHIP INDUCTOR(27NH) R7 RK73HB1J102J CHIP R 1.0K J 1/16W
L706 LK73H0AM22NJ MULTILAYER CHIP INDUCTOR(22NH) R8 RK73HB1J152J CHIP R 1.5K J 1/16W
L707 L40-6875-57 SMALL FIXED INDUCTOR (68NH) R10 RK73HB1J100J CHIP R 10 J 1/16W
L708 L40-6875-92 SMALL FIXED INDUCTOR (68NH) R12 RK73HB1J100J CHIP R 10 J 1/16W
L711 LB73H0AV-003 CHIP FERRITE R15 RK73HB1J473J CHIP R 47K J 1/16W
L712 LB73H0AV-003 CHIP FERRITE R16 RK73HB1J000J CHIP R 0.0 J 1/16W
L713 LB73H0AV-001 CHIP FERRITE R20 RK73HB1J102J CHIP R 1.0K J 1/16W
L714 LB73H0AV-003 CHIP FERRITE B,C,E,F,G R21 RK73HB1J000J CHIP R 0.0 J 1/16W A,B,C,D,E,F
Q3 2SC5108F/Y/ TRANSISTOR R21 RK73HB1J182J CHIP R 1.8K J 1/16W G
Q4 MCH3914-H/7/ FET R22 RK73HB1J000J CHIP R 0.0 J 1/16W G
Q5 RE1C001ZP FET R23 RK73HB1J223J CHIP R 22K J 1/16W
Q6 MCH3914-H/7/ FET R25 RK73HB1J000J CHIP R 0.0 J 1/16W
Q7 KRX102U TRANSISTOR R26 RK73HB1J153J CHIP R 15K J 1/16W
Q8 KTC4075E(Y,GR) TRANSISTOR R28 RK73HB1J000J CHIP R 0.0 J 1/16W
Q9 2SC5108F/Y/ TRANSISTOR R29 RK73HB1J221J CHIP R 220 J 1/16W
