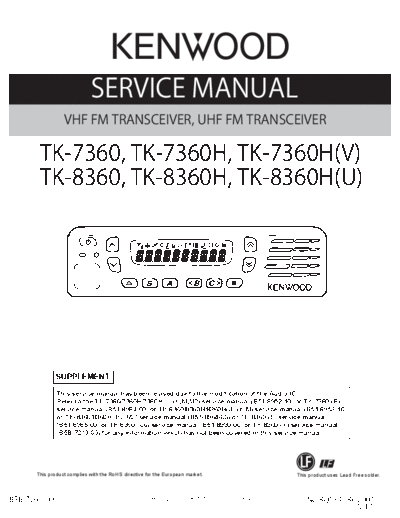

Image preview - the first page of the document
>> Download TK-7360HV_RQ184_B5B-7260-00 documenatation <<
Text preview - extract from the document
SUPPLEMENT
This service manual has been revised due to the modification of the Audio IC.
Refer to the TK-7360/7360H/7360H(V) (K,M,M2) service manual (B51-8952-10) or TK-7360 (E)
service manual (B51-8984-00) or TK-8360/8360H/8360H(U) (K,M) service manual (B51-8953-10)
or TK-8360/8360H (K2,M2) service manual (B51-8964-00) or TK-8360 (E) service manual
(B51-8985-00) or TK-8360 (C6) service manual (B51-8990-00) or TK-8360 (X) service manual
(B5B-7213-00) for any information which has not been covered in this service manual.
This product complies with the RoHS directive for the European market. This product uses Lead Free solder.
5
TK-7360/7360H/7360H(V), TK-8360/8360H/8360H(U)
CONTENTS
SERVICE MANUAL LIST ........................................ 3
PARTS LIST
TK-7360 / 7360H / 7360H(V) ................................. 4
TK-8360 / 8360H / 8360H(U) .................................16
EXPLODED VIEW ................................................... 29
APPENDIX
PC BOARD (Complete View)
TX-RX UNIT (XC1-168X-XX)
SCHEMATIC DIAGRAM (Complete View)
2
TK-7360/7360H/7360H(V), TK-8360/8360H/8360H(U)
3
TK-7360/7360H/7360H (V)
PARTS LIST
indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
TK-7360/7360H/7360H(V)
DISPLAY UNIT (X54-3900-20)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
TK-7360/7360H/7360H(V) DISPLAY UNIT (X54-3900-20)
1 1B A02-4073-41 PLASTIC CABINET C1 CC73HCH1H101J CHIP C 100PF J
2 2B A1A-0091-00 CHASSIS C2 CK73HB1H221K CHIP C 220PF K
3 3A A62-1180-13 PANEL ASSY C3 CK73HB1H221K CHIP C 220PF K
5 2B B09-0732-03 CAP(D-SUB) C4 CC73HCH1H101J CHIP C 100PF J
7 3A B43-1650-04 BADGE C5 CK73HB1H221K CHIP C 220PF K
8 2D B62-2278-10 INSTRUCTION MANUAL (E/R) ACCESSORY C,D C6 CK73HBB1H471K CHIP C 470PF K
8 2D B62-2279-10 INSTRUCTION MANUAL (E/S/F) ACCESSORY A,B C7 CK73HBB1H102K CHIP C 1000PF K
8 2D B62-2282-20 INSTRUCTION MANUAL (8L) ACCESSORY F C8 CK73HB1H221K CHIP C 220PF K
8 2D B62-2291-10 INSTRUCTION MANUAL (E) ACCESSORY E C9 CK73HBB1H471K CHIP C 470PF K
10 2B E04-0167-15 RF COAXIAL RECEPTACLE (M) A,B,C,D,E C10 CK73HBB1H102K CHIP C 1000PF K
10 2B E04-0454-15 RF COAXIAL RECEPTACLE (BNC) F C11 CK73HB1H221K CHIP C 220PF K
11 2B E23-1346-04 GROUND TERMINAL(CLIP) A,B,D,F C12 CC73HCH1H101J CHIP C 100PF J
12 1C E30-7523-65 DC CORD ASSY ACCESSORY C13 CK73HBB1E103K CHIP C 0.01UF K
13 2B E30-7684-35 DC CORD C14 CK73HBB1H102K CHIP C 1000PF K
14 2A E37-1461-05 FLAT CABLE (30P) C15 CK73HBB1H102K CHIP C 1000PF K
15 1B F10-3140-13 SHIELDING COVER C,E,F C20 CC73HCH1H101J CHIP C 100PF J
16 1C F52-0024-05 FUSE (BLADE TYPE) 15A ACCESSORY A,B,D C21 CK73HBB1E103K CHIP C 0.01UF K
16 1C FZB10AU-100 FUSE (BLADE TYPE) 15A ACCESSORY C,E,F C22 CK73HB1H221K CHIP C 220PF K
17 1A G10-1365-04 FIBROUS SHEET C23 CK73HBB1H102K CHIP C 1000PF K
18 3B G13-2363-04 CUSHION C24 CK73HBB1E103K CHIP C 0.01UF K
19 2B G53-1643-04 PACKING(DC CORD) C25 CK73HBB1H471K CHIP C 470PF K
20 2B G53-1662-04 PACKING (RECEPTACLE) C26 CK73HBB1H471K CHIP C 470PF K
21 1B G53-1819-21 PACKING (CHASSIS) C27 CK73HB1A105K CHIP C 1.0UF K
22 2A G53-1820-03 PACKING (PANEL) C28 CK73HB1A105K CHIP C 1.0UF K
23 3A G53-1858-03 PACKING(SP) C29 CK73HBB1H102K CHIP C 1000PF K
25 1C,1D H12-3178-05 PACKING FIXTURE C30 CK73HBB1H102K CHIP C 1000PF K
26 2D H52-2674-22 ITEM CARTON CASE C31 CK73HBB1H102K CHIP C 1000PF K
28 3D J19-1584-15 HOLDER (MIC HANGER) A,B C32 CK73HBB1C473K CHIP C 0.047UF K
29 3A J19-5542-12 HOLDER(SP) C33 CK73HBB1C473K CHIP C 0.047UF K
30 1C J29-0726-03 BRACKET ACCESSORY CN1 E40-6851-05 FLAT CABLE CONNECTOR
32 3A K29-9479-01 KEY TOP CP1 RK74HB1J102J CHIP-COM 1.0K J 1/16W
A 1A,1B N35-2604-43 BINDING HEAD MACHINE SCREW 101 2A B11-1885-03 ILLUMINATION GUIDE
B 1A,1B,2B N67-3008-48 PAN HEAD SEMS SCREW 102 2A B38-0936-15 LCD
C 2B N87-2608-48 BRAZIER HEAD TAPTITE SCREW 103 2A E29-1231-15 INTER CONNECTOR(LCD)
D 1A N67-3010-48 PAN HEAD SEMS SCREW 104 2A J21-8629-03 MOUNTING HARDWARE (LCD)
34 3D N99-2039-05 SCREW SET ACCESSORY D1 UDZW6.2(B) ZENER DIODE
36 3A T07-0785-15 SPEAKER D2 DA221 DIODE ARRAY
37 2C T91-0624-95 MICROPHONE (KMC-30) ACCESSORY A D5 B30-2337-05 LED (YELLOW)
38 2C T91-0639-75 MICROPHONE (KMC-35) ACCESSORY B D6 B30-2337-05 LED (YELLOW)
- X54-3900-20 DISPLAY UNIT D7 B30-2337-05 LED (YELLOW)
- XCA-022E-01 SERVICE TX-RX UNIT F D8 B30-2337-05 LED (YELLOW)
- XCA-022K-01 SERVICE TX-RX UNIT A D9 B30-2337-05 LED (YELLOW)
- XCA-022K-02 SERVICE TX-RX UNIT B D10 MC2850 DIODE
- XCA-022M-00 SERVICE TX-RX UNIT C D11 B30-2337-05 LED (YELLOW)
- XCA-022M-01 SERVICE TX-RX UNIT D D12 B30-2337-05 LED (YELLOW)
- XCA-022M-02 SERVICE TX-RX UNIT E D13 B30-2337-05 LED (YELLOW)
D14 B30-2337-05 LED (YELLOW)
D15 B30-2337-05 LED (YELLOW)
D16 B30-2337-05 LED (YELLOW)
D17 B30-2337-05 LED (YELLOW)
D18 B30-2337-05 LED (YELLOW)
D19 B30-2337-05 LED (YELLOW)
D20 B30-2337-05 LED (YELLOW)
D21 B30-2337-05 LED (YELLOW)
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M
4 D:TK-7360H M E:TK-7360 M2 F:TK-7360 E
TK-7360/7360H/7360H (V)
PARTS LIST
DISPLAY UNIT (X54-3900-20)
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
D22 3A B30-2321-05 LED (BLUE LED) C8 CK73HBB1A104K CHIP C 0.1UF K
D23 3A B30-2151-05 LED (RED/GREEN) C9 CK73HBB1A104K CHIP C 0.1UF K
D24 B30-2337-05 LED (YELLOW) C10 CK73HBB1H102K CHIP C 1000PF K
IC1 LC75857W-E MOS-IC C11 CC73GCH1H101J CHIP C 100PF J
J1 3A E58-0535-05 MODULAR JACK(MIC) C12 CC73HCH1H200J CHIP C 20PF J
L1 LB73G0BD-005 CHIP FERRITE C14 CC73HCH1H101J CHIP C 100PF J
Q2 LTC014EEBFS8 DIGI TRANSISTOR C16 CC73HCH1H101J CHIP C 100PF J
Q3 LTC014EEBFS8 DIGI TRANSISTOR C17 CC73HCH1H080B CHIP C 8.0PF B
Q4 LTA014EEBFS8 DIGI TRANSISTOR C19 CK73FBB0J106K CHIP C 10UF K
Q5 LTA014EEBFS8 DIGI TRANSISTOR C21 CK73HBB1A104K CHIP C 0.1UF K
Q6 LTC014EEBFS8 DIGI TRANSISTOR C22 CK73HXR0J105K CHIP C 1.0UF K
Q7 KRA225S TRANSISTOR C23 CK73HBB1A104K CHIP C 0.1UF K
Q8 DRC2114E0 TRANSISTOR C24 CK73HBB1A104K CHIP C 0.1UF K
Q9 KRX102U TRANSISTOR C25 CK73FBB0J106K CHIP C 10UF K
Q10 2SB798AZ(DLDK TRANSISTOR C27 CK73HBB1A104K CHIP C 0.1UF K
R1 RK73HB1J100J CHIP R 10 J 1/16W C28 CK73FBB0J106K CHIP C 10UF K
R2 RK73HB1J103J CHIP R 10K J 1/16W C29 CK73HBB1H471K CHIP C 470PF K
R3 RK73HB1J103J CHIP R 10K J 1/16W C30 CK73HBB1E103K CHIP C 0.01UF K
R4 RK73HB1J103J CHIP R 10K J 1/16W C31 CK73HBB1A104K CHIP C 0.1UF K
R5 RK73HB1J102J CHIP R 1.0K J 1/16W C32 CK73HBB1H102K CHIP C 1000PF K
R6 RK73HB1J150J CHIP R 15 J 1/16W C33 CK73HBB1H102K CHIP C 1000PF K
R7 RK73HB1J000J CHIP R 0.0 J 1/16W C36 CK73HBB1H471K CHIP C 470PF K
R8 RK73FB2B000J CHIP R 0.0 J 1/8W C37 CC73HCH1H040B CHIP C 4.0PF B
R9 RK73HB1J000J CHIP R 0.0 J 1/16W C40 CC73HCH1H060B CHIP C 6.0PF B
R12 RK73HB1J101J CHIP R 100 J 1/16W C41 CC73HCH1H030B CHIP C 3.0PF B F
R14 RK73HB1J122J CHIP R 1.2K J 1/16W C41 CC73HCH1H3R5B CHIP C 3.5PF B A,B,C,D,E
R15 RK73HB1J000J CHIP R 0.0 J 1/16W C42 CS77MA1V0R1M CHIP TNTL 0.1UF 35WV
R17 RK73HB1J000J CHIP R 0.0 J 1/16W C43 CK73HBB1H471K CHIP C 470PF K
R18 RK73HB1J181J CHIP R 180 J 1/16W C45 CC73HCH1H390J CHIP C 39PF J
R19 RK73HB1J820J CHIP R 82 J 1/16W C46 CC73HCH1H470J CHIP C 47PF J
R20 RK73HB1J000J CHIP R 0.0 J 1/16W C47 CK73HBB1H471K CHIP C 470PF K
R22 RK73HB1J000J CHIP R 0.0 J 1/16W C48 CS77BA1E010M CHIP TNTL 1.0UF 25WV A,B,C,D,E
R23 RK73HB1J473J CHIP R 47K J 1/16W C48 CS77MA1V2R2M CHIP TNTL 2.2UF 35WV F
R24 RK73HB1J103J CHIP R 10K J 1/16W C49 CC73HCH1H270J CHIP C 27PF J
R25 RK73HB1J103J CHIP R 10K J 1/16W C50 CC73GCH1H080B CHIP C 8.0PF B
R26 RK73HB1J123J CHIP R 12K J 1/16W C51 CC73HCH1H390J CHIP C 39PF J
R27 RK73HB1J473J CHIP R 47K J 1/16W C52 CC73HCH1H330J CHIP C 33PF J
R28 RK73HB1J151J CHIP R 150 J 1/16W C55 CK73HBB1H102K CHIP C 1000PF K
R29 RK73HB1J151J CHIP R 150 J 1/16W C56 CC73HCH1H060B CHIP C 6.0PF B A,B,C,D,E
R30 RK73HB1J121J CHIP R 120 J 1/16W C56 CC73HCH1H100C CHIP C 10PF C F
R31 RK73HB1J121J CHIP R 120 J 1/16W C57 C93-1906-05 CHIP C 0.047UH J A,B,C,D,E
R32 RK73HB1J103J CHIP R 10K J 1/16W C57 CS77MA1V0R1M CHIP TNTL 0.1UF 35WV F
R33 RK73HB1J000J CHIP R 0.0 J 1/16W C59 CK73HBB1H102K CHIP C 1000PF K
R34 RK73HB1J151J CHIP R 150 J 1/16W C61 C93-1906-05 CHIP C 0.047UH J F
R35 RK73HB1J151J CHIP R 150 J 1/16W C63 CC730AD1H104J CHIP C 0.1UF J
R36 RK73HB1J151J CHIP R 150 J 1/16W C65 CK73HBB1A104K CHIP C 0.1UF K
R37 RK73HB1J151J CHIP R 150 J 1/16W C68 CC73HCH1H390J CHIP C 39PF J
C70 CC73HCH1H680J CHIP C 68PF J
C72 CK73HBB1H102K CHIP C 1000PF K
C74 CK73HBB1H102K CHIP C 1000PF K
C75 CK73FBB0J106K CHIP C 10UF K
C77 CC73HCH1H820J CHIP C 82PF J
C79 CC73HCH1H300J CHIP C 30PF J
C80 CC73HCH1H101J CHIP C 100PF J
C82 CC73HCH1HR75B CHIP C 0.75PF B
TX-RX UNIT (XC1-168X-XX) E-01:F K-00:A,B,D M-01:C,E
C1 CK73HBB1H471K CHIP C 470PF K C83 CK73HBB1H102K CHIP C 1000PF K
C2 CC73HCH1H101J CHIP C 100PF J C84 CK73HBB1H102K CHIP C 1000PF K
C5 CC73HCH1H101J CHIP C 100PF J C85 CK73GBB1H102K CHIP C 1000PF K
C6 CC73HCH1H101J CHIP C 100PF J C86 CK73GBB1H102K CHIP C 1000PF K
C7 CK73HBB1H102K CHIP C 1000PF K C87 CC73HCH1H040B CHIP C 4.0PF B
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M
D:TK-7360H M E:TK-7360 M2 F:TK-7360 E 5
TK-7360/7360H/7360H (V)
PARTS LIST
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C88 CC73HCH1H040B CHIP C 4.0PF B C335 C93-0555-05 CHIP C 5PF C C,E
C89 CK73GBB1H102K CHIP C 1000PF K C335 C93-0559-05 CHIP C 9.0PF D A,B,D
C90 CK73GBB1H102K CHIP C 1000PF K C338 CK73HBB1A104K CHIP C 0.1UF K
C91 CC73HCH1H060B CHIP C 6.0PF B C339 CK73GBB1H102K CHIP C 1000PF K
C92 CC73HCH1H080B CHIP C 8.0PF B C342 CK73HBB1H102K CHIP C 1000PF K
C93 CC73HCH1H3R5B CHIP C 3.5PF B C343 CK73GBB1H102K CHIP C 1000PF K
C94 CC73HCH1H060B CHIP C 6.0PF B C345 CK73GBB1H103K CHIP C 0.01UF K
C95 CK73HBB1H471K CHIP C 470PF K C346 CK73HBB1H102K CHIP C 1000PF K
C96 CC73HCH1H010B CHIP C 1.0PF B C347 CK73HBB1H102K CHIP C 1000PF K
C97 CC73HCH1H010B CHIP C 1.0PF B C348 CK73GBB1H103K CHIP C 0.01UF K
C98 CS77BB21C100M CHIP TNTL 10UF 16WV C349 CK73HBB1H102K CHIP C 1000PF K
C99 CK73HBB1H102K CHIP C 1000PF K C350 CC73GCH1H050B CHIP C 5.0PF B
C100 CK73HBB1H471K CHIP C 470PF K C351 C93-1877-05 CHIP C 12PF J A,B,C,D,E
C101 CK73HBB1H102K CHIP C 1000PF K C351 C93-1882-05 CHIP C 33PF J F
C102 CC73HCH1H180J CHIP C 18PF J C352 C93-1900-05 CHIP C 1000PF J
C103 CC73HCH1H050B CHIP C 5.0PF B C353 C93-1900-05 CHIP C 1000PF J
C104 CC73GCH1H050B CHIP C 5.0PF B C354 CC73GCH1H020B CHIP C 2.0PF B A,B,D
C105 CK73HBB1H102K CHIP C 1000PF K C354 CC73GCH1H080B CHIP C 8.0PF B C,E,F
C106 CK73HBB1H102K CHIP C 1000PF K C355 CC73GCH1H430J CHIP C 43PF J
C107 CK73HBB1H102K CHIP C 1000PF K C356 C93-0555-05 CHIP C 5PF C F
C108 CC73HCH1H120J CHIP C 12PF J C356 C93-1878-05 CHIP C 15PF J A,B,C,D,E
C109 CK73HBB1H102K CHIP C 1000PF K C357 C93-0552-05 CHIP C 2PF C
C110 CC73GCH1H180J CHIP C 18PF J C358 CM73F2H180J CHIP C 18PF J C,E
C111 CK73HBB1E103K CHIP C 0.01UF K C358 CM73F2H200J CHIP C 20PF J A,B,D
C112 CK73HBB1H471K CHIP C 470PF K C358 CM73F2H220J CHIP C 20PF J F
C113 CK73HBB1H102K CHIP C 1000PF K C359 C93-0552-05 CHIP C 2PF C
C114 CK73FB0J226M CHIP C 22UF M C361 C93-0554-05 CHIP C 4PF C
C300 CC73GCH1H151J CHIP C 150PF J C363 C93-0559-05 CHIP C 9.0PF D F
C301 CC73HCH1H080B CHIP C 8.0PF B C363 C93-1878-05 CHIP C 15PF J A,B,C,D,E
C302 CC73HCH1H070B CHIP C 7.0PF B C364 CK73GBB1H102K CHIP C 1000PF K
C303 CK73HBB1H471K CHIP C 470PF K C366 CK73GBB1H102K CHIP C 1000PF K
C304 CC73HCH1H120J CHIP C 12PF J C367 CK73HBB1H102K CHIP C 1000PF K
C305 CK73HBB1H102K CHIP C 1000PF K C401 CK73HBB1A104K CHIP C 0.1UF K
C308 CC73HCH1H080B CHIP C 8.0PF B C,E,F C402 CK73HBB1E103K CHIP C 0.01UF K
C308 CC73HCH1H130J CHIP C 13PF J A,B,D C404 CS77BB21C220M CHIP TNTL 22UF 16WV
C309 CK73HBB1H102K CHIP C 1000PF K C406 CS77BB21C220M CHIP TNTL 22UF 16WV
C310 CC73HCH1H030B CHIP C 3.0PF B C,E,F C407 CK73HBB1A104K CHIP C 0.1UF K
C310 CC73HCH1H2R5B CHIP C 2.5PF B A,B,D C410 CK73HBB1A104K CHIP C 0.1UF K
C311 CK73HBB1E223K CHIP C 0.022UF K C411 CK73HBB1A104K CHIP C 0.1UF K
C312 CC73GCH1H151J CHIP C 150PF J C412 CK73HBB1A104K CHIP C 0.1UF K
C313 CS77BA1C4R7M CHIP TNTL 4.7UF 16WV C414 CK73HXR0J105K CHIP C 1.0UF K
C314 CK73GBB1H102K CHIP C 1000PF K C415 CK73GBB1H102K CHIP C 1000PF K
C319 CK73HBB1H471K CHIP C 470PF K C416 CK73HBB1H102K CHIP C 1000PF K
C321 CC73HCH1H101J CHIP C 100PF J C417 CK73HBB1H102K CHIP C 1000PF K
C322 CC73GCH1H040B CHIP C 4.0PF B F C418 CK73GBB1A105K CHIP C 1.0UF K
C322 CK73GB1H221K CHIP C 220PF K A,B,C,D,E C419 CK73GBB1H102K CHIP C 1000PF K
C324 CC73GCH1H220J CHIP C 22PF J A,B,C,D,E C420 CS77BA1A100M CHIP TNTL 10UF 10WV
C325 CC73GCH1H101J CHIP C 100PF J F C421 CK73HBB1H102K CHIP C 1000PF K
C325 CK73GBB1H102K CHIP C 1000PF K A,B,C,D,E C422 CK73HBB1E103K CHIP C 0.01UF K
C326 CC73GCH1H101J CHIP C 100PF J A,B,C,D,E C423 CK73GBB1H102K CHIP C 1000PF K
C326 CC73GCH1H121J CHIP C 120PF J F C424 CK73GBB1H102K CHIP C 1000PF K
C327 CC73GCH1H101J CHIP C 100PF J A,B,C,D,E C425 CK73HBB1E103K CHIP C 0.01UF K
C328 CK73HBB1A104K CHIP C 0.1UF K C426 CK73GBB1A105K CHIP C 1.0UF K
C330 CK73GBB1H102K CHIP C 1000PF K C427 CK73HBB1H102K CHIP C 1000PF K
C331 CC73GCH1H470J CHIP C 47PF J F C428 CK73FB1E225K CHIP C 2.2UF K
C332 CC73GCH1H220J CHIP C 22PF J F C429 CK73EB1E106K CHIP C 10UF K
C332 CK73GB1H471K CHIP C 470PF K A,B,C,D,E C430 CK73HBB1H102K CHIP C 1000PF K
C333 CC73GCH1H470J CHIP C 47PF J A,B,C,D,E C433 CK73HBB1A104K CHIP C 0.1UF K
C334 CC73GCH1H220J CHIP C 22PF J A,B,C,D,E C434 CK73GBB1H102K CHIP C 1000PF K
C335 C93-0554-05 CHIP C 4PF C F C435 CK73GB1H221K CHIP C 220PF K
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M
6 D:TK-7360H M E:TK-7360 M2 F:TK-7360 E
TK-7360/7360H/7360H (V)
PARTS LIST
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C436 CK73GB1H471K CHIP C 470PF K C555 CK73HBB1E103K CHIP C 0.01UF K
C437 CC73GCH1H220J CHIP C 22PF J C556 CK73HBB1H102K CHIP C 1000PF K
C438 CK73GBB1H102K CHIP C 1000PF K C557 CK73GB1H471K CHIP C 470PF K
C439 CC73GCH1H470J CHIP C 47PF J C558 CK73HBB1H102K CHIP C 1000PF K
C440 CC73GCH1H270J CHIP C 27PF J F C559 CK73HBB1E103K CHIP C 0.01UF K
C443 CK73GBB1H102K CHIP C 1000PF K C560 CK73HBB1H102K CHIP C 1000PF K
C444 CK73HB1A334K CHIP C 0.33UF K C561 CC73HCH1H220J CHIP C 22PF J
C446 CK73GB1H471K CHIP C 470PF K C562 CK73HBB1H102K CHIP C 1000PF K
C447 CK73GB1H221K CHIP C 220PF K C563 CK73HBB1H471K CHIP C 470PF K
C448 CK73GBB1H102K CHIP C 1000PF K C570 CC73HCH1H010B CHIP C 1.0PF B
C449 CK73HBB1H102K CHIP C 1000PF K C571 CC73HCH1H560J CHIP C 56PF J
C500 CC73HCH1H470J CHIP C 47PF J C572 CC73HCH1H040B CHIP C 4.0PF B
C502 CC73HCH1H101J CHIP C 100PF J C573 CK73HBB1H102K CHIP C 1000PF K
C574 CC73HCH1H010B CHIP C 1.0PF B F
C504 CK73HBB1E103K CHIP C 0.01UF K C574 CC73HCH1H1R5B CHIP C 1.5PF B A,B,C,D,E
C505 CC73HCH1H470J CHIP C 47PF J C575 CC73HCH1H330J CHIP C 33PF J F
C506 CC73HCH1H160J CHIP C 16PF J C575 CC73HCH1H560J CHIP C 56PF J A,B,C,D,E
C508 CC73HCH1H270J CHIP C 27PF J C578 CC73HCH1H1R5B CHIP C 1.5PF B
C509 CK73HBB1E103K CHIP C 0.01UF K C579 CK73HBB1H102K CHIP C 1000PF K
C510 CK73HBB1A104K CHIP C 0.1UF K C580 CK73HBB1H471K CHIP C 470PF K
C511 CK73HBB1A104K CHIP C 0.1UF K C582 CK73HBB1A104K CHIP C 0.1UF K
C512 CK73HBB1A104K CHIP C 0.1UF K C583 CK73HBB1H102K CHIP C 1000PF K
C513 CK73HBB1A104K CHIP C 0.1UF K C585 CK73HBB1H102K CHIP C 1000PF K
C514 CK73HBB1A104K CHIP C 0.1UF K C586 CK73HBB1H471K CHIP C 470PF K
C515 CK73HBB1A104K CHIP C 0.1UF K C587 CK73HBB1H102K CHIP C 1000PF K
C517 CK73HBB1H102K CHIP C 1000PF K C588 CK73HBB1H471K CHIP C 470PF K
C518 CK73HBB1E103K CHIP C 0.01UF K C589 CK73HBB1H471K CHIP C 470PF K
C519 CK73HB1H221K CHIP C 220PF K A,B,C,D,E C590 CC73HCH1H020B CHIP C 2.0PF B
C519 CK73HB1H331K CHIP C 330PF K F C591 CC73GCH1H471J CHIP C 470PF J
C520 CK73FBB0J106K CHIP C 10UF K C592 CC73HCH1H560J CHIP C 56PF J
C521 CK73HB1H221K CHIP C 220PF K A,B,C,D,E C593 CC73HCH1H030B CHIP C 3.0PF B
C521 CK73HB1H331K CHIP C 330PF K F C594 CK73HBB1H102K CHIP C 1000PF K
C522 CK73HBB1A104K CHIP C 0.1UF K C595 CC73HCH1H030B CHIP C 3.0PF B
C523 CK73HBB1A104K CHIP C 0.1UF K C596 CC73HCH1H470J CHIP C 47PF J F
C524 CK73GBB1C104K CHIP C 0.1UF K C596 CC73HCH1H560J CHIP C 56PF J A,B,C,D,E
C525 CK73HBB1H102K CHIP C 1000PF K C597 CC73HCH1H020B CHIP C 2.0PF B A,B,C,D,E
C527 CK73HB1E562K CHIP C 5600PF K C597 CC73HCH1H030B CHIP C 3.0PF B F
C528 CC73HCH1H820J CHIP C 82PF J C598 CC73GCH1H240J CHIP C 24PF J
C529 CC73HCH1H100C CHIP C 10PF C A,B,C,D,E C600 CC73HCH1H040B CHIP C 4.0PF B
C529 CC73HCH1H330J CHIP C 33PF J F C601 CC73HCH1H070B CHIP C 7.0PF B
C530 CK73HBB1E103K CHIP C 0.01UF K C602 CC73HCH1H180J CHIP C 18PF J
C531 CK73HBB1A104K CHIP C 0.1UF K C605 CC73HCH1H080B CHIP C 8.0PF B
C532 CK73HBB1H471K CHIP C 470PF K C606 CC73HCH1H120J CHIP C 12PF J
C533 CK73HBB1A104K CHIP C 0.1UF K C607 CK73HBB1H471K CHIP C 470PF K
C535 CK73HBB1H102K CHIP C 1000PF K C700 CC73HCH1H101J CHIP C 100PF J
C537 CK73HBB1A104K CHIP C 0.1UF K F C701 CK73HBB1H102K CHIP C 1000PF K
C538 CK73HBB1H102K CHIP C 1000PF K C702 CK73HBB1H471K CHIP C 470PF K
C540 CK73HBB1H102K CHIP C 1000PF K C703 CK73HBB1H102K CHIP C 1000PF K
C541 CK73HBB1E103K CHIP C 0.01UF K C704 CK73HBB1H102K CHIP C 1000PF K
C542 CK73HBB1E103K CHIP C 0.01UF K C705 CK73HBB1H471K CHIP C 470PF K
C543 CK73HBB1E223K CHIP C 0.022UF K C706 CK73HBB1H102K CHIP C 1000PF K
C544 CC73HCH1H010B CHIP C 1.0PF B C707 CK73HBB1H471K CHIP C 470PF K
C545 CC73HCH1H180J CHIP C 18PF J C708 CK73HBB1H471K CHIP C 470PF K
C546 CC73HCH1H150J CHIP C 15PF J C709 CK73HBB1H102K CHIP C 1000PF K
C549 CK73HBB0J224K CHIP C 0.22UF K C710 CK73HBB1H471K CHIP C 470PF K
C550 CK73HBB1A104K CHIP C 0.1UF K C712 CK73HBB1H471K CHIP C 470PF K
C551 CK73HBB1E103K CHIP C 0.01UF K C714 CK73HBB1H471K CHIP C 470PF K
C552 CK73HBB1H102K CHIP C 1000PF K C716 CK73HBB1H471K CHIP C 470PF K
C553 CC73HCH1H150G CHIP C 15PF G C717 CK73HBB1H471K CHIP C 470PF K
C554 CC73HCH1H070B CHIP C 7.0PF B C718 CK73HBB1H471K CHIP C 470PF K
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M
D:TK-7360H M E:TK-7360 M2 F:TK-7360 E 7
TK-7360/7360H/7360H (V)
PARTS LIST
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C720 CK73HBB1H471K CHIP C 470PF K C801 CK73HBB1A104K CHIP C 0.1UF K
C722 CK73HBB1H471K CHIP C 470PF K C802 CK73HBB1E103K CHIP C 0.01UF K
C723 CK73HBB1H471K CHIP C 470PF K C803 CK73HXR0J105K CHIP C 1.0UF K
C724 CK73HBB1H471K CHIP C 470PF K A,B,C,D,E C804 CK73GB0J106K CHIP C 10UF K
C726 CK73HBB1H471K CHIP C 470PF K C807 CK73GBB1C104K CHIP C 0.1UF K
C728 CK73HBB1H471K CHIP C 470PF K C808 CK73GB1H471K CHIP C 470PF K
C730 CK73HBB1H471K CHIP C 470PF K C809 CK73HXR0J105K CHIP C 1.0UF K
C732 CK73HBB1H471K CHIP C 470PF K C810 CC73HCH1H101J CHIP C 100PF J
C734 CK73HBB1H471K CHIP C 470PF K C811 CK73FBB0J106K CHIP C 10UF K
C735 CK73HB1H221K CHIP C 220PF K C812 CK73HXR0J105K CHIP C 1.0UF K
C736 CK73HBB1H471K CHIP C 470PF K C813 CC73HCH1H101J CHIP C 100PF J
C738 CK73HBB1H471K CHIP C 470PF K C814 CK73HB0J475M CHIP C 4.7UF M A,B,C,D,E
C739 CC73HCH1H101J CHIP C 100PF J C814 CK73HXR0J105K CHIP C 1.0UF K F
C740 CK73HBB1H471K CHIP C 470PF K C815 CC73HCH1H151J CHIP C 150PF J
C742 CC73HCH1H470J CHIP C 47PF J C816 CK73HXR0J105K CHIP C 1.0UF K
C743 CC73HCH1H470J CHIP C 47PF J C818 CK73FBB0J106K CHIP C 10UF K
C744 CK73HBB1H471K CHIP C 470PF K C819 CK73HBB1E103K CHIP C 0.01UF K
C745 CC73HCH1H470J CHIP C 47PF J C820 CK73GBB1H104K CHIP C 0.1UF K
C746 CK73HBB1H471K CHIP C 470PF K C821 CK73GB0J106K CHIP C 10UF K
C747 CK73GBB1H102K CHIP C 1000PF K C822 CK73FB0J226M CHIP C 22UF M
C748 CK73GBB1A105K CHIP C 1.0UF K C823 CK73GBB1A105K CHIP C 1.0UF K
C749 CK73HXR0J105K CHIP C 1.0UF K C824 CK73HBB1H102K CHIP C 1000PF K
C752 CK73HXR0J105K CHIP C 1.0UF K C826 CK73HBB1A683K CHIP C 0.068UF K
C754 CK73GBB1H102K CHIP C 1000PF K C829 CK73HBB1H682K CHIP C 6800PF K
C755 CK73HXR0J105K CHIP C 1.0UF K C832 CK73GBB1H102K CHIP C 1000PF K
C756 CK73GBB1C104K CHIP C 0.1UF K C834 CK73HBB1H332K CHIP C 3300PF K
C758 CK73HBB1A104K CHIP C 0.1UF K C836 CK73HBB1E103K CHIP C 0.01UF K
C761 CK73HBB1H471K CHIP C 470PF K C838 CK73HBB1H471K CHIP C 470PF K
C762 CK73GB1E105K CHIP C 1.0UF K C839 CK73HBB1H471K CHIP C 470PF K
C763 CK73GB1E105K CHIP C 1.0UF K C840 CK73HBB1H471K CHIP C 470PF K
C764 CK73HBB1A104K CHIP C 0.1UF K C841 CK73HBB1H471K CHIP C 470PF K A,B,C,D,E
C765 CK73FBB0J106K CHIP C 10UF K C842 CK73GBB1H102K CHIP C 1000PF K
C766 CK73HBB1A104K CHIP C 0.1UF K C843 CK73HXR0J105K CHIP C 1.0UF K
C767 CK73GB1E105K CHIP C 1.0UF K C844 CK73HBB1H102K CHIP C 1000PF K
C768 CK73GB1E105K CHIP C 1.0UF K C848 CC73HCH1H150J CHIP C 15PF J
C769 CK73HBB1A104K CHIP C 0.1UF K C849 CC73HCH1H010B CHIP C 1.0PF B
C771 CC73HCH1H390J CHIP C 39PF J C851 CC73HCH1H150J CHIP C 15PF J
C772 CK73HBB1A104K CHIP C 0.1UF K F C852 CK73HBB1H102K CHIP C 1000PF K
C772 CK73HXR0J105K CHIP C 1.0UF K A,B,C,D,E C853 CK73HBB1A104K CHIP C 0.1UF K
C773 CK73HXR0J105K CHIP C 1.0UF K C854 CK73GBB1C104K CHIP C 0.1UF K
C774 CK73HBB1A104K CHIP C 0.1UF K C855 CK73GBB1H102K CHIP C 1000PF K
C775 CK73HBB1A104K CHIP C 0.1UF K C858 CK73HBB1H102K CHIP C 1000PF K
C777 CK73HBB1A104K CHIP C 0.1UF K C859 CK73HBB1H102K CHIP C 1000PF K
C778 CK73HXR0J105K CHIP C 1.0UF K C860 CK73HBB1H102K CHIP C 1000PF K
C779 CK73HBB1A104K CHIP C 0.1UF K C861 CK73HBB1H102K CHIP C 1000PF K
C780 CK73GXR0J475K CHIP C 4.7UF K C862 CK73GBB1A105K CHIP C 1.0UF K
C784 CK73HBB1A104K CHIP C 0.1UF K C863 CK73GBB1A105K CHIP C 1.0UF K
C785 CK73HBB1C333K CHIP C 0.033UF K C864 CK73HXR0J105K CHIP C 1.0UF K
C786 CC73HCH1H121J CHIP C 120PF J C865 CK73HXR0J105K CHIP C 1.0UF K
C788 CK73HBB1H102K CHIP C 1000PF K C866 CK73HB1A224K CHIP C 0.22UF K
C790 CK73GB0J106K CHIP C 10UF K C867 CK73GBB1C224K CHIP C 0.22UF K
C791 CK73HBB1A104K CHIP C 0.1UF K C869 CK73HBB1H102K CHIP C 1000PF K
C792 CC73HCH1H391J CHIP C 390PF J C871 CS77BA1C4R7M CHIP TNTL 4.7UF 16WV
C793 CK73HBB1H471K CHIP C 470PF K C872 CE32CL1C470M ELECTRO 47UF 16WV
C794 CK73HBB1A104K CHIP C 0.1UF K C873 CE32BM1C471M ELECTRO 470UF 16WV
C795 CK73HXR0J105K CHIP C 1.0UF K C874 CK73HBB1H102K CHIP C 1000PF K
C796 CK73HBB1E103K CHIP C 0.01UF K C875 CE32BM1C471M ELECTRO 470UF 16WV
C797 CK73HBB1A104K CHIP C 0.1UF K C876 CC73HCH1H220J CHIP C 22PF J
C799 CK73HBB1A104K CHIP C 0.1UF K C877 CC73HCH1H470J CHIP C 47PF J
C800 CK73HBB1A104K CHIP C 0.1UF K C880 CC73HCH1H101J CHIP C 100PF J
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M
8 D:TK-7360H M E:TK-7360 M2 F:TK-7360 E
TK-7360/7360H/7360H (V)
PARTS LIST
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
C881 CK73HBB1H102K CHIP C 1000PF K D303 L407CDB DIODE
C882 CC73HCH1H220J CHIP C 22PF J D304 L407CDB DIODE
C883 CK73HBB1H471K CHIP C 470PF K D305 HSB88AS-E DIODE A,B,D
C884 CC73HCH1H220J CHIP C 22PF J D305 RB706F-40 DIODE C,E,F
C885 CK73HBB1H102K CHIP C 1000PF K D306 HSB88AS-E DIODE A,B,D
C886 CK73HBB1A104K CHIP C 0.1UF K D306 RB706F-40 DIODE C,E,F
C887 CK73HBB1E103K CHIP C 0.01UF K D307 RKP350KV DIODE
C888 CK73HBB1H471K CHIP C 470PF K D308 RKP350KV DIODE
C889 CK73HBB1H471K CHIP C 470PF K D309 UDZW3.3(B) ZENER DIODE
C890 CC73HCH1H121J CHIP C 120PF J A,B,C,D,E D310 UDZW3.3(B) ZENER DIODE
C890 CC73HCH1H151J CHIP C 150PF J F D400 Z5W27V SURGE ABSORBER
C891 CK73HBB1A104K CHIP C 0.1UF K D500 MC2858-T111 DIODE
C893 CK73HBB1A104K CHIP C 0.1UF K D501 MC2858-T111 DIODE
C894 CK73HB1H103K CHIP C 0.01UF K D502 RB706F-40 DIODE
C895 CK73HBB1H102K CHIP C 1000PF K D504 1SV305F VARI CAP DIODE
C896 CK73HBB1E103K CHIP C 0.01UF K D505 1SV305F VARI CAP DIODE
C897 CK73HBB1H471K CHIP C 470PF K D506 1SV305F VARI CAP DIODE
C900 CC73HCH1H101J CHIP C 100PF J D507 1SV305F VARI CAP DIODE
C902 CC73HCH1H101J CHIP C 100PF J D700 DA2S101 DIODE
C903 CK73HB1H561K CHIP C 560PF K F D701 DA221 DIODE ARRAY
C904 CK73HB0J475M CHIP C 4.7UF M A,B,C,D,E D702 DA221 DIODE ARRAY
C905 CE32BM1C471M ELECTRO 470UF 16WV D703 DA221 DIODE ARRAY
C906 CK73HB1A393K CHIP C 0.039UF K D704 DA221 DIODE ARRAY
C907 CC73GCH1H121J CHIP C 120PF J F D705 DA221 DIODE ARRAY
C908 CK73HB1C105K CHIP C 1.0UF K D706 DA221 DIODE ARRAY
C909 CK73HBB1C104K CHIP C 0.1UF K D707 DA221 DIODE ARRAY
C910 CC73HCH1H331J CHIP C 330PF J D708 DA221 DIODE ARRAY
C911 CK73HB1C105K CHIP C 1.0UF K D709 DA221 DIODE ARRAY
CD500 L79-1866-05 DIGI TRANSISTOR D710 DA221 DIODE ARRAY
CF500 L72-0993-05 CERAMIC FILTER (450KHZ/WIDE) D711 DA221 DIODE ARRAY
CF501 L72-0959-05 CERAMIC FILTER (450KHZ) F D712 MC2858-T111 DIODE
CF501 L72-0999-05 CERAMIC FILTER (450KHZ/NARROW) A,B,C,D,E D713 1SS372F SCHOTTKY DIODE
CN700 E40-6361-05 PIN ASSY (26P) D715 UDZW18(B) ZENER DIODE
CN701 E40-6847-05 FLAT CABLE CONNECTOR D716 DA2S101 DIODE
CP700 RK74HA1J102J CHIP R 1K J 1/16W D717 GN1G DIODE
CP701 RK74HA1J102J CHIP R 1K J 1/16W F400 F53-0327-15 FUSE (4A)
CP702 RK74HA1J102J CHIP R 1K J 1/16W IC1 TC75S51FE(F) MOS-IC
CP703 RK74HA1J102J CHIP R 1K J 1/16W IC2 MB15E03SL-E1 MOS-IC
CP704 RK74HA1J101J CHIP-COM 100 J 1/16W IC3 BD7542FVM MOS-IC
D1 1SS389-F DIODE IC300 2B RA30H1317M123 MOS-IC C,E,F
D2 1SS390 DIODE IC300 2B RA60H1317M1A MOS-IC A,B,D
D3 1SS390 DIODE IC301 BA10358F MOS-IC
D4 1SS390 DIODE IC400 TA4809BF ANALOG IC
D6 SMV1220-079LF VARI CAP DIODE IC401 XC6221B332N-G MOS-IC
D7 SMV1220-079LF VARI CAP DIODE IC402 TA7805F-NQ MOS-IC
D8 SMV1220-079LF VARI CAP DIODE IC403 BD4740G MOS-IC
D9 SMV1220-079LF VARI CAP DIODE IC404 XC6120N302N-G MOS-IC
D10 1SV325F VARI CAP DIODE IC500 TA31136FNG MOS-IC
D11 1SV325F VARI CAP DIODE IC501 BA10358F MOS-IC
D12 1SV325F VARI CAP DIODE IC700 ADM202EARNZ MOS-IC
D13 1SV325F VARI CAP DIODE IC701 NJM2100V-ZB BIPOLAR IC
D14 1SV325F VARI CAP DIODE IC702 CD686AQ3 MOS-IC
D15 1SV325F VARI CAP DIODE IC703 XC6221B332N-G MOS-IC
D16 1SV278F VARI CAP DIODE IC704 F3650TDFBKEBA MCU IC
D17 RN141S DIODE IC705 M95512-RDW6TP ROM IC
D18 RN141S DIODE IC706 2A LA4631VC-XE ANALOG IC
D300 UDZW5.1B ZENER DIODE IC707 TC7S66FUF MOS-IC
D301 1SS355 DIODE IC708 TC4W53FUF MOS-IC
D302 1SS390 DIODE C,E,F IC709 NJM2746RB1-ZB ANALOG IC
D302 HSC277 DIODE A,B,D IC710 TC7W53FKF MOS-IC
A:TK-7360H K B:TK-7360H(V) K C:TK-7360 M If a part reference number is listed in a shaded box,
D:TK-7360H M E:TK-7360 M2 F:TK-7360 E 9
that part does not come with the PCB.
TK-7360/7360H/7360H (V)
PARTS LIST
TX-RX UNIT (XC1-168X-XX)
Ref. No. Address Parts No. Description Desti- Ref. No. Address Parts No. Description Desti-
nation nation
IC711 BD7542FVM MOS-IC L518 L41-5678-14 SMALL FIXED INDUCTOR (56NH)
J700 1B E58-0567-05 SUB SOCKET D L519 L41-5678-14 SMALL FIXED INDUCTOR (56NH)
J701 1B E1B-0001-00 3.5D PHONE JACK(EXT SP) L521 L40-6875-92 SMALL FIXED INDUCTOR (68NH)
L2 L41-1591-08 SMALL FIXED INDUCTOR (1.5UH) L522 L40-6875-57 SMALL FIXED INDUCTOR (68NH)
L3 L92-0442-05 CHIP FERRITE L700 LB73H0AV-003 CHIP FERRITE
L4 LK73H0AM10NJ MULTILAYER CHIP INDUCTOR(10NH) L701 LB73H0AV-003 CHIP FERRITE
L5 L40-6875-71 SMALL FIXED INDUCTOR (68NH) A,B,C,D,E L702 LB73G0BV-001 CHIP FERRITE
L5 LK73H0AM82NJ MULTILAYER CHIP INDUCTOR(82NH) F L704 LB73G0BV-001 CHIP FERRITE
L6 LK73H0AM22NJ MULTILAYER CHIP INDUCTOR(22NH) L706 LB73H0AV-001 CHIP FERRITE F
L7 LK73H0AM27NJ MULTILAYER CHIP INDUCTOR(27NH) L707 LB73H0AV-003 CHIP FERRITE
L9 LB73G0BV-001 CHIP FERRITE L708 LB73H0AV-003 CHIP FERRITE
L10 LK73G0AQ4R7K MULTILAYER CHIP INDUCTOR(4.7UH) L709 LB73H0AV-003 CHIP FERRITE
L12 LK73G0AQ4R7K MULTILAYER CHIP INDUCTOR(4.7UH) L710 LB73H0AV-003 CHIP FERRITE
L15 LB73H0AV-003 CHIP FERRITE L711 LB73H0AV-003 CHIP FERRITE
L16 LB73H0AV-003 CHIP FERRITE L712 LB73H0AV-003 CHIP FERRITE
L17 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH) Q1 KTC4075E(Y,GR) TRANSISTOR
L20 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH) Q2 LTC014EEBFS8 DIGI TRANSISTOR
L21 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH) Q3 2SC5108F/Y/ TRANSISTOR
L25 LK73G0AQ1R8K MULTILAYER CHIP INDUCTOR(1.8UH) Q4 RE1C001ZP FET
L27 LK73G0AQ100K MULTILAYER CHIP INDUCTOR(1.8UH) Q5 2SK1824-A FET A,B,C,D,E
L29 LB73G0BV-001 CHIP FERRITE Q5 2SK1830F FET F
L30 LK73G0AQ100K MULTILAYER CHIP INDUCTOR(1.8UH) Q6 MCH3914-H/7/ FET
L31 L41-1588-14 SMALL FIXED INDUCTOR (150NH) Q7 RE1C001ZP FET
L32 L41-1288-14 SMALL FIXED INDUCTOR (120NH) Q8 MCH3914-H/7/ FET
L33 L40-2702-86 SMALL FIXED INDUCTOR (27UH) Q10 KRX102U TRANSISTOR
L34 L40-2702-86 SMALL FIXED INDUCTOR (27UH) Q11 KTC4075E(Y,GR) TRANSISTOR
L38 L40-2702-86 SMALL FIXED INDUCTOR (27UH) Q12 2SC5108F/Y/ TRANSISTOR
L39 L40-2702-86 SMALL FIXED INDUCTOR (27UH) Q13 2SC5108F/Y/ TRANSISTOR
L40 LB73G0BV-001 CHIP FERRITE Q300 RD00HVS1-T113 FET
L41 L40-1085-71 SMALL FIXED INDUCTOR (100NH) Q400 LTC014EEBFS8 DIGI TRANSISTOR
L42 L40-1085-71 SMALL FIXED INDUCTOR (100NH) Q401 LTC014EEBFS8 DIGI TRANSISTOR
L300 LK73H0AM15NJ MULTILAYER CHIP INDUCTOR(15NH) Q402 2SB1694 TRANSISTOR
L301 LK73H0AM10NJ MULTILAYER CHIP INDUCTOR(10NH) Q403 2SB1694 TRANSISTOR
L302 LK73G0AF12NJ MULTILAYER CHIP INDUCTOR(12NH) A,B,D Q404 RE1C001ZP FET
L302 LK73G0AF18NJ MULTILAYER CHIP INDUCTOR(18NH) C,E,F Q405 RE1C001ZP FET
L303 L40-8265-92 SMALL FIXED INDUCTOR (8.2NH) A,B,D Q406 KTC4075E(Y,GR) TRANSISTOR
L303 LK73G0AF12NJ MULTILAYER CHIP INDUCTOR(12NH) C,E,F Q407 2SJ645 FET
L304 LK73G0AFR12J MULTILAYER CHIP INDUCTOR(120NH) Q500 2SC5108F/Y/ TRANSISTOR
L305 LK73G0AF15NJ MULTILAYER CHIP INDUCTOR(15NH) C,E Q502 LTA044EEBFS8 DIGI TRANSISTOR
L305 LK73G0AF18NJ MULTILAYER CHIP INDUCTOR(18NH) F Q503 LTC044EEBFS8 DIGI TRANSISTOR
L305 LK73G0AF47NJ MULTILAYER CHIP INDUCTOR(47NH) A,B,D Q504 2SC5108F/Y/ TRANSISTOR
L307 LB73Z0AF-001 CHIP FERRITE Q505 2SC2412K TRANSISTOR
L308 LB73Z0AF-001 CHIP FERRITE Q506 KTC4075E(Y,GR) TRANSISTOR
L309 LB73Z0AF-001 CHIP FERRITE Q5◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
