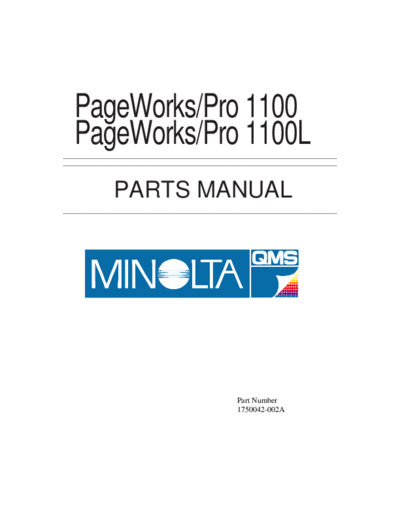

Image preview - the first page of the document



>> Download Konica Minolta QMS pagepro 1100 Parts Manual documenatation <<

Text preview - extract from the document

PageWorks/Pro 1100
PageWorks/Pro 1100L
   PARTS MANUAL




             Part Number
             1750042-002A
                                                                                                                                                                 PARTS MANUAL
                          PREFACE

    1.    The part numbers listed in Parts Manual are those which were assigned to the parts making up the machine at the time machine was originally introduced onto the mar-
          ket.


    2.    Parts whose INDEX numbers are shown white against a black background in the illustration are those to be used in only certain market areas. These part numbers are
          given in the lower half part of the list section. Check the SFIX No. listed in SFIX CHART on page II to find which part number is applicable to your own area.


    3.    Parts whose INDEX numbers are shown black against a white background in the illustration are those to be used in all market areas. These parts are listed on the upper
          half part of the list section.


    4.    If "NS" follows a part number given in the list section, it indicates that we do not keep a stock of the part. The part is not required for ordinary service jobs, either.


    5.    If "RP" is shown in the REC column of the list section, it indicates that the part is functionally important.


    6.    In the exploded views in this Parts Manual the parts (Screws & Washes, etc...) which are indicated with a "four-digit" numbers are listed in numerical order in the section
          "SCREWS AND WASHERS". Please check these "four-digit" numbers with the part numbers ("ten-digit" numbers) which should be used for ordering the part.


    7.    All part numbers consist of "ten-digit" which should all be quoted when ordering a part. The price of parts can be obtained by referring to the "Parts Price List" which is
          separately issued.


    8.    All infomation contained in this parts manual is subject to change.


    Trademark Acknowledgments
    PageProTM and PageWorksTM are trademarks of Minolta.
    Fine-ART, Fine Micro Toning and Minolta logo are trademarks of Minolta Co., Ltd.
    QMS and the QMS logo are registered trademarks of QMS, Inc.
    PCL is a registered trademark of Hewlett-Packard Company.
    Centronics is a registered trademark of Centronics Inc.
    MS-DOS, Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
    IBM is a registered trademark of International Business Machines Corporation.
    All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
