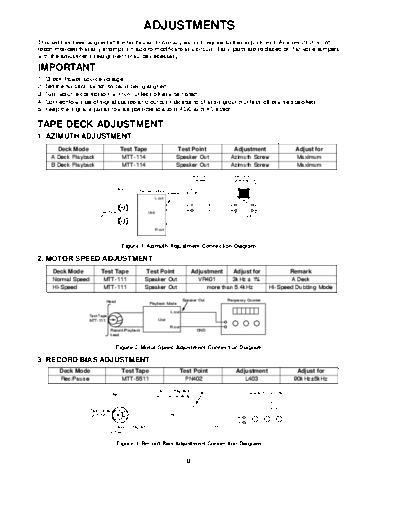

Image preview - the first page of the document



>> Download 360ADJ documenatation <<

Text preview - extract from the document

                                                  ADJUSTMENTS
This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not
recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tampers
with the adjustment, realignment may be necessary.

IMPORTANT
1. Check Power-source voltage.
2. Set the function switch to band being aligned.
3. Turn volume control to minimum unless otherwise noted.
4. Connect low side of signal source and output indicator to chassis ground unless otherwise specified.
5. Keep the signal input as low as possible to avoid AGC and AC action.

TAPE DECK ADJUSTMENT
1. AZIMUTH ADJUSTMENT
      Deck Mode                     Test Tape                          Test Point                    Adjustment                 Adjust for
    A Deck Playback                 MTT-114                           Speaker Out                   Azimuth Screw               Maximum
    B Deck Playback                 MTT-114                           Speaker Out                   Azimuth Screw               Maximum
                                                                                Electronic           Dual-trace
                                                                                Voltmeter            synchroscope

                                  Head
                                              Playback Mode
                                                                  Speaker Out
                                                          L out
                                      L ch                                                           CH1 CH2

                        Test Tape                  Unit
                        MTT-114      R ch                                                                  GND


                                                          R out



                                      Figure 1. Azimuth Adjustment Connection Diagram

2. MOTOR SPEED ADJUSTMENT
     Deck Mode           Test Tape                 Test Point                   Adjustment    Adjust for                      Remark
     Normal Speed        MTT-111                  Speaker Out                     VR401       3kHz
