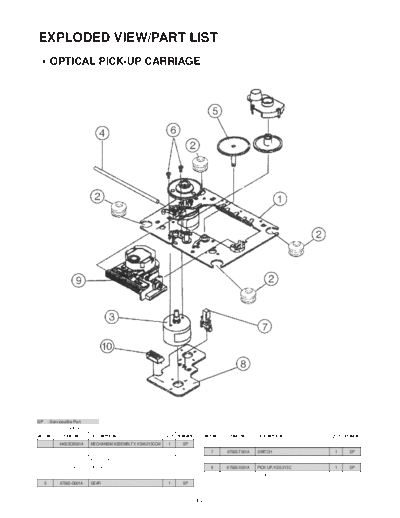

EXPLODED VIEW/PART LIST
OPTICAL PICK-UP CARRIAGE
SP : Serviceable Part
NSP : Not Serviceable Part
REF.NO. PART NO DESCRIPTION Q'TY REMARK REF.NO. PART NO DESCRIPTION Q'TY REMARK
4405SCB001A MECHANISM ASSEMBLTY, KSM-213CCM 1 SP 6 88S-0101 +P2 X 3 2 NSP
1 88S-0099 TT CHASSIS ASSY 1 NSP 7 6756S-T001A SWITCH 1 SP
2 88S-0089 INSULATORS(S) 4 NSP 8 88S-0098 MOTOR BASE(6P) 1 NSP
3 6756S-O001A MOTOR 1 NSP 9 6756S-X001A PICK-UP, KSS-213C 1 SP
4 88S-0088 SLIDE SHAFE(S) 1 NSP 10 88S0100 CONNECTOR 6P 1 NSP
5 6756S-G001A GEAR 1 SP
- 43 -
REPLACEMENT PARTS LIST
- 44 -
- 45 -
- 46 -
- 47 -
- 48 -
- 49 -
- 50 -
- 51 -
SPEAKER SYSTEM
MODEL: FE-8900E
SPECIFICATION
TYPE : BASS REFLEX 3 WAY 3 SPEAKER SYSTEM
SPEAKER SYSTEM : 160mm SPEEKER(6 1/2"), 60mm(2 1/4")TWEETER
20mm(4/5") PIEZO
FREQUENCY RANGE : 45Hz ~ 20,000Hz
IMPEDANCE : 6 ohm
S.P.L. : 87dB/W(1m)
RATED INPUT POWER : 100W
MAX. INPUT POWER : 200W
DIMENSION NET : 260(W) 470(H) 316(D)mm
SHIPPED : 597(W) 539(H) 365(D)mm
WEIGHT NET : 6.6kg
SHIPPED : 15kg
SCHEMATIC DIAGRAM
IN 160mm
WOOFER
2.2 , BP100V
2 60mm
TWEETER
PIEZO
- 52 -
EXPLODED VIEW/PARTS LIST
1
4
4 3
4
2
10
5
4
4 4
4 8
8
6
11
4
4
4
4
9
7
12
12
REF. NO. DESCRIPTION P/N Q'TY
1 NET ASSY 3700RM0012A 1
2 PANEL FRONT 3720RMF003A 1
3 GRILLE METAL 3530RMM003A 1
4 SCREW(3.5x16)FBK 353M050C 11
5 TWEETER 6400SCEB02G 1
6 WOOFER 6400SCEJ02F 1
7 WOOFER RING 4350RM0001A 1
8 SCREW(3x10)FBK 353M025C 2
9 CABINET ASSY 3091RMW006A 1
10 PIEZO 6400SCEY03A 1
11 FELT WOOFER 4766RM0001A 1
12 FELT DUCT 4766RM0001C 2
- 53 -
