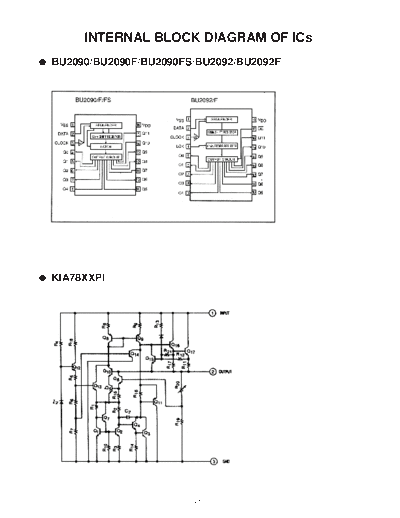

Image preview - the first page of the document
>> Download internal_block_diagram_of_ics documenatation <<
Text preview - extract from the document
INTERNAL BLOCK DIAGRAM OF ICs
BU2090/BU2090F/BU2090FS/BU2092/BU2092F
KIA78XXPI
- 26 -
KIA6289N
TDA7439
- 27 -
KIA4558P, KIA4558F KA8301
DRIVER
PRE LOGIC
1 2 3 4 5 6 7 8 9 10
Vout1
Vout2
Vcc1
Vcc2
GND
Vz1
Vz2
Rin
Fin
Vr
BA3126N
- 28 -
KA3010
28 27 26 25 24 23 22 21 20 19 18 17 16 15
BUY
BUY
10K
10K
LEVEL
SHIFT LEVEL
TSD SHIFT
REGULATOR
MUTE LEVEL
LEVEL SHIFT
10K
SHIFT
50K
10K
100K 50K
BUY
10K
1 2 3 4 5 6 7 8 9 10 11 12 13 14
PIN DESCRIPTION
Pin No. Symbol I/O Description
1 DO1.1 O DRIVE OUTPUT
2 DO1.2 O DRIVE OUTPUT
3 DI1.1 I DRIVE INPUT
4 DI1.2 I DRIVE INPUT
5 REG REGULATOR
6 REO O REGULATOR OUTPUT
7 MUTE MUTE
8 GND1 GROUND
9 DI2.1 I DRIVE INPUT
10 DI2.2 I DRIVE INPUT
11 DO2.1 O DRIVE OUTPUT
12 DO2.2 O DRIVE OUTPUT
13 GND2 GROUND
14 OPOUT O OPAMP OUTPUT
15 OPIN (-) I OPAMP OUTPUT (-)
16 OPIN (+) I OPAMP INPUT (+)
17 DO3.1 O DRIVE OUTPUT
18 DO3.2 O DRIVE OUTPUT
19 DI3.1 I DRIVE INPUT
20 DI3.2 I DRIVE INPUT
21 VCC1 SUPPLY VOLTAGE
22 VCC2 SUPPLY VOLTAGE
23 VREF 2.5V BIAS VOLTAGE
24 DI4.1 I DRIVE INPUT
25 DI4.2 I DRIVE INPUT
26 DO4.1 O DRIVE OUTPUT
27 DO4.2 O DRIVE OUTPUT
28 GND3 GROUND
- 29 -
KB9223
FGD
MLT
TZC
FE1
TE1
FE2
FLB
FS3
59 54 22 30 29 31 38 37 36 35 51 52 58 26 28 27 3
RF- 73 60 FDFCT
Focus Phase
RF Amp Micom Data
Compensation 47 FE-
RFO 74 Interface Logic
& Offset cancel circuit
48 FEO
PD1 65
57 TDFCT
PD2 66 Focus Error Amp
FE-BIAS Adjustment
63 49 TE-
Tracking Phase 50 TEO
F 67 Compensation Block
Tracking Error Amp
& Jump Pulse GEN. 53 TE2
E 68 E/F Balance & Gain
Control 55 LPFT
EI 79 MICOM TO SERVO CONTROL
AUTO SEQUENCER 62 TG2
PD 69 61 TGU
LDON
APC Amp
LD 70 43 SLO
ADJUSTMENT-FREE CONTROL Sled Servo Amplifier 44 SL-
VR 71 Center Voltage Amp. & Sled Kick GEN.
42 SL+
78 46 SPDLO
RF Level AGC
ARF 76 & FS1 to TM1 to BAL1 to PS1 to GA1 to 45 SPDL-
Spindle Servo LPF
Equalizer FS4 TM6 BAL5 PS4 GA5
IRF 75 (Double Speed) 23 SMPD
24 SMON
ASY 32
EFM 25 SMEF
EFM 33 Comparator
6 FSET
RFI 77
MIRROR DETECTION 39 MIRROR
CIRCUIT 1 MCP
DCB 2 Built-in Post Filter Amp(L&R)
Defect Detection
FOK DETECTION
CircuitT 40 FOK
4 CIRCUIT
5 15 16 13 14 19 17 12 11 9 10
DCC1
GC1O
GC1I
CH1O
CH1I
MUTEI
RRC
CH2O
CH2I
GC2I
GC2O
PIN DESCRIPTION
Pin No. System Description
1 MCP Capacitor connection pin for mirror hold
2 DCB Capacitor connection pin for defect Bottom hold
3 FRSH. Capacitor connection pin for time constant to generate focus search waveform
4 DCC2 The input pin through capacitor of defect bottom hold output
5 DCC1 The output pin of defect bottom hold
6 FSET The peak frequency setting pin for focus, tracking servo and cut off frequency of CLV LPF
7 VDDA Analog VCC for servo part
8 VCCP VCC for post filter
9 GC2I Amplifier negative input pin for gain and low pass filtering of DAC output CH2
10 GC2O Amplifier output pin for gain and low pass filtering of DAC output CH2
11 CH2I The input pin for post filter channel2
12 CH2O The output pin for post filter channel2
13 CH1O The output pin for post filter channl1
14 CH1I The input pin for post filter channel1
15 GC1O Amplifier output pin for gain and low pass filtering of DAC output CH1
- 30 -
Pin No. System Description
16 GC1I Amplifier negative input pin for gain and low pass filtering of DAC output CH1
17 RRC The pin for noise reduction of post filter bias
18 VSSP VSS for post filter
19 MUTEI The input pin for post filter muting control
20 ISET The input pin for current setting of focus search, track jump and sled kick voltage
21 VREG The output pin of regulator
22 WDCK The clock input pin for auto sequence
23 SMDP The input pin of CLV control output pin SMDP of DSP
24 SMON The input pin for spindle servo ON through SMON of DSP
25 SMEF The input pin of provide for an external LPF time constant
26 FLB Capacitor connection pin to perform rising low bandwidth of focus loop
27 FS3 The pin for high frequency gain change of focus loop with internal FS3 switch
28 FGD Reducing high freqency gain with capacitor between FS3 pin
29 LOCK Sled runaway prevention pin
30 TRCNT Track count output pin
31 ISTAT Internal status output pin
32 ASY The input pin for asymmetry control
33 EFM EFM comparator output pin
34 VSSA Analog VSS for servo part
35 MCK Micom clock input pin
36 MDATA Micom data input pin
37 MLT Micom data latch input pin
38 RESET Reset input pin
39 MIRROR The mirror output for test
40 FOK The output pin of focus OK comparator
41 SSTOP The pin for detection whether pick_up position is innermost or not
42 SL+ The noninverting input pin of sled servo amplifier
43 SLO The output pin of sled servo amplifier
44 SL- The inverting input pin of sled servo amplifier
45 SPDL- The noninverting input pin of spindle servo amplifier
46 SPDLO The output pin of spindle servo amplifier
47 FE- The inverting input pin of focus servo amplifier
48 FEO The output pin of focus servo amplifier
49 TE- The inverting input pin of tracking servo amplifier
50 TEO The output pin of tracking servo amplifier
51 ATSC The input pin for Anti-shock detection
52 TZC The comaparator input pin for tracking zero crossing detection
53 TE2 Tracking servo input pin
54 TE1 Tracking error amplifier output pin
55 LPFT The input pin of tracking error low pass filtering signal
56 DVDD The power supply pin for logic circuit
57 TDFCT The capacitor connection pin for tracking defect compensation
58 FE2 Focus servo input pin
59 FE1 Focus error amplifier output pin
60 FDFCT The capacitor connection pin for focus defect compensation
61 TGU The capacitor connection pin for high frequency tracking gain switch
62 TG2 The pin for high frequency gain change of tracking servo loop with internal TG2 switch
63 FEBIAS Focus error bias voltage control pin
64 DVEE The DVEE pin for logic circuit
65 PD1 The negative input pin of RF I/V amplifier1 (A+C signal)
66 PD2 The negative input pin of RF I/V amplifier2 (B+D signal)
67 F The negative input pin of F I/V amplifier (F signal)
68 E The negative input pin of E I/V amplifier (E signal)
69 PD The input pin for APC
70 LD The output pin for APC
71 VR The output pin of (AVEE+AVCC)/2 voltage
72 VCC VCC for RF part
73 RF- RF summing amplifier inverting input pin
74 RFO RF summing amplifier output pin
75 IRF The input pin for AGC
76 ARF The output pin for AGC
77 RFI The input pin for EFM comparating
78 CAGC The capacitor connection pin for AGC
79 EI Feedback input pin of E I/V amplifier for EF Balance control
80 GND GND for RF part
- 31 -
KS9286
SBCK
SDAT
S0S1
26
32
33
SUBCODE SUBCODE SUBCODE-Q 30 SQDT
SYNC OUTPUT REGISTER 29 SQCK
DETECTOR
EFM 23BIT EFM
EFMI 66 PHASE SHIFT DEMODULATOR
DETECTOR REGISTER
8BIT DATA BUS
CNTVOL 5
DIGITAL ADDRESS
DPFIN 3 PLL GENERATOR
FRAME SYNC
DPFOUT 4 DETECTOR
PROTECTOR
DPDO 2
INSERTOR 16K
SMEF 72 SRAM
DIGITAL
SMON 73
SMDP 75
CLV
SMSD 76
SERVO
LOCK 70 ECC
X-TAL
XOUT 9
TIMING
XIN 8 GENERATOR INTERPOLATOR
11 LRCHO
12 ADATAO
37
14 BCKO
MDAT
MCK 38 CPU TRACK
INTERFACE COUNTER 77 BCKI
MLT 36 DIGITAL
67 ADATAI
FILTER LRCHI
TRCNT 69 60
& DE-EMPH
/ISTAT 68 24 EMPH
MODE DIGITAL D/A 17 VREFL1
SELECTOR OUTPUT CONVERTER 22 VREFH1
61
62
63
65
19
20
7
XTALSEL
TEST0
CDROM
TEST1
DATX
RCHOUT
LCHOUT
PIN DESCRIPTION
Pin No. Symbol IO Description
1 AVDD1 - Analog VCC1
2 DPDO O Charge pump output for Digital PLL
3 DPFIN I Filter input for Digital PLL
4 DPFOUT O Filter output for Digital PLL
5 CNTVOL I VCO control voltage for Digital PLL
6 AVSS1 - Analog Ground1
7 DATX O Digital Audio output data
8 XIN I X tal oscillator input
9 XOUT O X tal oscillator output
10 WDCHO O Word clock output of 48bit/Slot (88.2KHz)
11 LRCHO O Channel clock output of 48 bit/Slot (44.1KHz), 88.2KHz when ESP ON
12 ADATAO O Serial audio data output of 48 bit/Slot (MSB first), double speed output when ESP ON
13 DVSS1 - Digital Ground1
14 BCKO O Audio data bit clock output of 48 bit/Slot (2.1168MHz), 4.2336MHz when ESP ON
15 C2PO O C2 Pointer for output audio data
16 VREFL2 I Input terminal2 of reference voltage L (Floating)
- 32 -
Pin No. Symbol IO Description
17 VREFL1 I Input terminal1 of reference voltage L (GND connection)
18 AVDD2 - Analog VCC2
19 RCHOUT O Right-Channel audio output through D/A converter
20 LCHOUT O Left-Channel audio output through D/A converter
21 AVSS2 - Analog ground2
22 VREFH1 I Input terminal1 of reference voltage H (VDD connection)
23 VREFH2 I Input terminal2 of reference voltage H (Floating)
24 EMPH O Emphasis/Non-Emphasis output, H: Emphasis ON, L: Emphasis OFF
25 LKFS O The Lock Status output of frame sync
26 S0S1 O Output of subcode sync signal (S0+S1)
27 RESET I System reset at L
28 /ESP I ESP function ON/OFF control ( L : ESP function ON, H : ESP function OFF)
29 SQCK I Clock for output Subcode-Q data
30 SQDT O Serial output of Subcode-Q data
31 SQOK O The CRC (Cycle Redundancy Check) check result signal output of Subcode-Q
32 SBCK I Clock for output subcode data
33 SDAT O Subcode serial data output
34 DVDD1 - Digital VDD1
35 MUTE I Mute control input ( H : Mute ON)
36 MLT I Latch Signal Input from Micom (Scmit Trigger)
37 MDAT I Signal data input from Micom (Scmit Trigger)
38 MCK I Signal clock Input from Micom (Scmit Trigger)
39 DB8 I/O SRAM data I/O port 8 (MSB)
40 DB7 I/O SRAM data I/O port 7
41 DB6 I/O SRAM data I/O port 6
42 DB5 I/O SRAM data I/O port 5
43 DB4 I/O SRAM data I/O port 4
44 DB3 I/O SRAM data I/O port 3
45 DB2 I/O SRAM data I/O port 2
46 DB1 I/O SRAM data I/O port 1 (LSB)
47 C1F1 I/O Monitoring output for C1 error correction (RA1)
48 C1F2 I/O Monitoring output for C1 error correction (RA2)
49 C2F1 I/O Monitoring output for C2 error correction (RA3)
50 C2F2 I/O Monitoring output for C2 error correction (RA4)
51 C2FL I/O C2 decoder flag (RA5, H : When one processing C2 code is impossible correction status.)
52 /PBCK I/O Output of VCO/2 (4.3218MHz) (RA6)
53 DVSS2 I/O Digital ground 2
54 FSDW I/O Window or unprotected frame sync (RA7)
55 ULKFS I/O Frame sync protection state (RA8)
