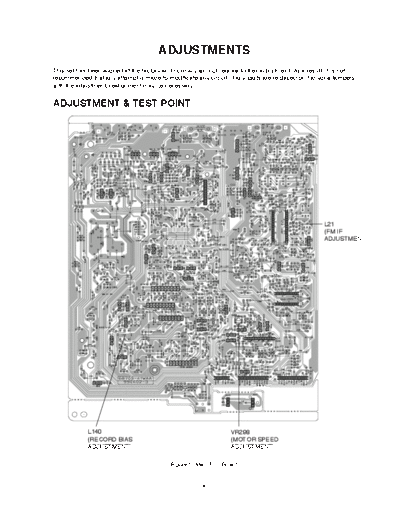

                                       ADJUSTMENTS
This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not
recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tampers
with the adjustment, realignment may be necessary.


ADJUSTMENT & TEST POINT




                                                                                                     L21
                                                                                                     (FM IF
                                                                                                     ADJUSTMENT)




             L140                                                 VR298
             (RECORD BIAS                                         (MOTOR SPEED
             ADJUSTMENT)                                          ADJUSTMENT)

                                            Figure 1. Main P.C. Board


                                                      -8-
TUNER ADJUSTMENT
              Item                      Test Point                               Adjustment                       Adjust for
        DC Voltage                    IC102          ,      pin                         L21                       0V   50mV

                                                                                                                       Electronic
                                                         FM Antenna                                                    OSCILLOSCOPE
                                                         Terminal
   Signal Generator
                                                                                              26 , 28 PIN


                                                                              Unit


                                                    GND
                             Figure 2. Tuner(S curve) Adjustment Connection Diagram


TAPE DECK ADJUSTMENT
1. AZIMUTH ADJUSTMENT

  Deck Mode Test Tape            Test Point           Adjustment              Adjust for                    Remark
                                  Speaker                                                      Forward:Righthand Side Screw
   Playback      MTT-114                              Head Screw            R/L Maximum
                                  Terminal                                                     Reverse:Lefthand Side Screw

                                                                           Electronic              Dual-trace
                                                                           Voltmeter               synchroscope

                      Head                                    Speaker
                                    Playback Mode
                                                              Terminal
                                                   L out
                          L ch                                                                     CH1 CH2

              Test Tape                     Unit
              MTT-114     R ch                                                                              GND


                                                   R out


                                 Figure 3. Azimuth Adjustment Connection Diagram


2. MOTOR SPEED ADJUSTMENT

  Deck Mode Test Tape            Test Point           Adjustment              Adjust for                    Remark
                                  Speaker               VR298                                 After adjusting in forward, confirm
   Playback      MTT-111                                                    3kHz 45Hz
                                  Terminal            (MAIN PWB)                              the specification in reverse mode.


                      Head                                                Speaker Terminal       Frequency Counter
                                                   Playback Mode

                                                                  L out
              Test Tape
              MTT-111                                      Unit
                                                                  R out
                          Record/Playback                                        GND
                          Head


                              Figure 4. Motor Speed Adjustment Connection Diagram


                                                                   -9-
3. RECORD BIAS ADJUSTMENT

     Deck Mode            Test Tape              Test Point            Adjustment                Adjust for
      Rec/Pause           MTT-5511             Erase Head Wire             L140                 86kHz
