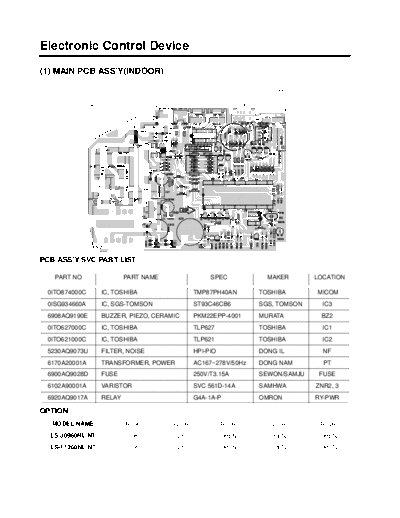

A30008~6


>> Download A30008~6 documenatation <<

Text preview - extract from the document
Electronic Control Device
(1) MAIN PCB ASS'Y(INDOOR)




PCB ASS'Y SVC PART LIST

   PART NO                PART NAME                SPEC          MAKER       LOCATION

 0ITO874000C      IC, TOSHIBA                TMP87PH40AN       TOSHIBA       MICOM
 0ISG934660A      IC, SGS-TOMSON             ST93C46CB6        SGS, TOMSON     IC3
 6908AQ9190E      BUZZER, PIEZO, CERAMIC     PKM22EPP-4001     MURATA         BZ2
 0ITO627000C      IC, TOSHIBA                TLP627            TOSHIBA         IC1
 0ITO621000C      IC, TOSHIBA                TLP621            TOSHIBA         IC2
 5230AQ9073U      FILTER, NOISE              HPI-PIO           DONG IL         NF
 6170A20001A      TRANSFORMER, POWER         AC167~278V/50Hz   DONG NAM        PT
 6900AQ9028D      FUSE                       250V/T3.15A       SEWON/SAMJU    FUSE
 6102A90001A      VARISTOR                   SVC 561D-14A      SAMHWA        ZNR2, 3
 6920AQ9017A      RELAY                      G4A-1A-P          OMRON         RY-PWR

OPTION
  MODEL NAME              R10H        R11H             R12H      R13H         R14H
  LS-J0960NL/NT            39K         2K              OPEN      OPEN         OPEN
  LS-F1260NL/NT            27K         2K              OPEN      OPEN         OPEN


                                            -61-
(2) MAIN PCB ASS'Y(OUTDOOR)




PCB ASS'Y SVC PART LIST

   PART NO             PART NAME               SPEC        MAKER     LOCATION

 0ITO884900C     IC, TOSHIBA            TMP88PS49N       TOSHIBA      MICOM
 6200A90001C     FILTER, NOISE          18mH             SANGSHIN     NFO1J
 6171AQ3487A     TRANSFORMER ASS'Y      CT               DONGNAM       CT
 6171A20002A     TRANSFORMER, SMPS      EER2828          SUNGMOON     SMPS
 0CE4771V610     CAPACITOR, ELET        470
