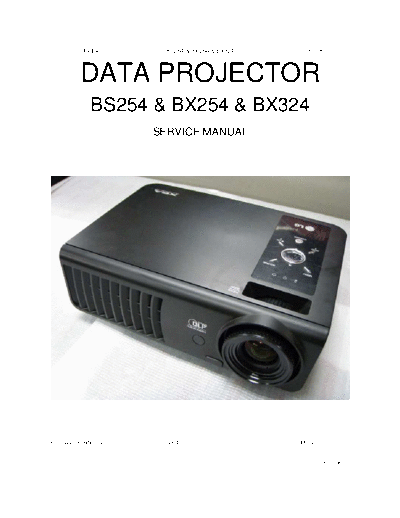

Image preview - the first page of the document

>> Download Projetor+LG_BS254_BX254_BX324 documenatation <<

Text preview - extract from the document

Delta Elec. Inc. BS254 & BX254 & BX324 rev.06

DATA PROJECTOR
BS254 & BX254 & BX324
SERVICE MANUAL

Company Confidential LGE_______________________ Delta____________

1
2011/06/16
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06

CONTENTS

1.COMPLIANCE OF SAFE REPAIR.........................................................................................4
1-1.Caution During Disassembling And Assembling.............................................................4
1-2.Lamp.............................................................................................................................. 4
1-3.Lens................................................................................................................................4
2.SPECIFICATIONS.................................................................................................................5
2-1.Summary Specifications................................................................................................. 5
2-2.I/O Ports Illustration........................................................................................................7
2-3.Top view-on screen Display (OSD) buttons and LEDS........................................... 8
2-4. Rear view..................................................................................................10
2-5. Bottom view...............................................................................................11
2-6. Remote Control Parts...................................................................................12
2-7. Inserting the Remote Control Batteries............................................................14
2-8. Block Diagram........................................................................................................... 15
3.TROUBLE SHOOTING....................................................................................................... 16
4.DISASSEMBLY AND ASSEMBLY....................................................................................... 24
5.Flash Upgrade Flow........................................................................................................... 37
5-1. Projector RS-232 Drivers Installation Guide......................................................37
5-2. DLP Projector Flash-Tool (firmware) User Guide................................................42
5-3. Started with Download..................................................................................43
5-4.Starting and Shutting down the Projector...........................................................49
5-5.Setting an Access Password (Security Lock)......................................................51
5-6.Factroy Reset.............................................................................................53
5-7. Status.......................................................................................................54
6. Calibration.......................................................................................................55
7. Color Border Adjustment....................................................................................59
8. Projection Lamp...............................................................................................60
9. Cleaning..........................................................................................................64
10.SERVICE NOTE............................................................................................................... 65
10-1.Cleaning..................................................................................................................... 65
10-2.Inserting the Remote Control Batteries...................................................................... 66
10-3.Power & READY LED Blink Code Message.............................................................. 67
10-4.Factory Preset Display Modes................................................................................... 68
Company Confidential LGE_______________________ Delta____________

2
2011/06/16
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
10-5.Projection Distance.....................................................................................70
11.EDID data ........................................................................................................................ 71
12.RS232...........................................................................................................75
13.Spare part list ....................................................................................................................84

Revision Description Date
rev.00 Preliminary 12/21/2009
rev.01 Updated the spare part list (Pg80), change 3392132902 to 3392132903;
01/20/2010
change 3534117300 to 3534117301
rev.02 Updated the spare part list (page85), add the speaker in the list 05/17/2010
rev.03 Page86, Item8 and item9, change the photo position 07/07/2010
Page84, Item9, change the part number from 3622403511 to 3622404311,
rev.04 12/01/2010
LG P/N no change.
Page84, item17, change the LVPS Board P/N from EBT61018601 to
rev.05 04/07/2011
EBT61018602
Page85, add two new items (DMD chip), one is COV30816101, and the
rev.06 6/16/2011
other is COV30816201, and updated the photos on the page87

Company Confidential LGE_______________________ Delta____________

3
2011/06/16
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06

1. COMPLIANCE OF SAFE REPAIR

Be sure to read this Service Manual before providing services. In the projector, full
consideration is taken to ensure safety for fire, electric shock, injury, harmful radiation, and
substance. Therefore, observe the notice described in this Service Manual so that safety is
kept when providing services. Moreover, be sure to observe the notice described in the
Instruction Manual.
Pay attention to the following items during service inspection.

1.1 Cautions during disassembling and assembling

1. This equipment contains parts under high voltage. When making repairs, etc.
Be sure to pull out the power plug beforehand to insure safety.
2. Parts may be very hot immediately after use.
Make sure the equipment has cooled off sufficiently before carrying out repairs.
3. Make sure that parts and screws and wiring, etc. are returned to their original positions.
Tube, tape and other insulation materials have been used for safety reasons.
The internal wiring has been designed to avoid direct contact with hot parts or parts under
high voltage when using clamps or other tools.
4. The parts used in this device have special safety features such as flame-resistance and
anti-voltage properties. When replacing parts, always use parts supplied from the factory.
5. After finishing operations make sure that all parts and wires have been returned to their
original position and that there has been no deterioration of the area around the location that
was worked on.
6. Be sure to use a grounding strap (wrist band) during repair and inspection.

1.2 Lamp

During current conduction, the lamp is in the high-temperature state. In this case, pay
careful attention because a high voltage is used. When replacing a lamp, replace it after
confirming that the lamp has gotten cold sufficiently.

1.3 Lens

Company Confidential LGE_______________________ Delta____________

4
2011/06/16
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Do not look into a lens during projection. This damages your eyes.
2. Specifications
2-1. Summary Specifications
Model BS254 BX254 BX324

Display type TI DMD 0.55-inch SVGA TI DMD 0.55-inch XGA

Resolution SVGA 800x600 Native XGA 1024x768 Native

Projection distance 1 meters ~ 10 meters

Projection screen size 36 to 243 inch (can overdrive 300")

Projection lens Manual focus / Manual zoom

Zoom ratio 1.1

Vertical keystone
+/- 15 degrees
correction

Projection methods Front, Rear, Desktop/Ceiling (Rear, Front)

Data compatibility IBM PC or compatibles (VGA, SVGA, XGA, SXGA, UXGA), Mac

SDTV/EDTV/ HDTV 480i, 576i, 480p, 576p, 720p, 1080i, 1080p

Video compatibility NTSC, PAL , SECAM

H-Sync 15, 30
