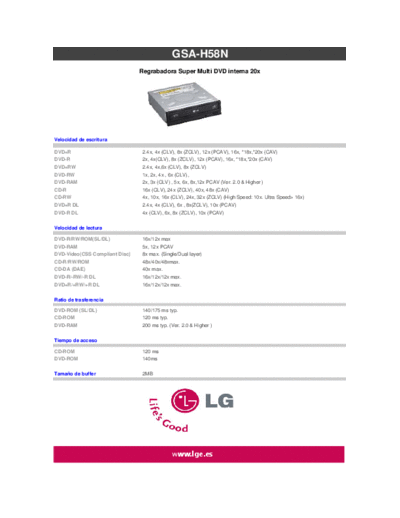

Image preview - the first page of the document
LG GSA-H58N


>> Download LG GSA-H58N documenatation <<

Text preview - extract from the document
                                               GSA-H58N
                                Regrabadora Super Multi DVD interna 20x




Velocidad de escritura

DVD+R                            2.4x, 4x (CLV), 8x (ZCLV), 12x (PCAV), 16x, *18x,*20x (CAV)
DVD-R                            2x, 4x(CLV), 8x (ZCLV), 12x (PCAV), 16x, *18x,*20x (CAV)
DVD+RW                           2.4x, 4x,6x (CLV), 8x (ZCLV)
DVD-RW                           1x, 2x, 4x , 6x (CLV),
DVD-RAM                          2x, 3x (CLV) , 5x, 6x, 8x,12x PCAV (Ver. 2.0 & Higher )
CD-R                             16x (CLV), 24x (ZCLV), 40x, 48x (CAV)
CD-RW                            4x, 10x, 16x (CLV), 24x, 32x (ZCLV) (High Speed: 10x. Ultra Speed> 16x)
DVD+R DL                         2.4x, 4x (CLV), 6x , 8x(ZCLV), 10x (PCAV)
DVD-R DL                         4x (CLV), 6x, 8x (ZCLV), 10x (PCAV)


Velocidad de lectura

DVD-R/RW/ROM(SL/DL)              16x/12x max
DVD-RAM                          5x, 12x PCAV
DVD-Video(CSS Compliant Disc)    8x max. (Single/Dual layer)
CD-R/RW/ROM                      48x/40x/48xmax.
CD-DA (DAE)                      40x max.
DVD-R/-RW/-R DL                  16x/12x/12x max.
DVD+R/+RW/+R DL                  16x/12x/12x max.


Ratio de trasferencia

DVD-ROM (SL/DL)                  140/175 ms typ.
CD-ROM                           120 ms typ.
DVD-RAM                          200 ms typ. (Ver. 2.0 & Higher )


Tiempo de acceso

CD-ROM                           120 ms
DVD-ROM                          140ms


Tama
