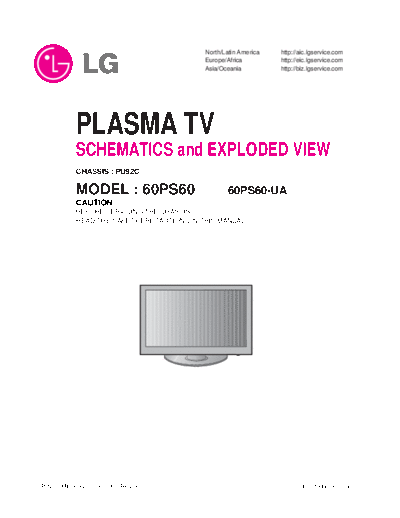

Image preview - the first page of the document
>> Download 60PS60 documenatation <<
Text preview - extract from the document
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
PLASMA TV
SCHEMATICS and EXPLODED VIEW
CHASSIS : PU92C
MODEL : 60PS60 60PS60-UA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL60621703 (0905-REV00) Printed in Korea
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
400
601
520
602
603
208
900
901
204
200
250
A10
240
590
501
303
902
301
304
580
201
300
205
206
207
120
LV1
305
203
202
540
A2
302
306
570
560
330
310
- 49 - LGE Internal Use Only
60PS60 EXPLODED VIEW PARTS LIST
ITEM PART No DESCRIPTION
120 EAB42609902 G1640502 ND 10W 8OHM 82DB 100HZ 150X40
200 EAJ39979309 PDP60H30001.ASLGB FULLHD 60INCH 1920X1080 16/9
200 EAJ39979316 PDP60H30111.ASLGB FULLHD 60INCH 1920X1080 16/9
201 EBR55609201 Control (Logic) board
202 EBR54657501 Y-Drive (Upper)
203 EBR54658201 Y-Drive (Lower)
204 EBR51552101 X-Board (Right)
205 EBR51552301 X-Board (Center)
206 EBR51552201 X-Board (Left)
207 EBR55492901 Y-SUS Board
208 EBR55492601 Z-SUS Board
240 MJH56773002 Supporter Assembly Vertical Top
250 MJH56773102 Supporter Assembly Vertical Bottom
300 ABJ67562719 Cabinet Assembly Ft Frame
301 AJJ67565602 Supporter Filter Top Assembly
302 AJJ67565802 Supporter Filter Left Side Assembly
303 AJJ67565902 Supporter Filter Right Side Assembly
304 AJJ67565702 Supporter Filter Bottom Assembly
305 MDJ57888008 Front Glass Filter
306 ABA67565002 Bracket Assy.
310 MBG56880202 7 Key Button
330 MBG56880301 Power Button Assembly
400 ACQ67566309 Back Cover
501 AJJ72910003 Stand Supporter
520 EBR58969202 Main Board Mstar PU92C
520 EBR58969220 Main Board Mstar PU92C
540 EBT60704501 LED Assembly
560 EBT60692805 Control Key Mold
580 EAY59547001 Power Supply Board 489W
580 EAY59547002 Power Supply Board
580 EAY60705001 Power Supply Board
570 EBR60009901 Intelligent and IR Sensor board (LED & P/SW)
571 MBG40265501 Power Button Assembly
590 EAM60352504 AC Line Filter
601 ABA66370518 Bracket (Side AV)
602 MGJ56878807 Bracket (Main Right Side)
603 MGJ56880404 Bracket (Main Left Side)
900 AAN67566409 Stand
901 AAN33240128 Stand Swivel
902 MJH56773502 Stand Vert Support
A10 MGJ41163824 Stand Screw (D 4.mm L 14.mm)
A2 MKJ42519627 Remote Control Transmitter
LV1 EAD60679335 LVDS Cable
