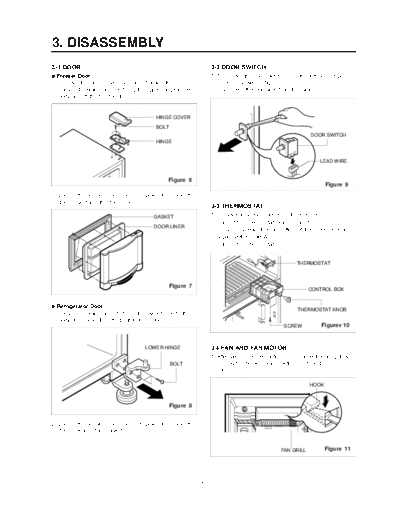

Image preview - the first page of the document



>> Download Disassembly(GR-462) documenatation <<

Text preview - extract from the document

3. DISASSEMBLY
3-1 DOOR                                                          3-2 DOOR SWITCH
q Freezer Door                                                    1. To remove the door switch, pull out it with a '--' type
1. Remove the hinge cover by pulling it upwards.                     driver as shown in (figure 9).
2. Loosen 4 hexagonal bolts fixing the upper hinge to the         2. Disconnect the lead wire from the switch.
   body and lift the freezer door.


                                          HINGE COVER
                                           BOLT
                                                                                                             DOOR SWITCH
                                           HINGE



                                                                                                                 LEAD WIRE


                                                Figure 6
                                                                                                                    Figure 9
3. Loosen the screws inside the door gasket to remove the
   door gasket and the door liner.
                                                                  3-3 THERMOSTAT
                                          GASKET                  1. Remove all shelves placed in the Freezer.
                                                                  2. Pull out the Thermostat Dial. (Figure 10)
                                          DOOR LINER
                                                                  3. Loosen 2 screws fixed to bottom of the Thermostat and
                                                                     separate the Lead Wire.
                                                                  4. Pull out the Thermostat.


                                                                                                       THERMOSTAT



                                                Figure 7
                                                                                                            CONTROL BOX


q Refrigerator Door
                                                                                                       THERMOSTAT KNOB
1. Loosen 3 hexagonal bolts fixing the lower hinge to the
   body to remove the refrigerator door only.
                                                                                                 SCREW            Figurev 10



                                      LOWER HINGE                 3.4 FAN AND FAN MOTOR
                                                                  1. After taking out the control box, remove the fan grill by
                                                  BOLT               leaning the hook upwards with a '--' type driver and
                                                                     pulling it out.

                                                                                                             HOOK



                                                Figure 8


2. Loosen the screws inside the door gasket to remove the
   door liner and door gasket.


                                                                                                FAN GRILL           Figure 11




                                                            -6-
2. Pull out the shroud assembly.                                     3-7 LAMP
3. Loosen 2 screws holding fan motor bracket to remove
   the fan and fan motor assembly.
                                                                       FREEZER ROOM LAMP          REFRIGERATOR ROOM LAMP

                             FAN MOTOR




                                                FAN
                                     BRACKET
                                                                               Figure 16                     Figure 17

               SHROUD
                                              Figure 12              3-7-1 Freezer room lamp
                                                                     1. First, pull out quick freezing room shelf.
3-5 DEF' CONTROL ASM                                                 2. Insert quick freezing room door upwards, and support
                                                                        the bottom side of room lamp lid with your hand. Insert
Def control ASM consists of Defrost Thermostat and FUSE
