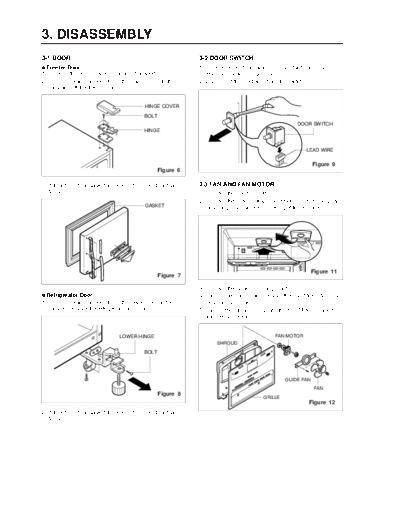

Image preview - the first page of the document



>> Download Disassembly(GR-642Q) documenatation <<

Text preview - extract from the document

3. DISASSEMBLY
3-1 DOOR                                                          3-2 DOOR SWITCH
q Freezer Door                                                    1. To remove the door switch, pull out it with a '--' type
1. Remove the hinge cover by pulling it upwards.                     driver as shown in (figure 9).
2. Loosen hexagonal bolts fixing the upper hinge to the           2. Disconnect the lead wire from the switch.
   body and lift the freezer door.


                                          HINGE COVER

                                          BOLT
                                                                                                             DOOR SWITCH
                                          HINGE



                                                                                                                 LEAD WIRE


                                                                                                                   Figure 9
                                                 Figure 6

3. Pull out the door gasket to remove from the door foam          3.3 FAN AND FAN MOTOR
   Ass'y.                                                         1. Remove the freezer shelf.
                                                                  2. Remove the Cover Lamp-F and Holder Cover Lamp by
                                          GASKET                     loosening 2 screw fixed to ceiling of Inner Case.




                                                                                                                   Figure 11
                                                 Figure 7

                                                                  3. Remove the Grille by pulling it out.
q Refrigerator Door                                               4. Pull out the Shroud and remove the Fan Motor Assy by
1. Loosen hexagonal bolts fixing the lower hinge to the              loosening 2 screws.
   body to remove the refrigerator door only.                     5. Pull out the fan and, separate the Fan Motor, Brackets
                                                                     and the Guide Fan.


                                LOWER HINGE                                                        FAN MOTOR
                                                                         SHROUD

                                          BOLT




                                                                                                       GUIDE FAN
                                                                                                                    FAN
                                                 Figure 8
                                                                                              GRILLE
                                                                                                                  Figure 12
2. Pull out the door gasket to remove from the door foam
   Ass'y.




                                                            -8-
3-4 DEF' CONTROL ASSY                                                3-5-1 Freezer room lamp
Def control Assy consists of Defrost Thermostat and FUSE
