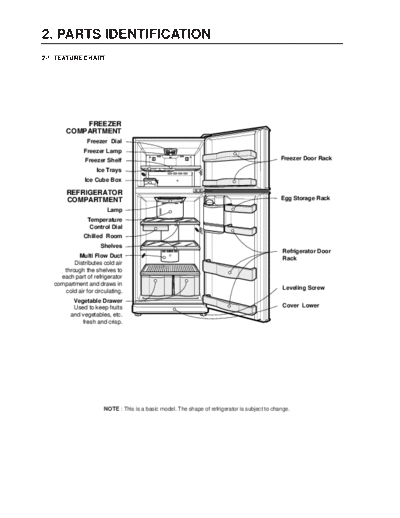

Image preview - the first page of the document
>> Download Identification(GR-642Q) documenatation <<
Text preview - extract from the document
2. PARTS IDENTIFICATION
2-1. FEATURE CHART
FREEZER
COMPARTMENT
Freezer Dial
Freezer Lamp
Freezer Shelf Freezer Door Rack
Ice Trays
Ice Cube Box
REFRIGERATOR
COMPARTMENT Egg Storage Rack
Lamp
Temperature
Control Dial
Chilled Room
Shelves
Refrigerator Door
Multi Flow Duct Rack
Distributes cold air
through the shelves to
each part of refrigerator
compartment and draws in
Leveling Screw
cold air for circulating.
Vegetable Drawer
Used to keep fruits Cover Lower
and vegetables, etc.
fresh and crisp.
NOTE : This is a basic model. The shape of refrigerator is subject to change.
-5-
2-2 WATER DISPENSER(OPTIONAL) q Putting The Water In The Water Tank
1. Turn the lock dial in the
q Features
direction of the arrow as
shown to remove it and
pour water into the
dispenser water tank.
DISPENSER
PAD
GRILLE 2. Close the cap by tilting it
and putting one side in first
and then the other side as
shown.
DRIP TRAY
TAB
3. Place the water tank in the
tank holder inside the
HOLE MOTOR
(INSIDE) refrigerator. Make sure that
the groove on the connecting
part is in position with the Tab
HOLDER RING
Groove
tab. Push the connecting part
into the hole until it "Clicks".
4. Fix the connecting part in
BOTTLE place by means of the
HOLDER holder ring as shown.
CONNECTING CAP
PART
LOCK DIAL CAUTION
1. Do not use anything other than water including soft
HANDLE drinks, milk and juices.
2. Hot water needs to be cooled before being put in the
WATER TANK water tank.
3. Always use the holder ring to fix the water tank in place
to prevent the tank from moving or getting loose.
WATER TANK
q Drinking
1 Press the dispenser pad
with the glass.
2 The water is released when
the dispenser pad is
pressed. The pad returns
to its original position when
the glass is removed, and
the water stops its flow.
NOTE
1. The lamp is lit when the dispenser pad is pressed
and the water is released. This makes it possible to
see the water level in the dark.
2. The motor rotates in reverse for a few seconds after
the dispenser is released to dispose of any water
remaining in the tubes. (This may cause the sound
of water being sucked back inside)
-6-
q Cleaning Water Tank
Grille and Drip Tray 1. Remove the cap.
1. Pull the drip tray out and
remove with the grille.
2. Dispose of the water in the
kitchen sink, wash the drip 2. Clean the inside and outside of the water tank with
tray and the grille with a dishwashing detergent and rinset horoughly under
mild detergent and rinse running water.
thoroughly.
Other Parts
Remove the cap and, clean the cap and connecting part
with a mild detergent and rinse thoroughly.
CAUTION
1. Use lukewarm water when cleaning.
2. Do not use anything other than water. If it is used with
soft drinks, put water in the water tank and discharge
three or four cups of water shortly.
-7-
